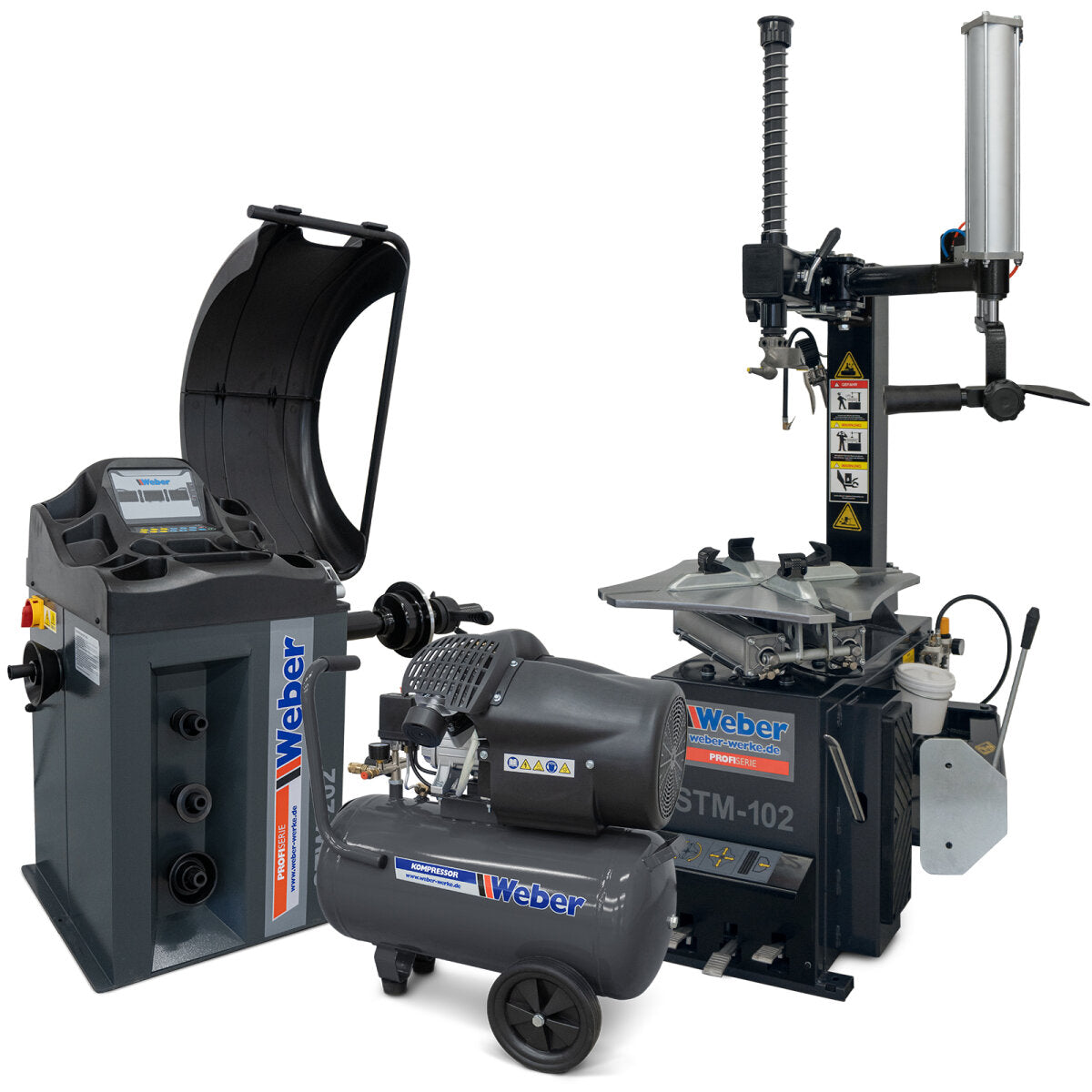

Weber Tire Machine STM-102 + Wheel Balancer STW-202 + Assist Arm + 50L Compressor - Complete Package
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Tire mounting machine for cars and light commercial vehicles
- side-swiveling mounting arm
- Eccentric clamping of the mounting head
- Ideal clamping range for cars and small vans (motorcycle adapter optional)
- Mounting head with receptacle for plastic protective elements to protect the rim
- Clamping jaws made of high-strength steel for securely clamping the rim from the inside and outside.
- Self-centering clamping plate for rims up to 24"
Wheel balancing machine for rims up to 24"
The microprocessor-controlled STW-202 wheel balancer impresses with its robust construction and proven technology. The balancer features a modern measuring arm for automatic acquisition of rim data. Additionally, the machine offers various balancing programs suitable for balancing car and motorcycle wheels.
- static and dynamic balancing
- 4 aluminum wheel programs, as well as a steel wheel program and a motorcycle program
- 2D – automatic transfer of rim data
- Automatic balancing process with wheel braking
- Integrated software for self-testing and calibration
- Optimization function for weight display <5 g
HP Classic R auxiliary mounting arm
- Auxiliary mounting arm on the right for mounting run-flat and low-profile tires
- Operation is via a joystick that controls a pneumatic cylinder.
- stable hold-down roller for pressing the tire bead behind the mounting head
- Lifting blade for lifting the tire during the disassembly process
- Weight: 15.7 kg
Workshop compressor 230 V / 10 bar / 50 l tank
The compact Weber air compressor with a 10 bar operating pressure and a 50-liter tank is perfect for use in the workshop, garage, or around the home. With its oil-lubricated, direct-drive, 2-cylinder unit and high working pressure, it ensures maximum performance and reliability despite its space-saving design. Thanks to its sturdy plastic wheels and convenient carrying handle, the air compressor is mobile and can be used flexibly. The pressure switch and pressure regulator allow for easy and precise adjustment of the working pressure, simplifying operation. The integrated pressure gauge enables quick and easy pressure readings. The quick-release coupling makes it easy to connect all kinds of pneumatic tools, while a safety valve and condensate drain plug on the tank provide the necessary safety.
- direct-drive twin-cylinder compressor
- powerful and robust
- high work pressure
- Mobile thanks to stable wheels
- Ready for connection, equipped with CE safety plug
- with adjustable pressure reducer and manometer
- Quick coupling NW 7.2
- Condensate drain valve on the tank
- TÜV-certified safety valve
- Additional compressors and air dryers are available upon request.
Technical specifications – Tire mounting machine STM-102 |
|
| Rim tension (outer) | 10"–20" |
| Inner rim tension | 12"–24" |
| max. wheel width | 250 mm |
| max. wheel diameter | 920 mm |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Engine power | 1.1 kW |
| Air requirements | 8–10 bar |
| Push-off force | 2500 kg |
| noise level | <70 dB |
| Dead weight | 190 kg |
Technical data – Wheel balancing machine STW-202 |
|
| Rim diameter | 10–24" |
| max. wheel weight | 65 kg |
| noise level | <70 dB |
| Engine power | 0.2 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Dead weight | 84 kg |
| Rim width | 1.5–20" |
| Wheel diameter | 990 mm |
| Impact velocity | 200 rpm. |
| Balancing time | approx. 8 sec. |
| accuracy | ±1 g |
| Operating temperature | 5–50 °C |
| Diameter of balancing shaft | 40 mm |
Technical specifications – Workshop compressor |
|
| Engine power | 2.2 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Maximum operating pressure | 10 bar |
| cylinder | 2 |
| average air output | 392 l/min. |
| Compressor speed | 2850 rpm. |
| Tank volume | 50 liters |
| Noise emissions | 96 dB(A) |
| Dimensions L x W x H | 770 x 385 x 740 mm |
| Dead weight | 38.5 kg |
Product videos
Scope of delivery
- Tire mounting machine including auxiliary mounting arm as shown
- Bucket for assembly paste, tire inflator, tire iron
- 4x plastic protectors for clamping jaws
- German assembly and operating instructions
- Wheel balancing machine including wheel guard and balancing shaft
- Calibration weight, rim width gauge, weight pliers, 4 balancing cones, quick-release nut, aluminum rim attachment for quick-release nut
- German assembly and operating instructions
- 1x Workshop compressor 230 V / 10 bar / 50 l tank
Shipping dimensions
| Shipping dimensions Package 1 | |
|---|---|
| Item weight | approx. 290.00 kg |
| Length | approx. 97.00 cm |
| Width | approx. 76.00 cm |
| Height | approx. 96.00 cm |
| Shipping dimensions Package 2 | |
| Item weight | approx. 84.00 kg |
| Length | approx. 80.00 cm |
| Width | approx. 110.00 cm |
| Height | approx. 112.00 cm |
| Shipping dimensions Package 3 | |
| Item weight | approx. 15.7.00 kg |
| Length | approx. 60.00 cm |
| Width | approx. 27.00 cm |
| Height | approx. 17.00 cm |
| Shipping dimensions Package 4 | |
| Item weight | approx. 41.5,000 kg |
| Length | approx. 77.00 cm |
| Width | approx. 38.5,00 cm |
| Height | approx. 74.00 cm |
