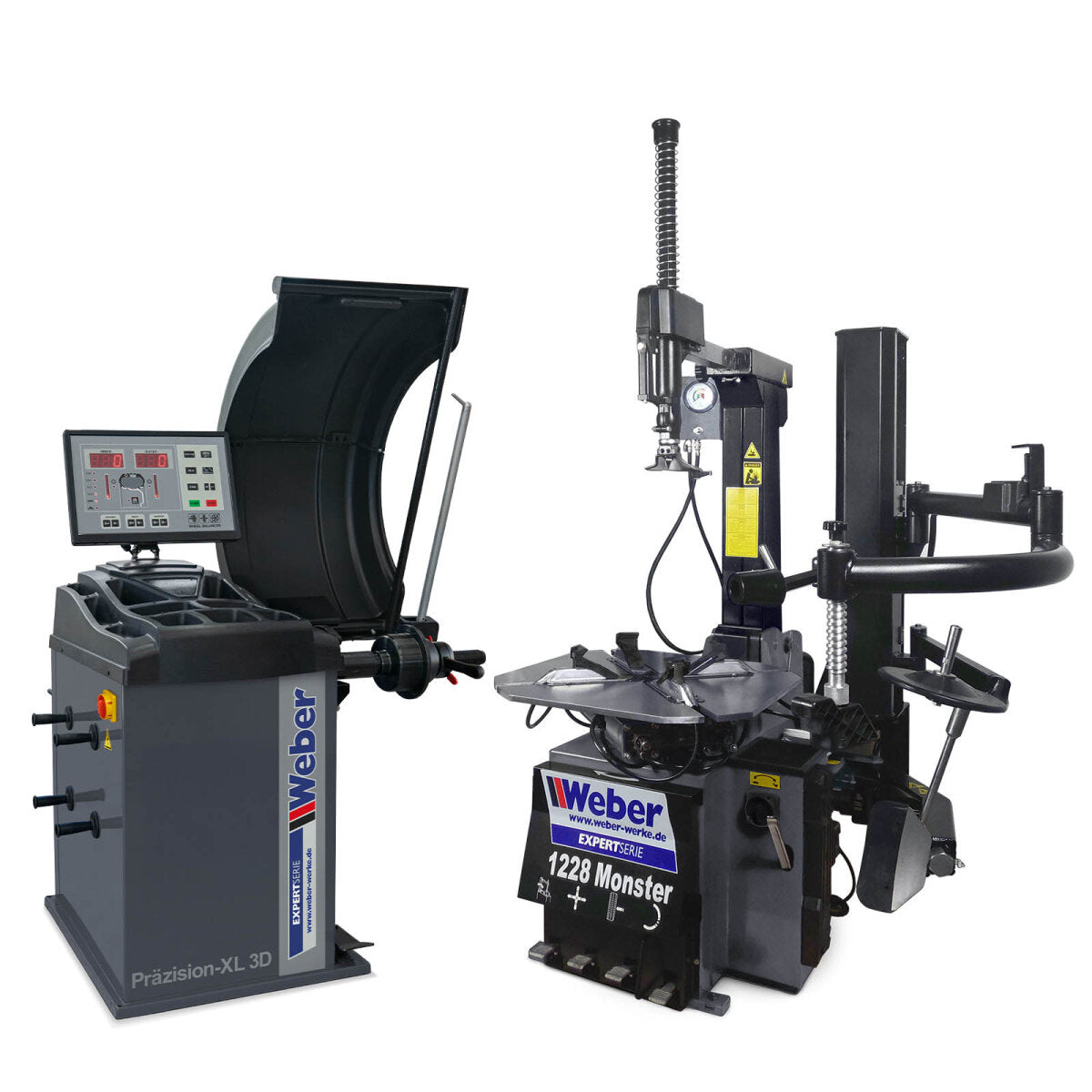

Car Tire Changer Weber 1228 Monster and Wheel Balancer Weber Precision-XL 3D
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Tire mounting machine for cars, vans and motorcycles
- Extremely robust machine for high throughput
- pneumatically tiltable assembly column
- Pneumatic locking and adjustment of the mounting head with sufficient distance between the head and the rim.
- Mounting head with receptacle for plastic protective elements to protect the rim
- Clamping jaws made of high-strength steel for securely clamping the rim from the inside and outside.
- Plastic protective jaws for mounting aluminum rims included in the scope of delivery
- Self-centering clamping plate for rims up to 28"
- 2 adjustable assembly speeds
- Additional operation of the trigger arm on the handle
- Tire inflator and pressure gauge on assembly column
- Air injection system (booster) for shock inflation of the Tire via the clamping jaws with additional pressure reservoir
- including auxiliary mounting arm HP1-XL for mounting run-flat and low-profile Tires
HP1-XL auxiliary mounting arm
- Auxiliary mounting arm on the right for mounting run-flat and low-profile Tires
- Operation is via a joystick that controls a pneumatic cylinder.
- Hand guard to secure the joystick against unintentional activation
- stable hold-down roller for pressing the Tire bead behind the mounting head
- separately height-adjustable hold-down pad via thread
- Lifting roller for raising the Tire during the disassembly process
Wheel balancing machine for cars and small vans
- Automatic process with wheel braking and wide program selection between different balancing methods, static and dynamic balancing, as well as balancing of wheels with aluminum rims.
- 3D – automatic data transfer of rim data
- Laser – for precise positioning of the adhesive weights
- Compact and economical wheel balancing machine with a microprocessor-controlled dual-LED display for wheels of cars and light commercial vehicles.
- 5 aluminum wheel programs, as well as a steel wheel program and a motorcycle program
- Integrated software for self-testing and calibration
- Optional motorcycle adapter and universal flange available
- “Clip system” for easy attachment of the adhesive weights
- Locking pedal to hold the wheel, makes attaching weights easier.
Technical specifications – Precision-XL 3D wheel balancing machine | |
| Rim width | 1.5"–20" |
| Rim diameter | 10"–26" |
| Tire diameter | 990 mm |
| max. wheel weight | 65 kg |
| Impact velocity | 150 rpm. |
| Balancing time | approx. 7 sec. |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Engine power | 0.18 kW |
| accuracy | ±1 g |
| Noise level | <70 dB |
| Operating temperature | 0–50 °C |
| Dead weight | 180 kg |
| Diameter of balancing shaft | 40 mm |
Technical specifications – Tire mounting machine 1228 Monster | |
| Rim tension (outer) | 12"–26" |
| Inner rim tension | 14"–28" |
| max. wheel width | 360 mm |
| max. wheel diameter | 1200 mm |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Engine power | 1.1 kW |
| Air requirements | 10 bar |
| Push-off force | 2500 kg |
| Maximum Tire inflation pressure | 3.2 bar |
| Noise level | <70 dB |
| Dead weight | 310 kg |
Product videos
Scope of delivery
- Tire mounting machine including auxiliary mounting arm HP1-XL as pictured
- Bucket for assembly paste, Tire inflator, Tire iron
- 4x plastic protectors for clamping jaws
- Balancing machine including wheel guard and balancing shaft
- Calibration weight, rim width gauge, weight pliers, 4 balancing cones, quick-release nut, aluminum rim attachment for quick-release nut
- German assembly and operating instructions
Shipping dimensions
| Shipping dimensions Package 1 | |
|---|---|
| Item weight | approx. 635.00 kg |
| length | approx. 125.00 cm |
| Width | approx. 92.00 cm |
| Height | approx. 95.00 cm |
| Shipping dimensions Package 2 | |
| Item weight | approx. 107.00 kg |
| length | approx. 125.00 cm |
| Width | approx. 50.00 cm |
