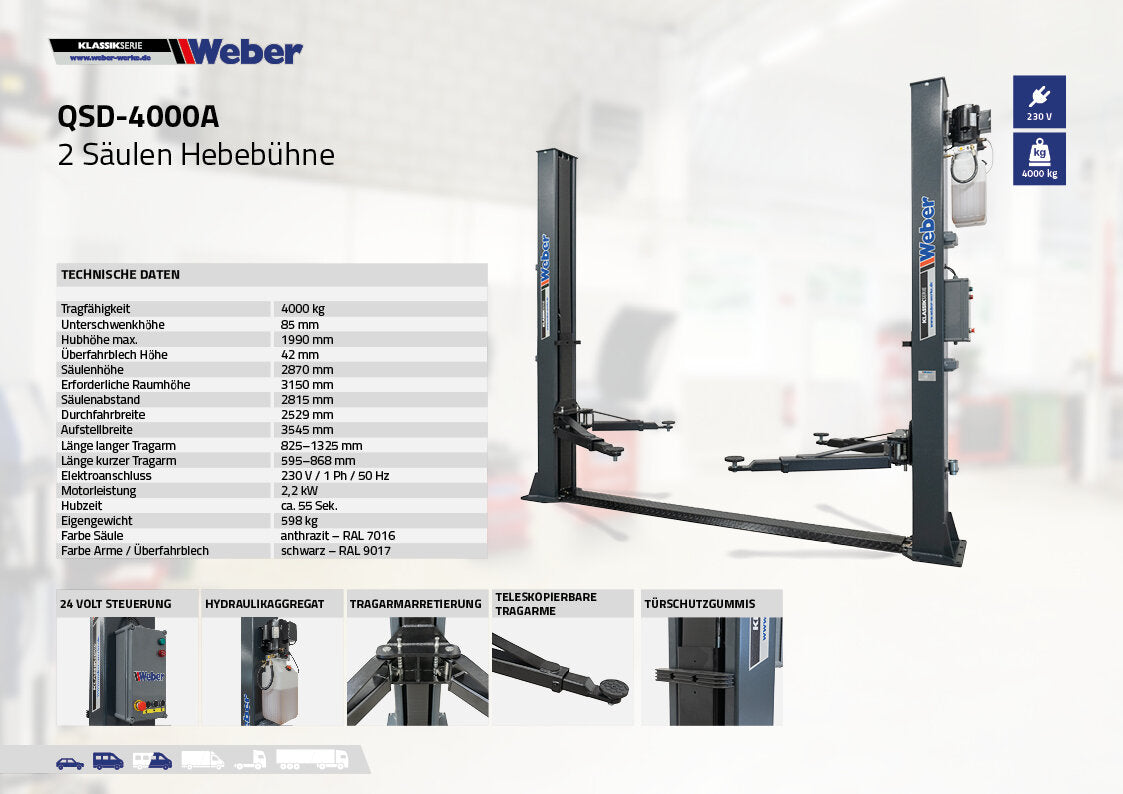

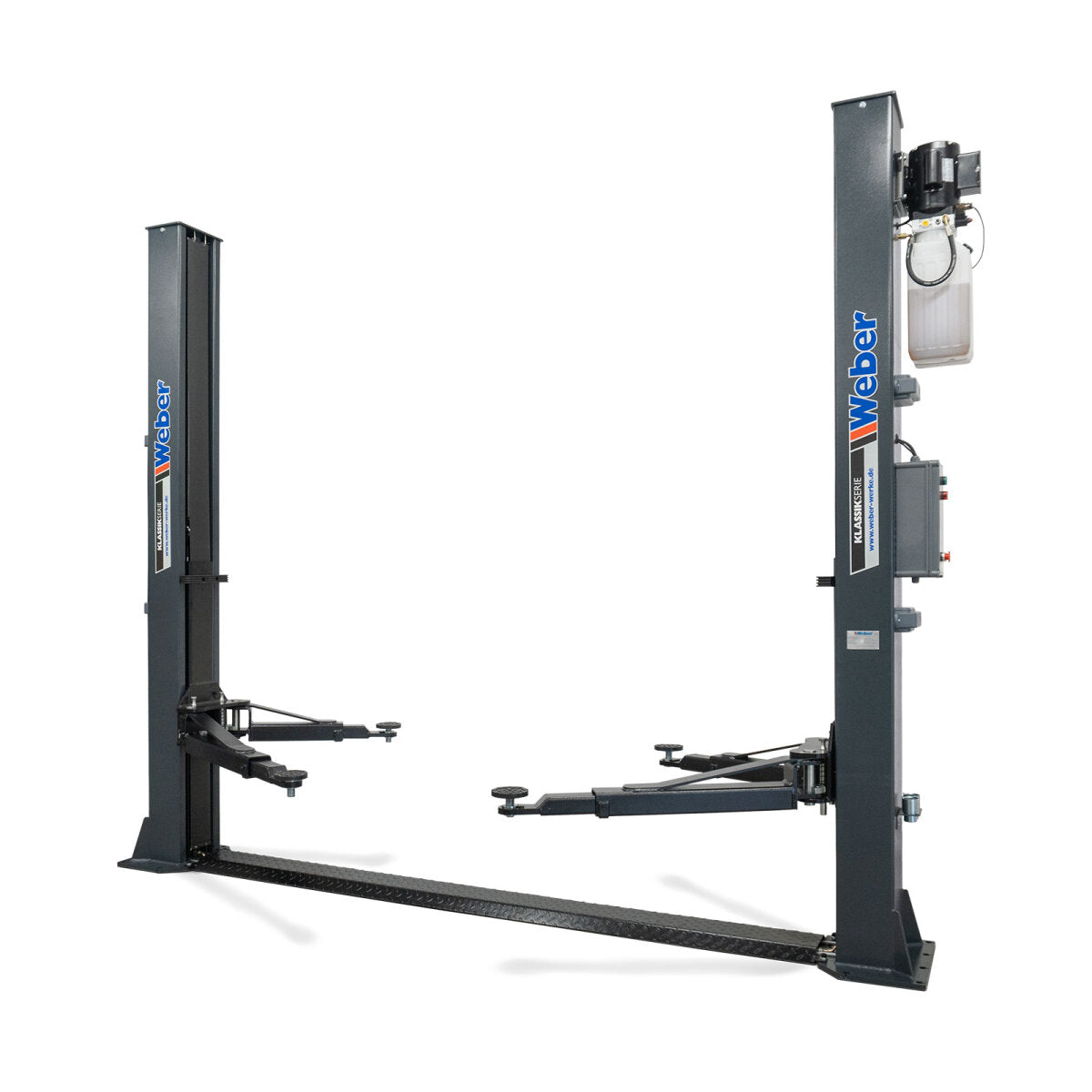

Two Post Lift Weber Klassic Series QSD-4000A

Electro-hydraulic Two Post Lift with asymmetrical support arms for cars and small vans

The Weber QSD-4000A from the Klassic Series is a powerful Two Post Lift with a 4000 kg lifting capacity, specifically designed for workshops, garages, and ambitious DIY mechanics. It combines robust construction, ease of use, and high safety – perfectly suited for cars, SUVs, and vans. Thanks to its asymmetrical, telescopic lifting arms, the lift allows for flexible vehicle positioning and a wide door opening. With automatic safety release and a 24V deadman's switch, you can work comfortably and safely at all times.

Advantages for your workshop:

• Versatile use – for cars, SUVs and vans
• Space-saving design – perfect for smaller workshops & garages
• High security – automatic unlocking & reliable locking systems
• Convenient operation – user-friendly 24V control
• Quick assembly – many parts are already pre-assembled.
• Low maintenance & durable – robust construction reduces follow-up costs

• Raising and lowering via push button for fine adjustment of the lifting height
• 2-part, telescopic support arms for accommodating various vehicles
• Column cover in both lifting columns to protect against contamination

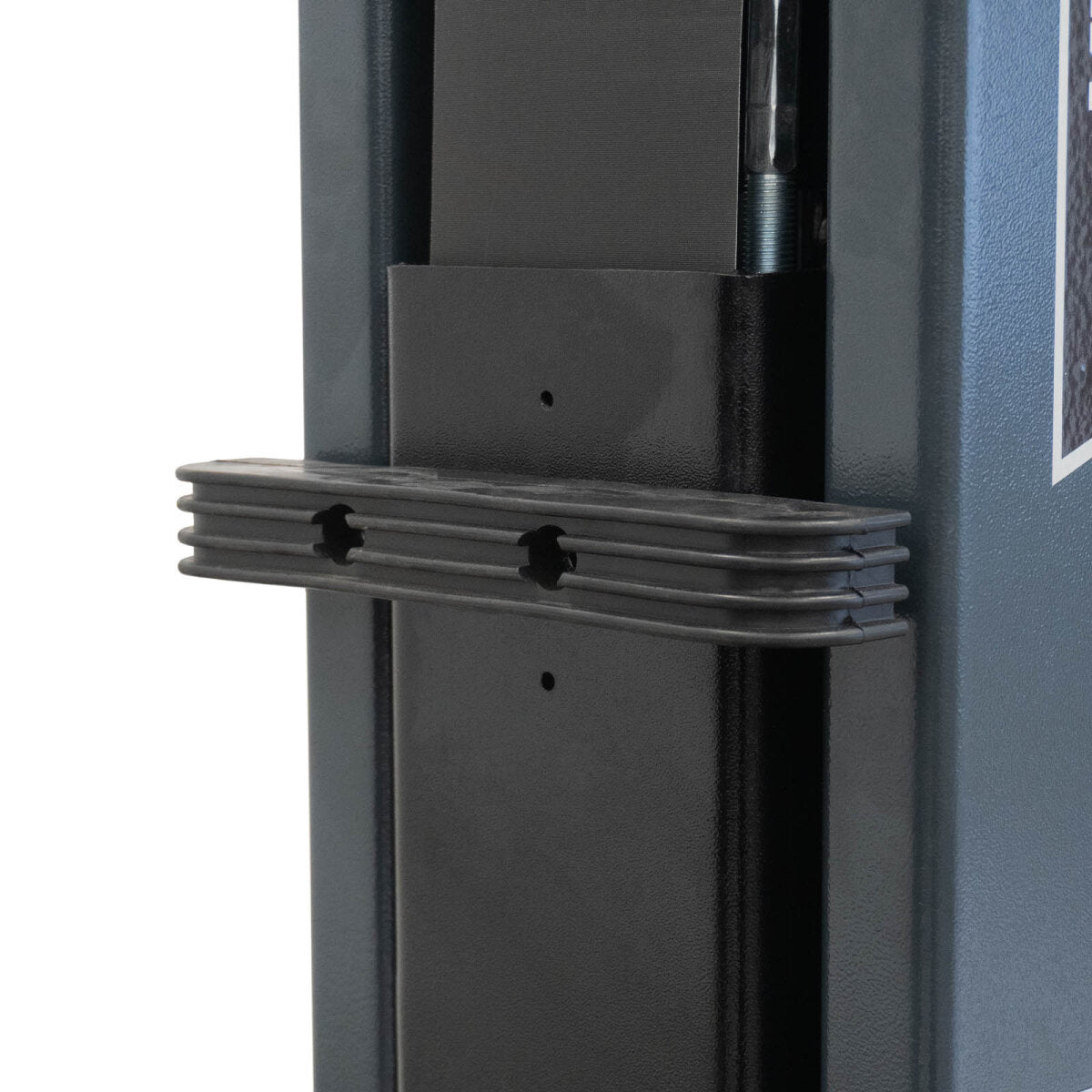

• Door protection rubbers on both pillars
• Asymmetrical support arms for large door opening angles

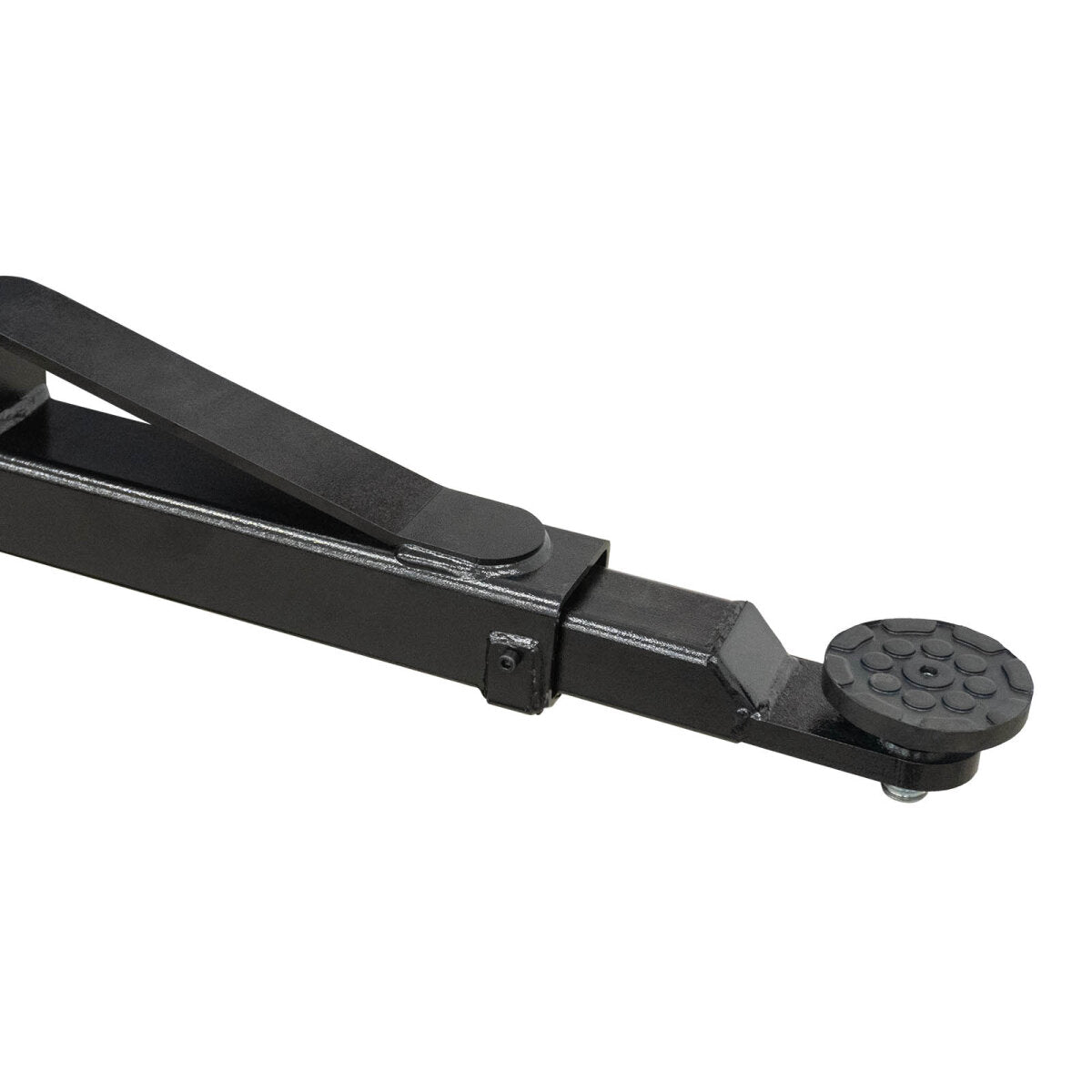

• Support plate with rubber padding, height-adjustable by turning.

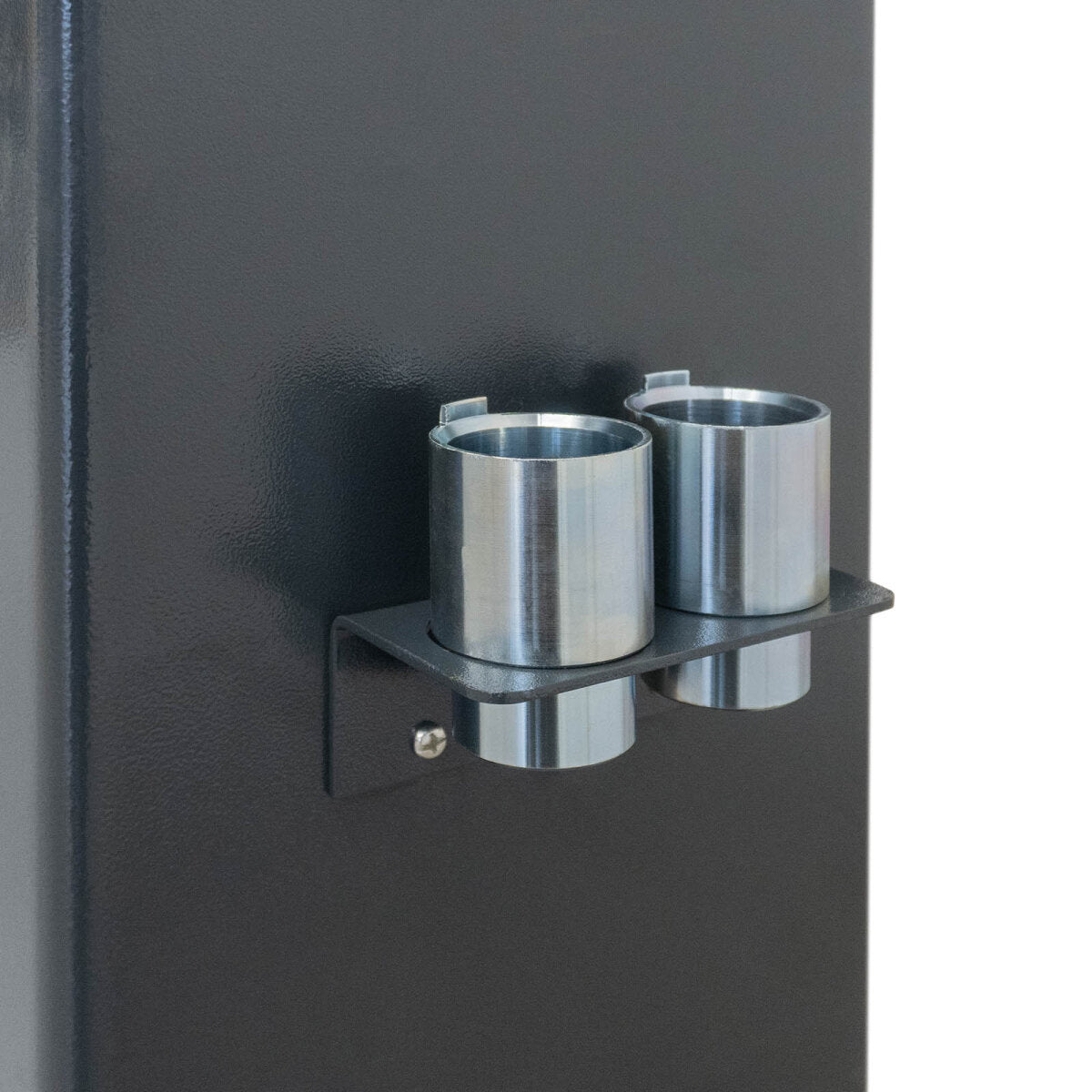

• A set of transporter mounts (4 pieces, each 50 mm) is included in the scope of delivery.
• Low maintenance and wear, therefore low follow-up costs

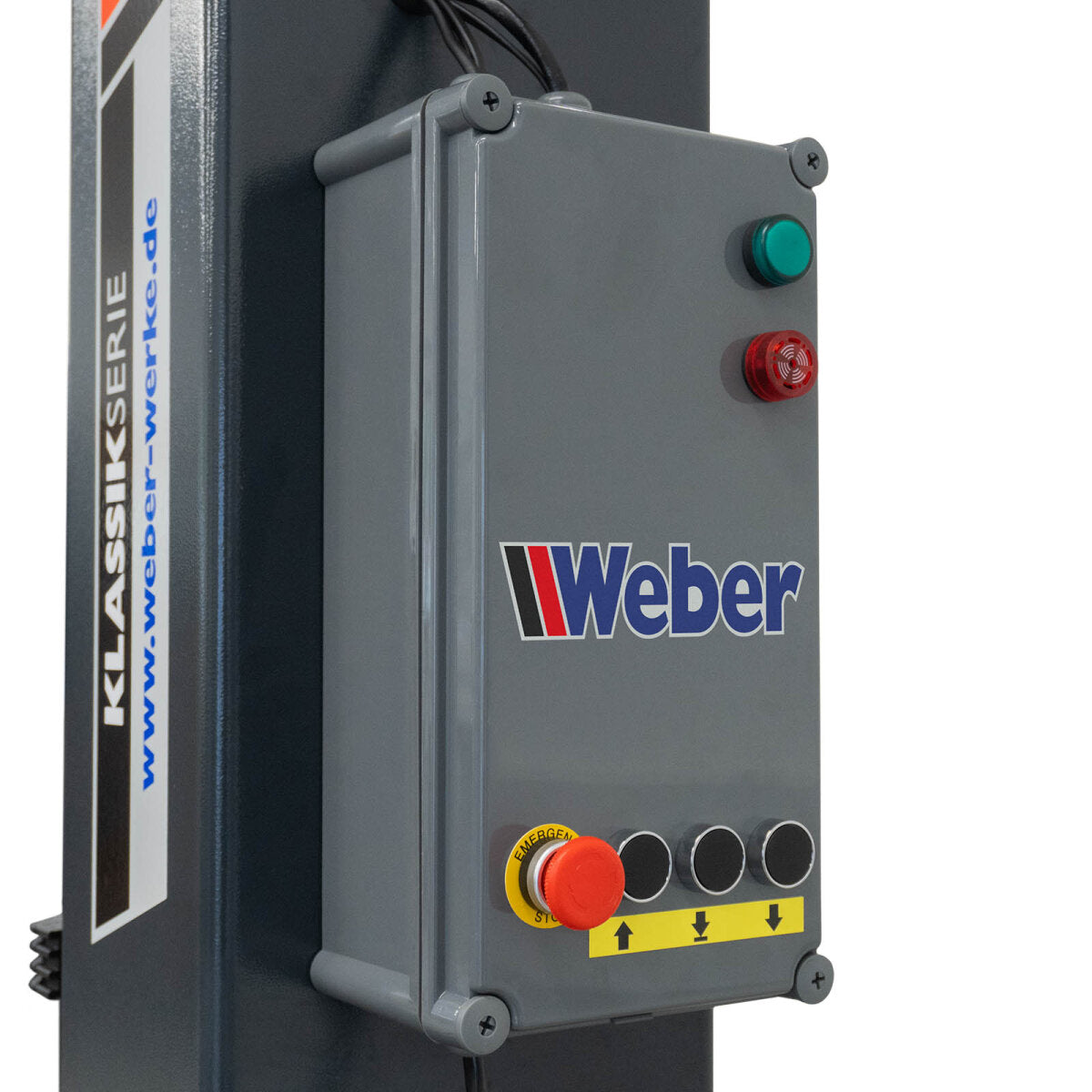

• Easy handling thanks to 24-volt safety push-button control (dead man's control)
• Ideal recording area for cars and small vans

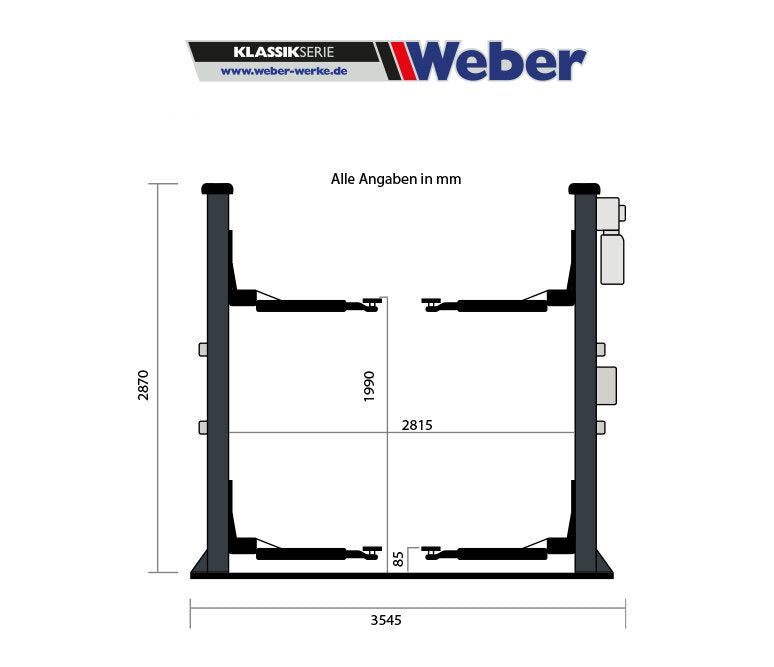

• low swivel height, only 85 mm

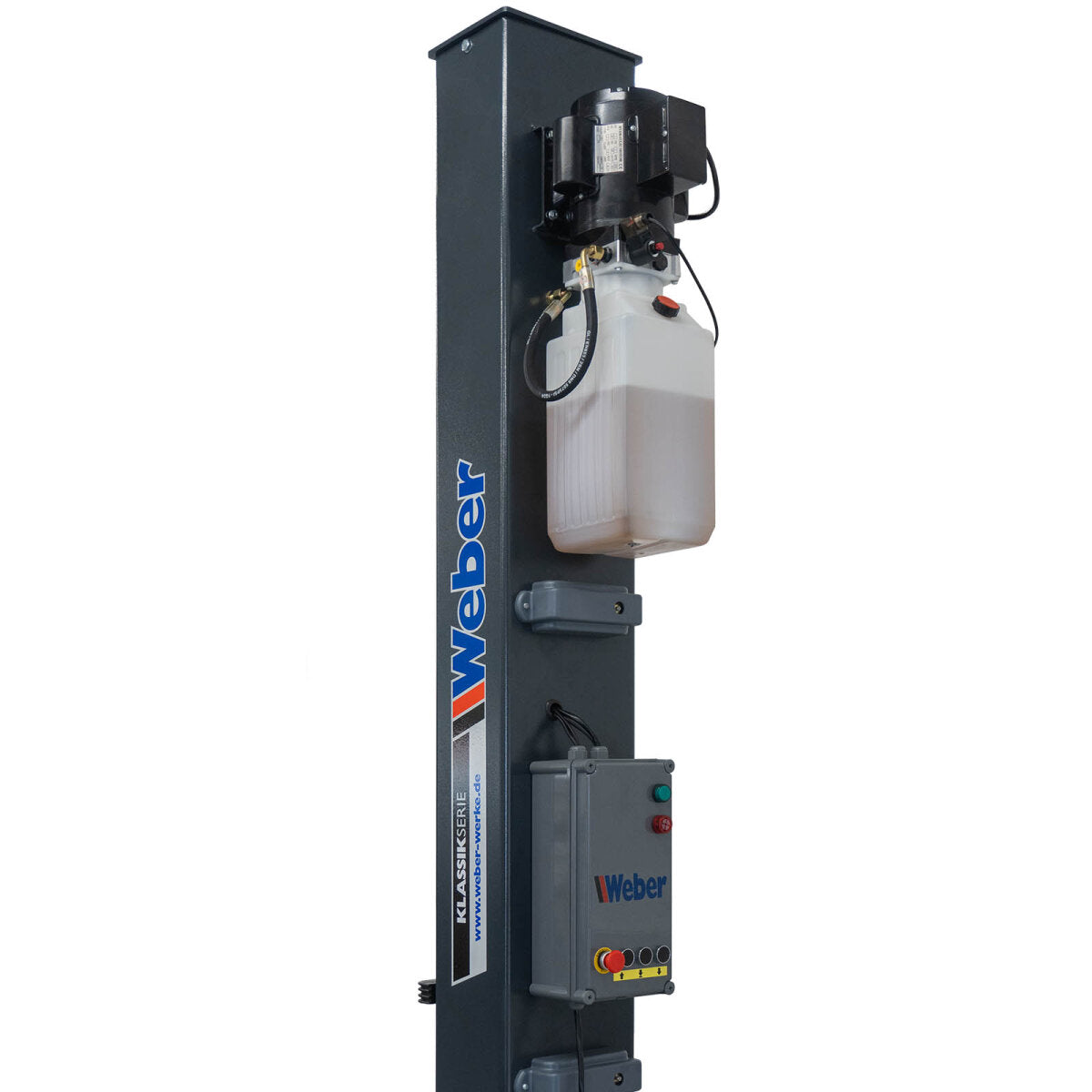

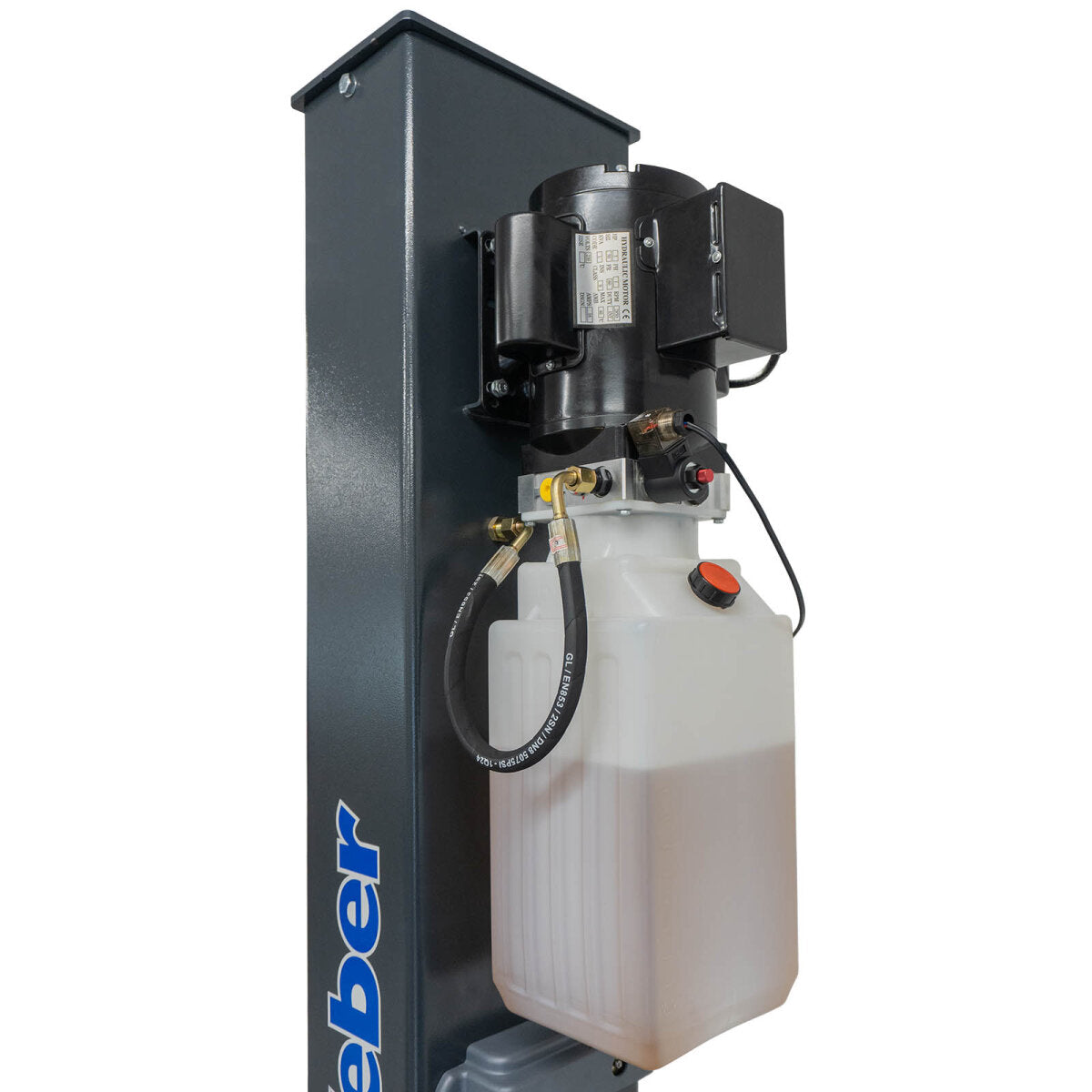

• Simple assembly, as many components (motor, control box, hose on steering column, etc.) are already pre-assembled.
• Wide passage, also suitable for small vans

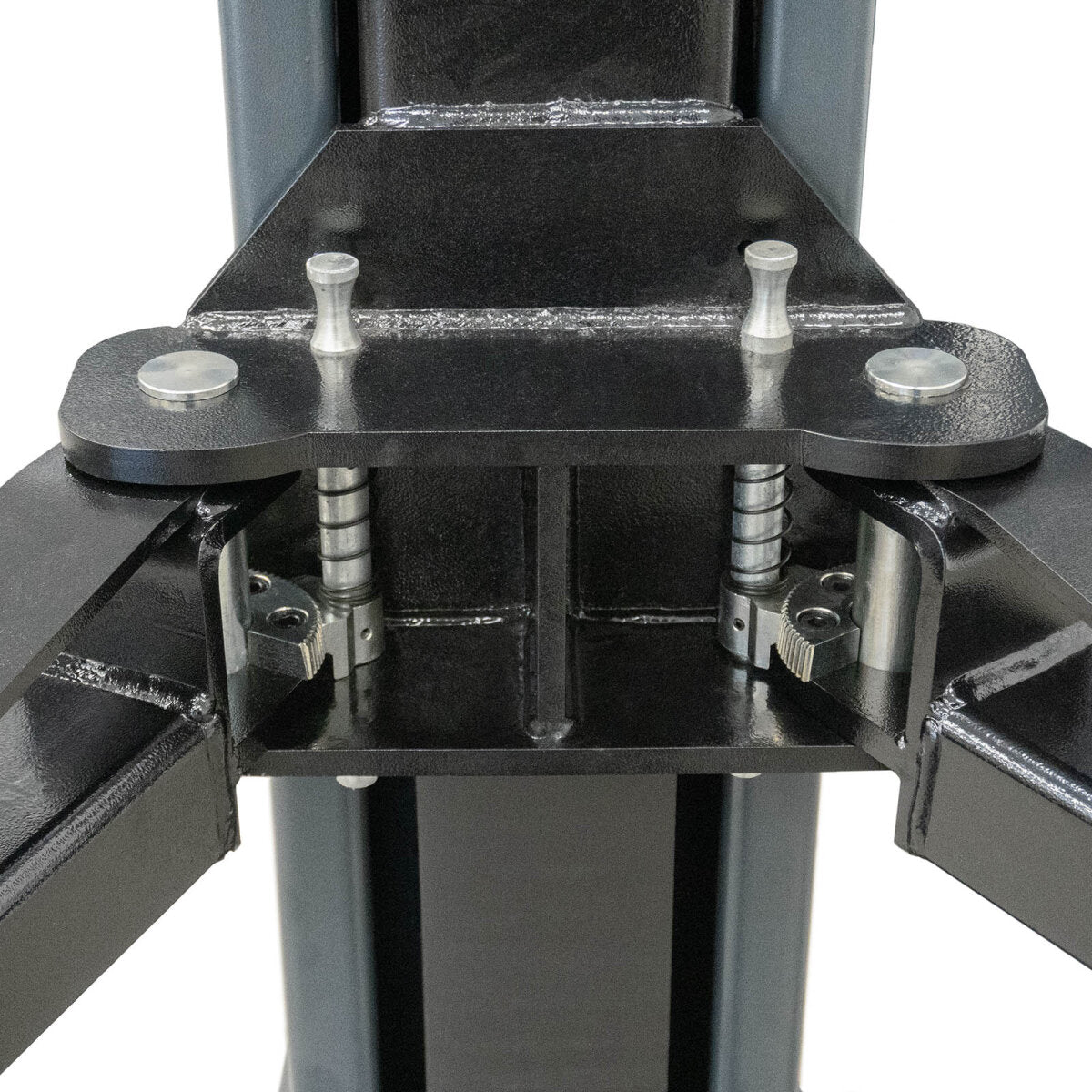

• Automatic support arm locking, manual unlocking possible
• Upright lifting cylinders in both columns; the hydraulic cylinders are sealed within the cylinder tube, thus eliminating the risk of damage (contamination, grinding or welding spatter, etc.) to the piston rods.
• Multiple safety devices, overload valve, pipe rupture protection and mechanical safety latches
• Electromechanically operated safety latches
• CE-marked safety end stop (pinch protection) and electronic stroke limitation
• Permissible load capacity 4000 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.
• Floor requirements according to current (in Germany permissible) structural analysis: concrete C20/25 DIN1045:2001-D7, double reinforced, with a minimum dimension of 4000 x 2000 x 200 mm.
