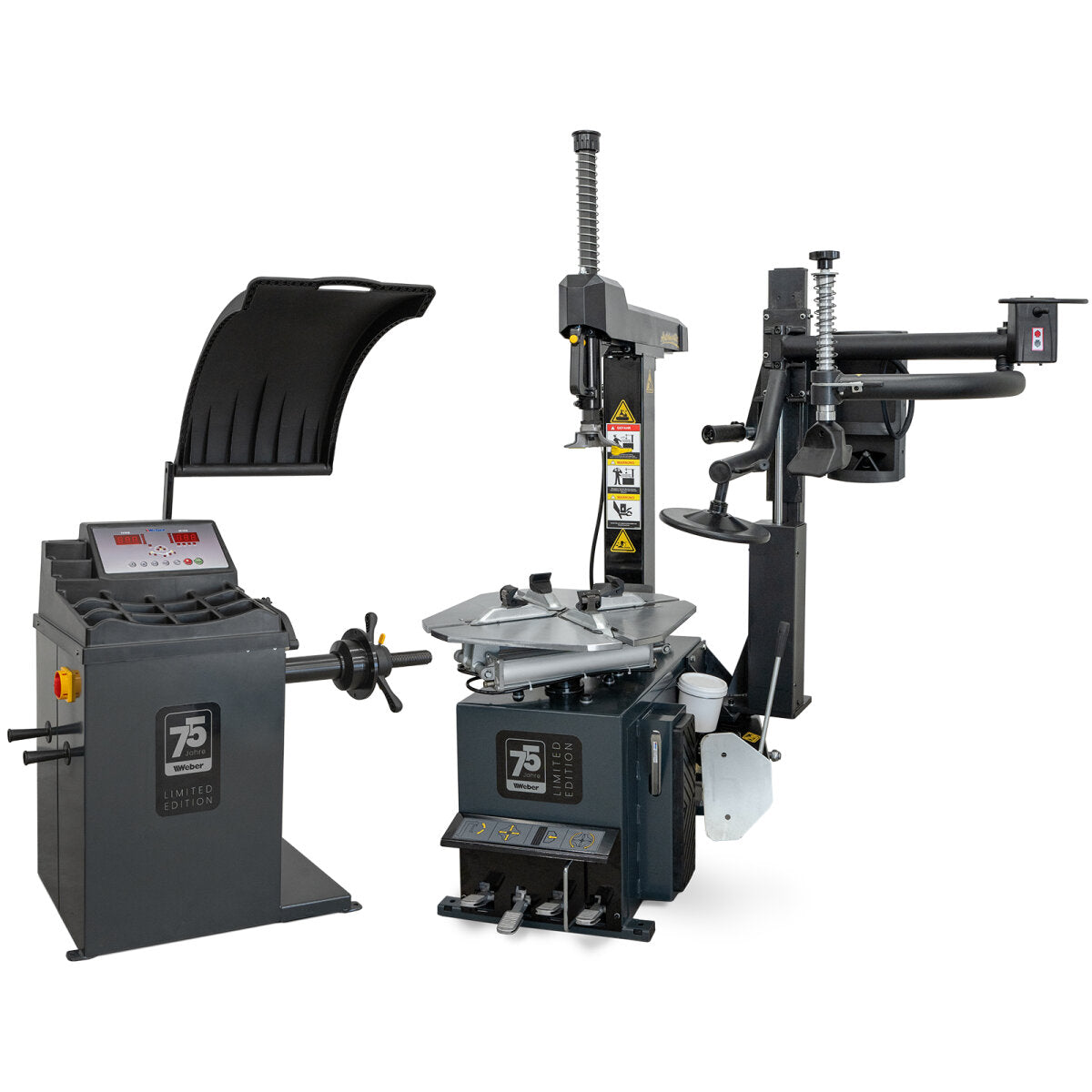

Car Tire Changer Weber STM-75 and Wheel Balancer Weber STW-75 including right-hand mounting arm
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Tire mounting machine for cars and light commercial vehicles
The Weber STM-75 car Tire Changer impresses with its reliability and robust construction, making it perfect for daily use in the workshop. The pneumatically tilting mounting column allows for easy positioning and clamping of the wheel, as well as simple, ergonomic operation. The laterally swiveling mounting arm with practical eccentric clamping allows for quick and precise adjustment of the mounting head. The speed of the turntable is infinitely variable.
- pneumatically tiltable assembly column
- pneumatic locking of the mounting head
- Ideal clamping range for cars and small vans
- Mounting head with receptacle for plastic protective elements to protect the rim
- Clamping jaws made of high-strength steel for securely clamping the rim from the inside and outside.
- Self-centering clamping plate for rims up to 24"
- stepless speed adjustment of the turntable
Auxiliary mounting arm AL-320D
- Auxiliary mounting arm with roller for holding down in front of the mounting head
- Actuation of the pneumatic assembly arm via joystick
- Hand guard to prevent unintentional activation
Wheel balancing machine for rims up to 24"
The STW-75 car Wheel Balancer combines proven technology with modern features. Thanks to its robust construction, it is ideally suited for daily workshop use. An integrated, precise measuring arm enables automatic acquisition of rim data, ensuring a fast and efficient workflow. Various balancing programs support the balancing of car and motorcycle wheels. The integrated laser allows for the precise placement of the balancing weights, resulting in accurate results.
- static and dynamic balancing
- 5 aluminum wheel programs, as well as a steel wheel program and a motorcycle program
- 2D – automatic transfer of rim data
- Laser – for precise positioning of the weights
- Automatic balancing process with wheel braking
- Integrated software for self-testing and calibration
- Optimization function for weight display <5g
Technical specifications – Tire mounting machine STM-75 | |
| Rim tension (outer) | 11"–20" |
| Inner rim tension | 12"–24" |
| max. wheel width | 250 mm |
| max. wheel diameter | 1000 mm |
| Assembly speed | 3 rpm / 14 rpm |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Engine power | 1.1 kW |
| Air requirements | 8–10 bar |
| Push-off force | 2500 kg |
| Maximum Tire inflation pressure | 3.2 bar |
| Noise level | <75 dB |
| Dead weight | approx. 190 kg |
Technical data – Wheel balancing machine STW-75 | |
| Rim width | 1.5"–20" |
| Rim diameter | 10"–24" |
| Wheel diameter | 990 mm |
| max. wheel weight | 65 kg |
| Impact velocity | 200 rpm. |
| Balancing time | approx. 8 sec. |
| Engine power | 0.2 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| accuracy | ± 1 g |
| Noise level | ≤ 70 dB |
| Operating temperature | 5–50 °C |
| Dead weight | approx. 100 kg |
| Diameter of balancing shaft | 40 mm |
Product videos
Scope of delivery
- Tire mounting machine including auxiliary mounting arm as shown
- Bucket for assembly paste, Tire inflator, Tire iron
- 4x plastic protectors for clamping jaws
- Wheel balancing machine as pictured
- Calibration weight, rim width gauge, weight pliers, 4 balancing cones, quick-release nut, aluminum rim attachment for quick-release nut
- German assembly and operating instructions
Shipping dimensions
| Shipping dimensions Package 1 | |
|---|---|
| Item weight | approx. 400.00 kg |
| length | approx. 100.00 cm |
| Width | approx. 75.00 cm |
| Height | approx. 100.00 cm |
| Shipping dimensions Package 2 | |
| Item weight | approx. 80.00 kg |
| length | approx. 125.00 cm |
| Width | approx. 56.00 cm |
| Height | approx. 45.00 cm |
| Shipping dimensions Package 3 | |
| Item weight | approx. 115.00 kg |
| length | approx. 58.00 cm |
| Width | |
