Weber Tire Machine STM-102 + Wheel Balancer ECO - Complete Package incl. Assist Arm
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Tire mounting machine for cars and light commercial vehicles
- side-swivel mounting arm
- Eccentric clamping of the mounting head
- Ideal clamping range for cars and small vans (motorcycle adapter optional)
- Mounting head with receptacle for plastic protective elements to protect the rim
- Clamping jaws made of high-strength steel for securely clamping the rim from the inside and outside.
- Self-centering clamping plate for rims up to 24"
HP Classic R auxiliary mounting arm
- Auxiliary mounting arm on the right for mounting run-flat and low-profile Tires
- Operation is via a joystick that controls a pneumatic cylinder.
- stable hold-down roller for pressing the Tire bead behind the mounting head
- Lifting blade for lifting the Tire during the disassembly process
- Weight: 15.7 kg
Wheel balancing machine for rims up to 24"
The Weber Klassik "ECO" series Wheel Balancer combines robust technology with a compact design and ease of use, making it ideal for small workshops, fleet managers, and private users. The balancer features a program for balancing steel rims and four additional programs for aluminum rims up to a maximum diameter of 24". Both static and dynamic balancing are possible.
- static and dynamic balancing
- 4 aluminum wheel programs and one steel wheel program
- Automatic balancing process with wheel braking
- Integrated software for self-testing and calibration
- Optimization function for weight display <5g
Technical specifications – Tire mounting machine STM-102 | |
| Rim tension (outer) | 10"–20" |
| Inner rim tension | 12"–24" |
| max. wheel width | 250 mm |
| max. wheel diameter | 920 mm |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Engine power | 1.1 kW |
| Air requirements | 8–10 bar |
| Push-off force | 2500 kg |
| Noise level | <70 dB |
| Dead weight | 190 kg |
Technical data – Classic Wheel Balancer "ECO" | |
| Rim diameter | 10–24" |
| max. wheel weight | 65 kg |
| Noise level | <70 dB |
| Engine power | 0.25 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Dead weight | approx. 85 kg |
| Rim width | 1.5"–20" |
| Wheel diameter | 960 mm |
| Impact velocity | 150 rpm. |
| Balancing time | approx. 8 sec. |
| accuracy | ± 1 g |
| Diameter of balancing shaft | 36 mm |
Product videos
Scope of delivery

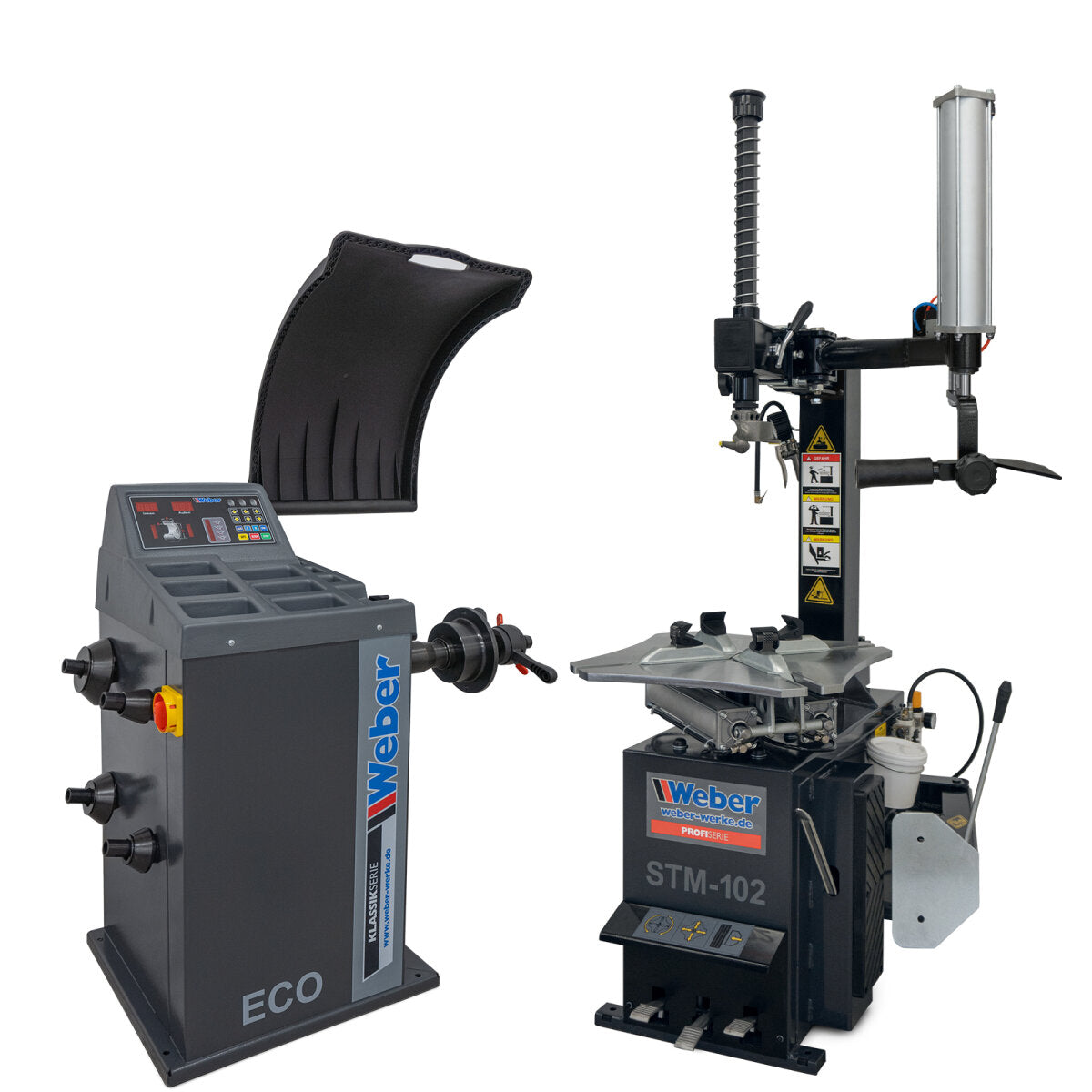

- Tire mounting machine including auxiliary mounting arm as shown
- Bucket for assembly paste, Tire inflator and Tire iron
- 4x plastic protectors for clamping jaws
- Wheel balancing machine as pictured
- Calibration weight, rim width gauge, weight pliers, 4 balancing cones, quick-release nut, aluminum rim attachment for quick-release nut
- German assembly and operating instructions
Shipping dimensions
| Shipping dimensions Package 1 | |
|---|---|
| Item weight | approx. 180.00 kg |
| length | approx. 97.00 cm |
| Width | approx. 76.00 cm |
| Height | approx. 96.00 cm |
| Shipping dimensions Package 2 | |
| Item weight | approx. 85.00 kg |
| length | approx. 58.00 cm |
| Width | approx. 85.00 cm |
| Height | approx. 118.00 cm |
| Shipping dimensions Package 3 | |
| Item weight | approx. 15.700 kg |
| length | approx. 60.00 cm |
| Width | approx. 27.00 cm |
| Height | approx. 17.00 cm |
