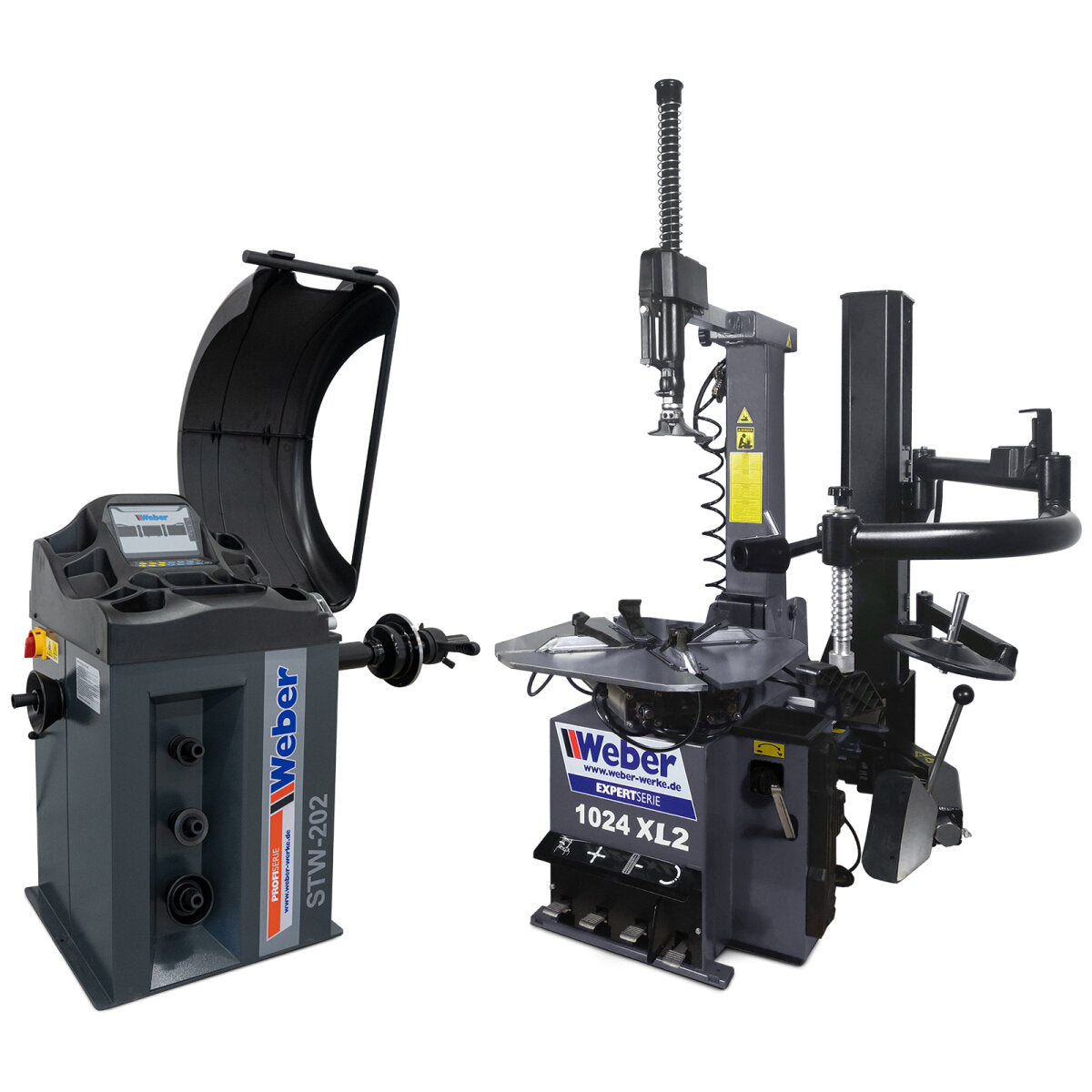

Car Tire Changer Weber 1024-XL-2HP and Wheel Balancer Weber STW-202 incl. mounting arm right
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Tire mounting machine for cars, vans and motorcycles
- High-precision machine for high throughput
- pneumatically tiltable assembly column
- Pneumatic locking and adjustment of the mounting head with sufficient distance between the head and the rim.
- Mounting head with receptacle for plastic protective elements to protect the rim
- Clamping jaws made of high-strength steel for securely clamping the rim from the inside and outside.
- Plastic protective jaws for mounting aluminum rims included in the scope of delivery
- Self-centering clamping plate for rims up to 24"
- 2 adjustable assembly speeds
- including auxiliary mounting arm HP1-XL right for mounting run-flat and low-profile Tires
- optional auxiliary mounting arm HP2 left
HP1-XL auxiliary mounting arm
- Auxiliary mounting arm on the right for mounting run-flat and low-profile Tires
- Operation is via a joystick that controls a pneumatic cylinder.
- Hand guard to secure the joystick against unintentional activation
- stable hold-down roller for pressing the Tire bead behind the mounting head
- separately height-adjustable hold-down pad via thread
- Lifting roller for raising the Tire during the disassembly process
Wheel balancing machine for rims up to 24"
The microprocessor-controlled STW-202 Wheel Balancer impresses with its robust construction and proven technology. The machine features a modern measuring arm for automatic acquisition of rim data. Additionally, it offers various balancing programs suitable for balancing car and motorcycle wheels.
- static and dynamic balancing
- 4 aluminum wheel programs, as well as a steel wheel program and a motorcycle program
- 2D – automatic transfer of rim data
- Automatic balancing process with wheel braking
- Integrated software for self-testing and calibration
- Optimization function for weight display <5g
Technical data – Wheel balancing machine STW-202 | |
| Rim diameter | 10–24" |
| max. wheel weight | 65 kg |
| Noise level | <70 dB |
| Engine power | 0.2 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Dead weight | 84 kg |
| Rim width | 1.5–20" |
| Wheel diameter | 990 mm |
| Impact velocity | 200 rpm. |
| Balancing time | approx. 8 sec. |
| accuracy | ±1 g |
| Operating temperature | 5–50 °C |
| Diameter of balancing shaft | 40 mm |
Technical specifications – Tire mounting machine 1024-XL-2HP | |
| Rim tension (outer) | 10"–22" |
| Inner rim tension | 12"–24" |
| max. wheel width | 310 mm |
| max. wheel diameter | 1000 mm |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Engine power | 1.1 kW |
| Air requirements | 10 bar |
| Push-off force | 2500 kg |
| Maximum Tire inflation pressure | 3.2 bar |
| Noise level | <70 dB |
| Dead weight | 250 kg |
Product videos
Scope of delivery
- Tire mounting machine including auxiliary mounting arm as shown
- Bucket for assembly paste, Tire inflator, Tire iron
- 4x plastic protectors for clamping jaws
- German assembly and operating instructions
- Wheel balancing machine including wheel guard and balancing shaft
- Calibration weight, rim width gauge, weight pliers, 4 balancing cones, quick-release nut, aluminum rim attachment for quick-release nut
- German assembly and operating instructions
Shipping dimensions
| Shipping dimensions Package 1 | |
|---|---|
| Item weight | approx. 250.00 kg |
| length | approx. 97.00 cm |
| Width | approx. 76.00 cm |
| Height | approx. 96.00 cm |
| Shipping dimensions Package 2 | |
| Item weight | approx. 84.00 kg |
| length | approx. 80.00 cm |
| Width | approx. 110.00 cm |
| Height | approx. 112.00 cm |
| Shipping dimensions Package 3 | |
| Item weight | approx. 90.00 kg |
| length | approx. 125.00 cm |
