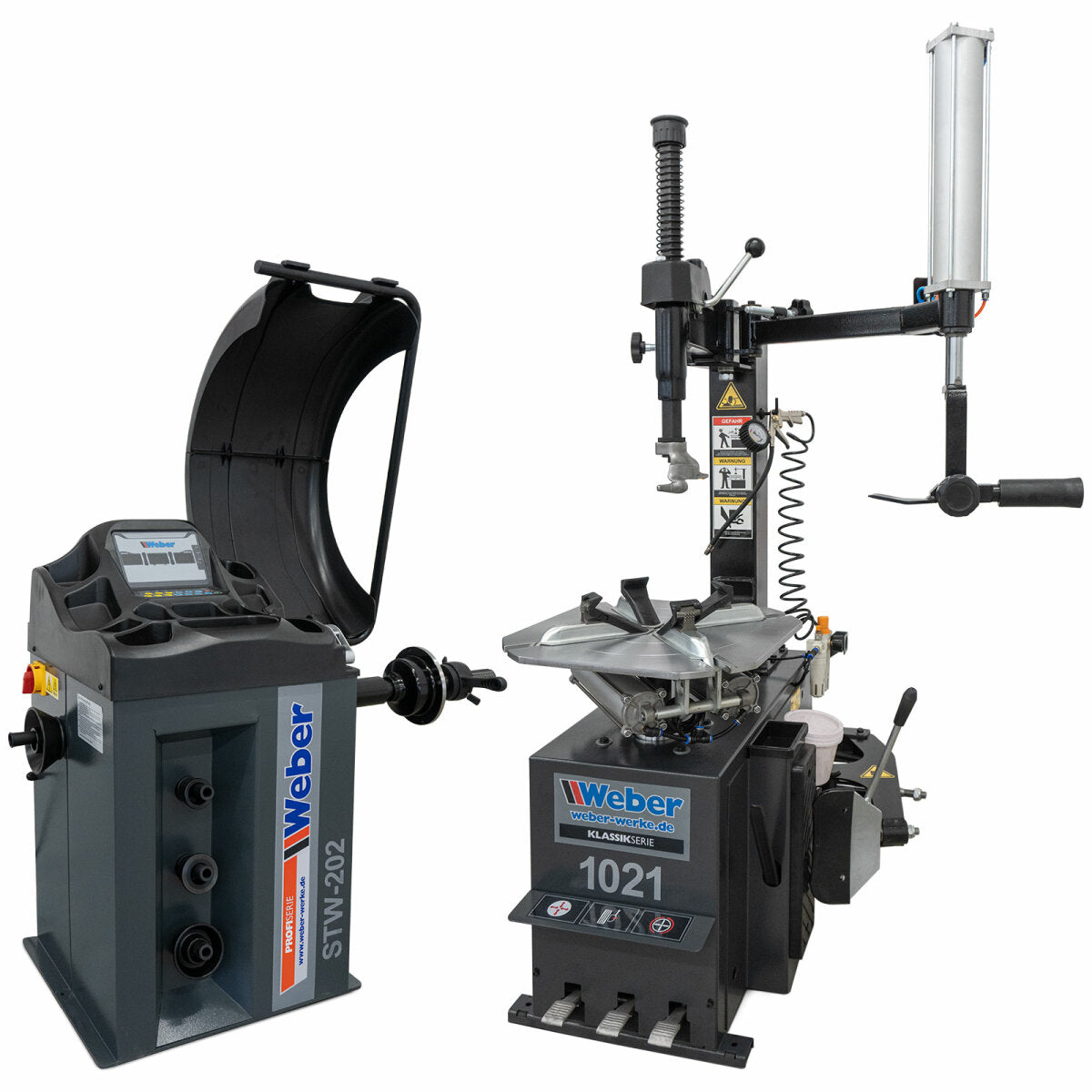

Car Tire Changer Weber 1021 and Wheel Balancer Weber STW-202 incl. mounting arm right
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Tire mounting machine for rims up to 21"
The Weber Klassik Series 1021 Tire Changer is known for its reliability and, thanks to its space-saving design, is ideal for small workshops, taxi companies, and private users. The laterally swiveling mounting arm with eccentric clamping allows for quick and easy adjustment of the mounting head. For easier mounting and dismounting, we recommend the optionalauxiliary mounting arm, which simplifies holding the Tire bead down.
- side-swivel mounting arm
- Eccentric clamping of the mounting head
- Clamping jaws made of high-strength steel for securely clamping the rim from the inside and outside.
- Self-centering clamping plate for rim sizes up to 21"
HP Classic R auxiliary mounting arm
- Auxiliary mounting arm on the right for mounting run-flat and low-profile Tires
- Operation is via a joystick that controls a pneumatic cylinder.
- stable hold-down roller for pressing the Tire bead behind the mounting head
- Lifting blade for lifting the Tire during the disassembly process
- Weight: 15.7 kg
Wheel balancing machine for rims up to 24"
The microprocessor-controlled STW-202 Wheel Balancer impresses with its robust construction and proven technology. The machine features a modern measuring arm for automatic acquisition of rim data. Additionally, it offers various balancing programs suitable for balancing car and motorcycle wheels.
- static and dynamic balancing
- 4 aluminum wheel programs, as well as a steel wheel program and a motorcycle program
- 2D – automatic transfer of rim data
- Automatic balancing process with wheel braking
- Integrated software for self-testing and calibration
- Optimization function for weight display <5g
Technical data – Classic Tire mounting machine 1021 | |
| Air requirements | 8–10 bar |
| max. wheel width | 230 mm |
| max. wheel diameter | 920 mm |
| Noise level | <70 dB |
| Engine power | 1.1 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Dead weight | approx. 160 kg |
| Rim tension (outer) | 10–18" |
| Inner rim tension | 12–21" |
| Push-off force | 2500 kg |
Technical data – Wheel balancing machine STW-202 | |
| Rim diameter | 10–24" |
| max. wheel weight | 65 kg |
| Noise level | <70 dB |
| Engine power | 0.2 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Dead weight | 84 kg |
| Rim width | 1.5–20" |
| Wheel diameter | 990 mm |
| Impact velocity | 200 rpm. |
| Balancing time | approx. 8 sec. |
| accuracy | ±1 g |
| Operating temperature | 5–50 °C |
| Diameter of balancing shaft | 40 mm |
Product videos
Scope of delivery
- Tire mounting machine including auxiliary mounting arm as shown
- Bucket for assembly paste, Tire inflator and Tire iron
- 4x plastic protectors for clamping jaws
- Wheel balancing machine including wheel guard and balancing shaft
- Calibration weight, rim width gauge, weight pliers, 4 balancing cones, quick-release nut, aluminum rim attachment for quick-release nut
- German assembly and operating instructions
Shipping dimensions
| Shipping dimensions Package 1 | |
|---|---|
| Item weight | approx. 160.00 kg |
| length | approx. 100.00 cm |
| Width | approx. 80.00 cm |
| Height | approx. 95.00 cm |
| Shipping dimensions Package 2 | |
| Item weight | approx. 84.00 kg |
| length | approx. 80.00 cm |
| Width | approx. 110.00 cm |
| Height | approx. 112.00 cm |
| Shipping dimensions Package 3 | |
| Item weight | approx. 15.700 kg |
| length | approx. 60.00 cm |
| Width | approx. 27.00 cm |
| Height | approx. 17.00 cm |
