Weber 2-Post Car Lift 4200 kg - Complete Package incl. Oil & Anchors
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details

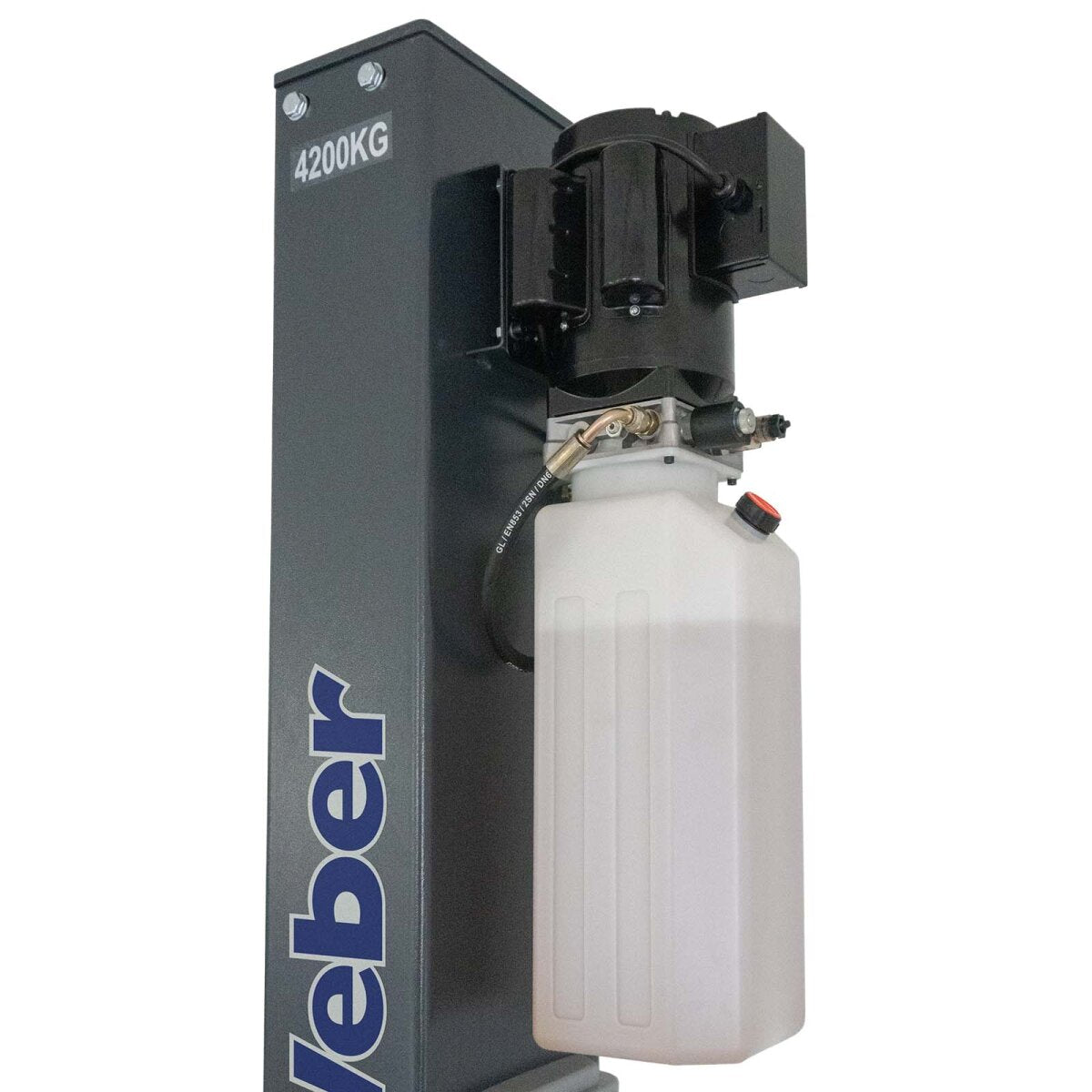

Electro-hydraulic 2-post lift with 4200 kg lifting capacity, drive-over protection, asymmetrical support arms, automatic release of the safety latches and 230 V electrical connection in a package with 10 liters of hydraulic oil and a set of heavy-duty anchors.
Electro-hydraulic 2-post lift for cars and small vans
- Stable cover plate as drive-over protection between the columns
- Torsion-resistant column profiles
- Column covers on both columns
- automatic unlocking of the safety latches
- electronic stroke limiter
- Signal tone protection from the CE stop

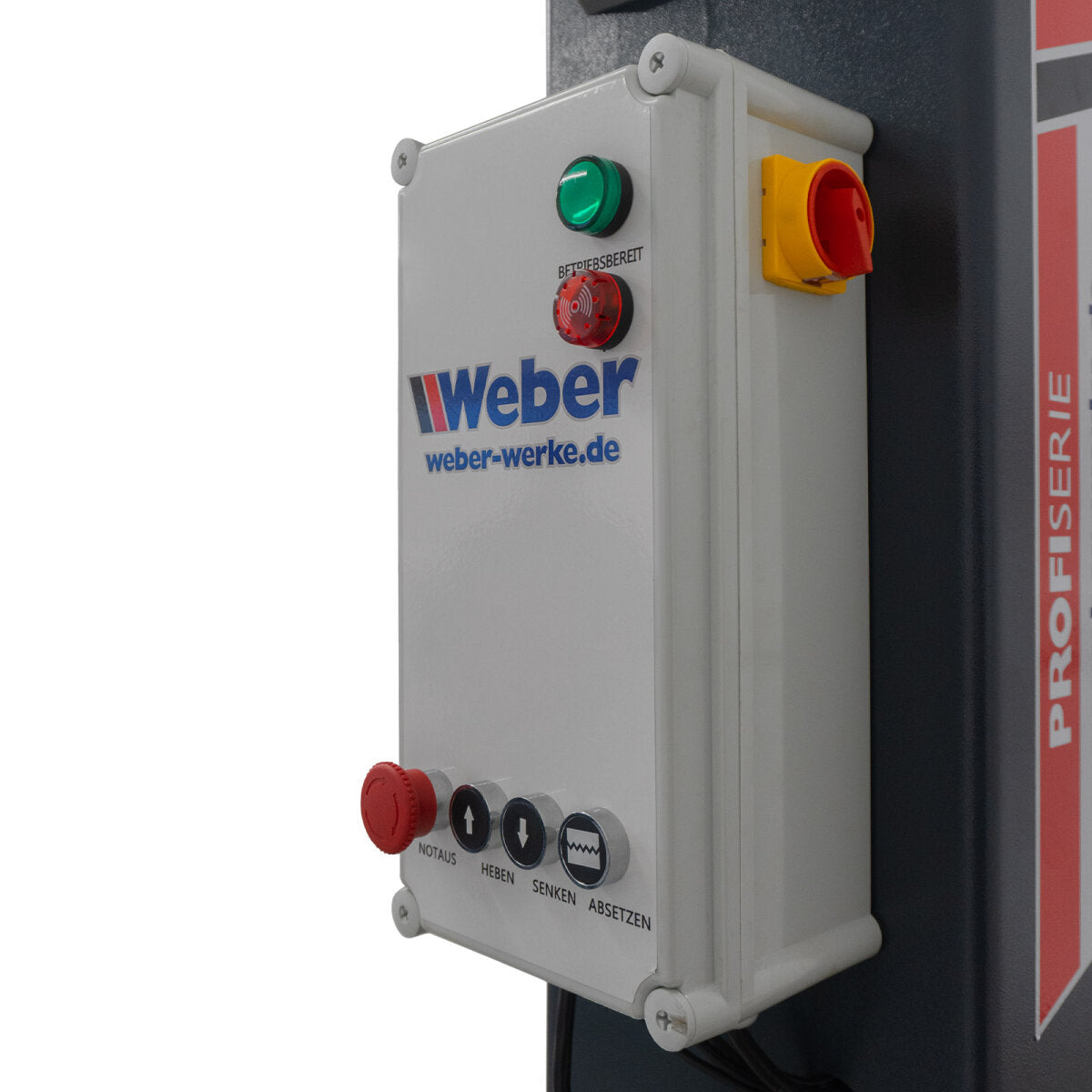

- Easy handling thanks to 24-volt safety push-button control (dead man's control)
- low swivel height
- Door protection rubbers on both pillars
- Wide passage, also suitable for small vans

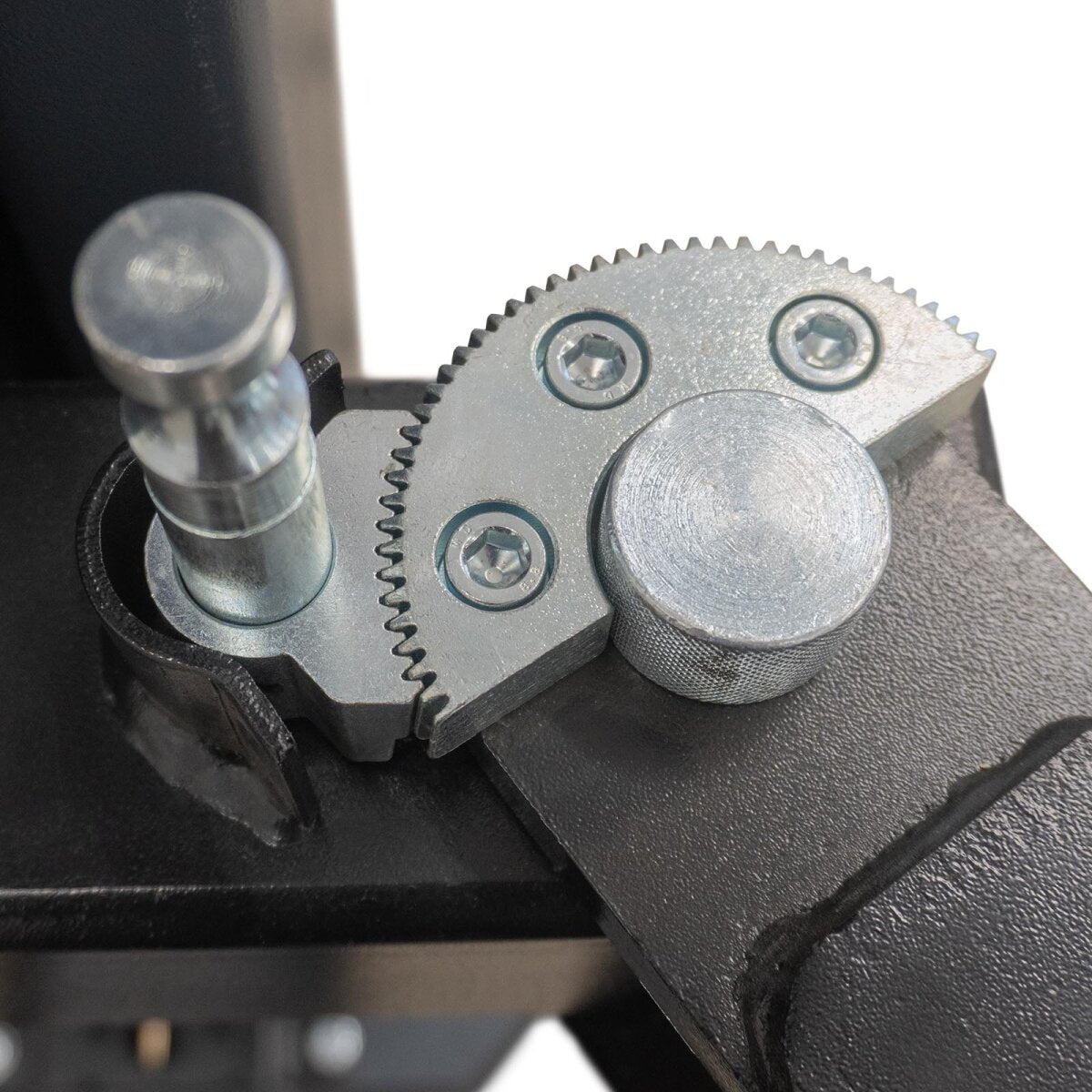

- Conically fine-toothed support arm locking mechanism, automatically and manually unlockable

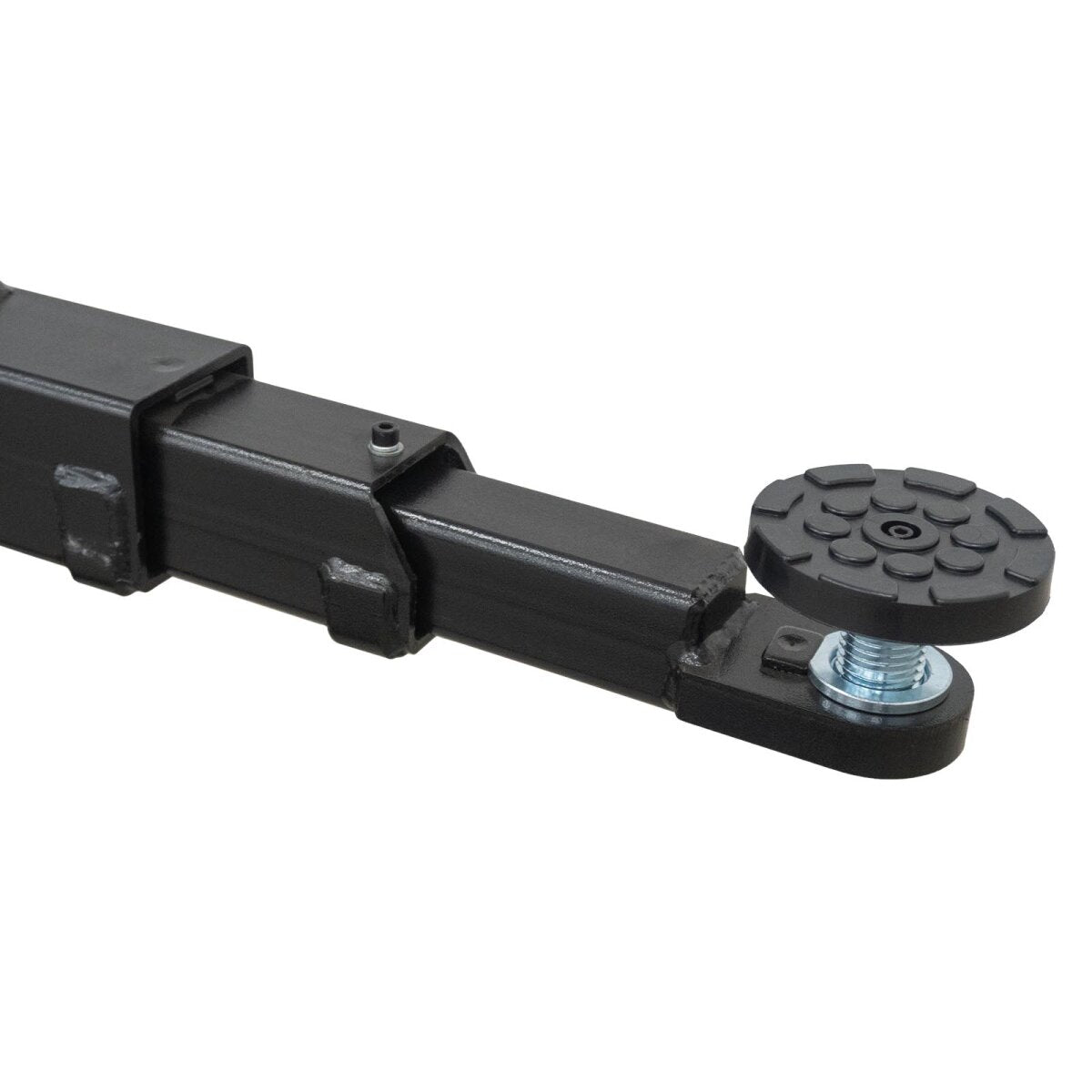

- Asymmetrical, 3-part support arms for large door opening angles
- low maintenance and wear
- powder-coated surfaces
- The main components of the stage are pre-assembled.
- Permissible load capacity 4200 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.
- Floor requirements according to current (in Germany permissible) structural analysis: concrete C20/25 DIN1045:2001-D7, double reinforced, with a minimum dimension of 4000 x 2000 x 200 mm.

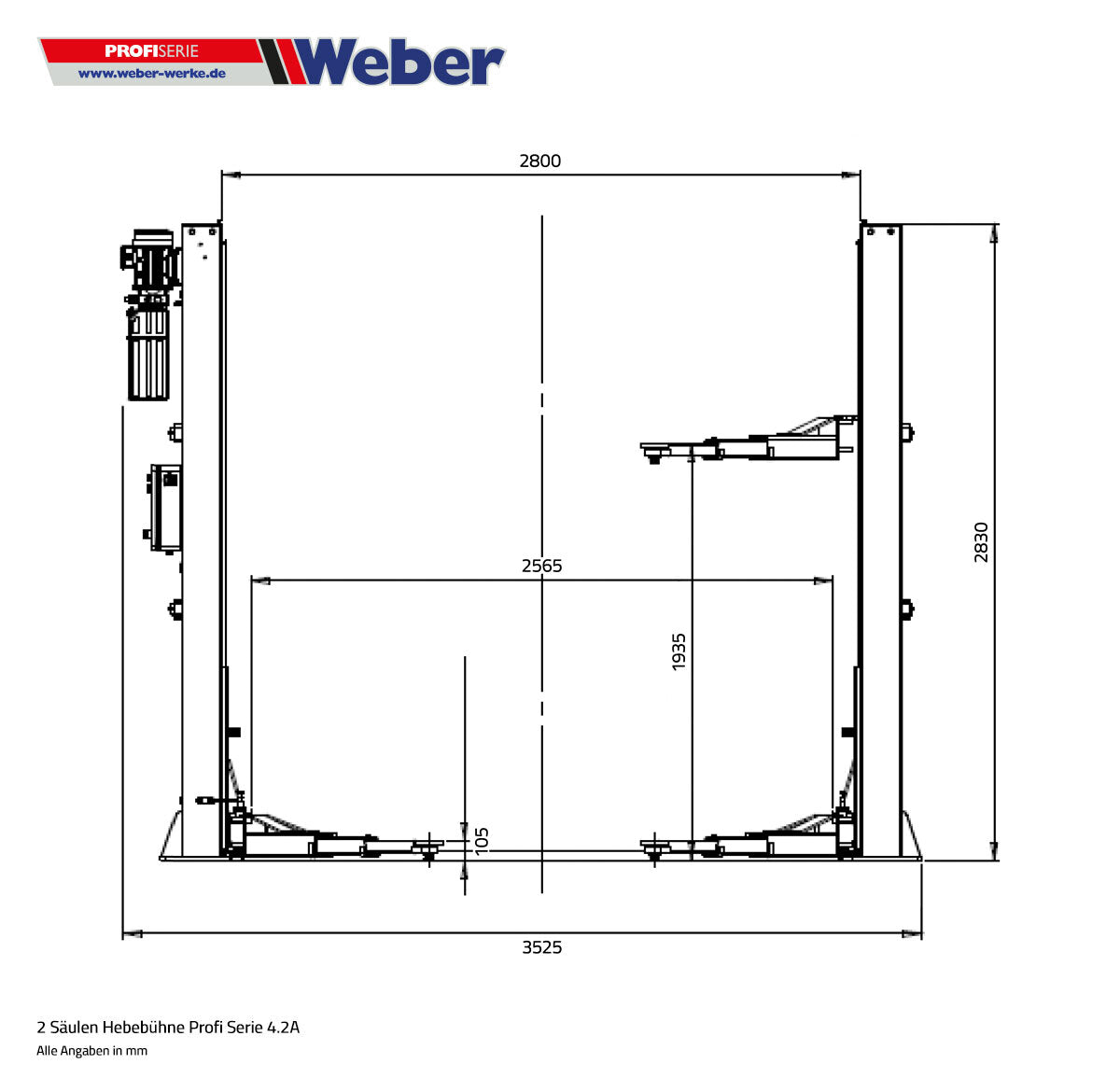

Technical data |
|
| Load capacity | 4200 kg |
| Underswing height | 105 mm |
| Maximum lifting height. | 1935 mm |
| Column height | 2830 mm |
| Required ceiling height | 3150 mm |
| Column spacing | 2800 mm |
| Passage width | 2565 mm |
| noise level | <75 dB |
| Installation width | 3525 mm |
| Length of long support arm | 795–1495 mm |
| Length of short support arm | 690–1190 mm |
| Engine power | 2.2 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Lift time | approx. 55 sec. |
| Dead weight | 650 kg |
| Drive-over plate height | 45 mm |
| Length of support arms | black – RAL 9017 |
| Color of column / drive-over plate | anthracite – RAL 7016 |
Product videos
Possible application area
* The applications for our lifting platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Weber GmbH accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +49 5654 343.

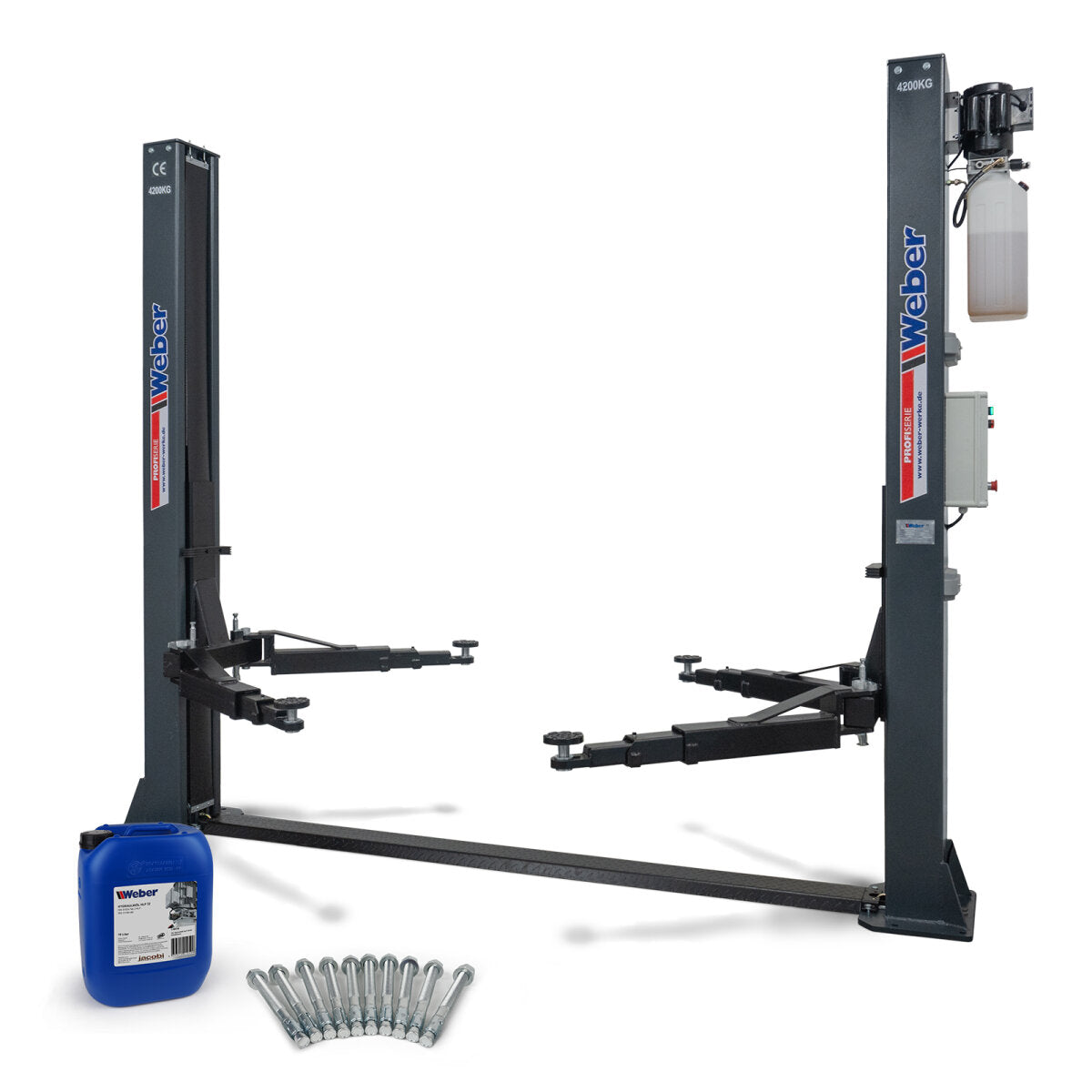

Scope of delivery
- 2-post lift as pictured
- 10 liters of hydraulic oil
- 1 set of heavy-duty anchors
- German assembly and operating instructions including test log.
Shipping dimensions
| Item weight | approx. 650.00 kg |
| length | approx. 295.00 cm |
| Width | approx. 53.00 cm |
| Height | approx. 83.00 cm |
