Two Post Lift "Spider" Weber Expert Series C-5S-XL
Two Post Lift "Spider" Weber Expert Series C-5S-XL
Two Post Lift "Spider" Weber Expert Series C-5S-XL
Two Post Lift "Spider" Weber Expert Series C-5S-XL
Two Post Lift "Spider" Weber Expert Series C-5S-XL
Two Post Lift "Spider" Weber Expert Series C-5S-XL
Save 25%

Two Post Lift "Spider" Weber Expert Series C-5S-XL

€ 8.855,00 € 11.825,00
Shipping calculated at checkout.
Payment & Security
  • American Express
  • Bancontact
  • Klarna
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Corporate Leasing
Flexible Business Terms
Fast Approval Process
Priority Support

Product Details

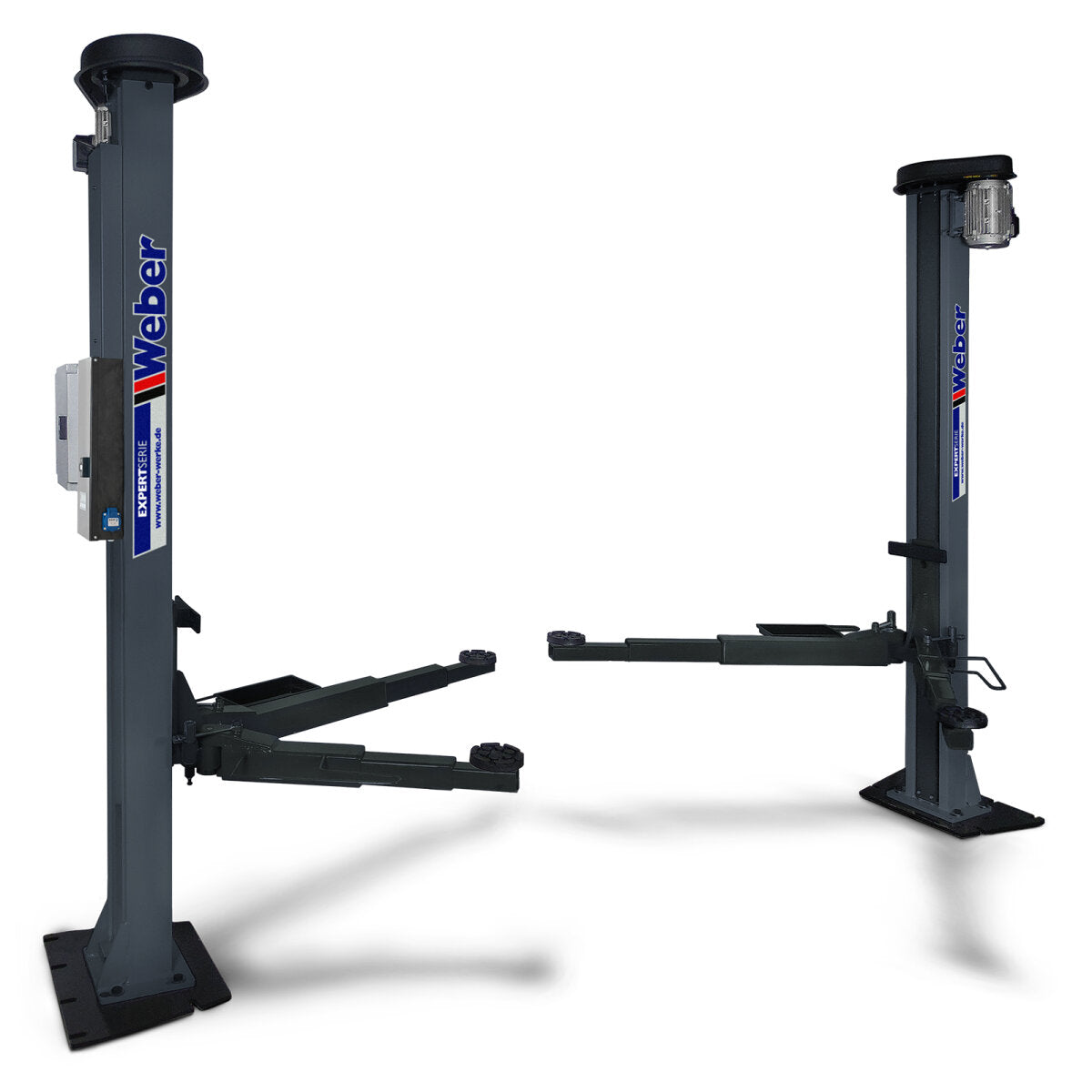

    Mechanical Two Post spindle lift with a 5000 kg lifting capacity, symmetrical lifting arms, automatic arm locking, and a 400 V electrical connection. The lift is partially pre-assembled, allowing for quick commissioning.

    Electromechanical Two Post spindle lift for lifting cars and small vans

    With a spindle diameter of 45 mm, we use the largest spindles/loading nuts on the market , resulting in less friction and therefore less wear. Provided that assembly and maintenance are carried out by an authorized service partner of Toolwiser.com, we offer a 5-year warranty on the loading nut and spindle . Our hot-rolled column profiles and lifting spindles are manufactured in Germany and represent a slim lifting column design, extremely solid and torsionally rigid. Simple design and robust technology combine to create a top-class lifting platform.

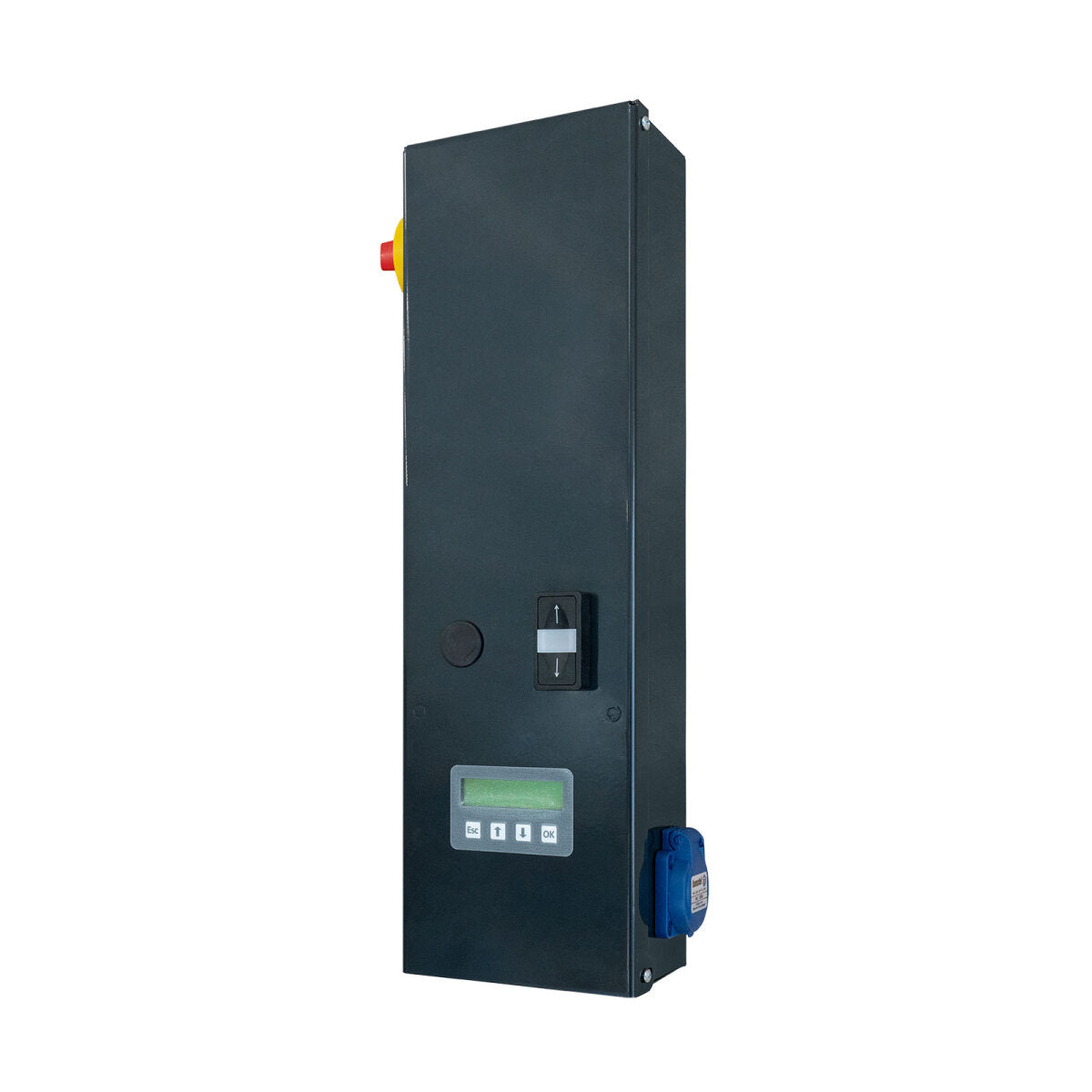

    • Variable positioning of the columns thanks to electronic synchronization of the two motors
    • Simple design and robust technology result in a lifting platform that makes no compromises.
    • Lifting and lowering via safety button allows for fine adjustment of the lifting height.
    • A very low column height of only 2590 mm allows for installation in low-ceilinged rooms.
    • large tool storage areas on the support arms
    • Automatic support arm locking mechanism, very finely adjustable via threaded rods
    • 3 sets of large support plates with rubber pads in different heights
    • The lifting tables feature durable ball bearings.
    • Cable guide tubes for connecting the two lifting columns are included in the scope of delivery (max. installation width 3100 mm and max. installation height 4250 mm, system can be shortened)
    • Automatic safety stop during lowering if an obstacle blocks the support arm.
    • Ideal recording area for cars and small vans
    • Door protection rubbers allow vehicle doors to be opened safely without damage.
    • A mechanical wear indicator prevents lifting if the support nut is worn, once the lifting platform has been completely lowered.
    • The main components of the lifting platform are pre-assembled.
    • Permissible load capacity 5000 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.

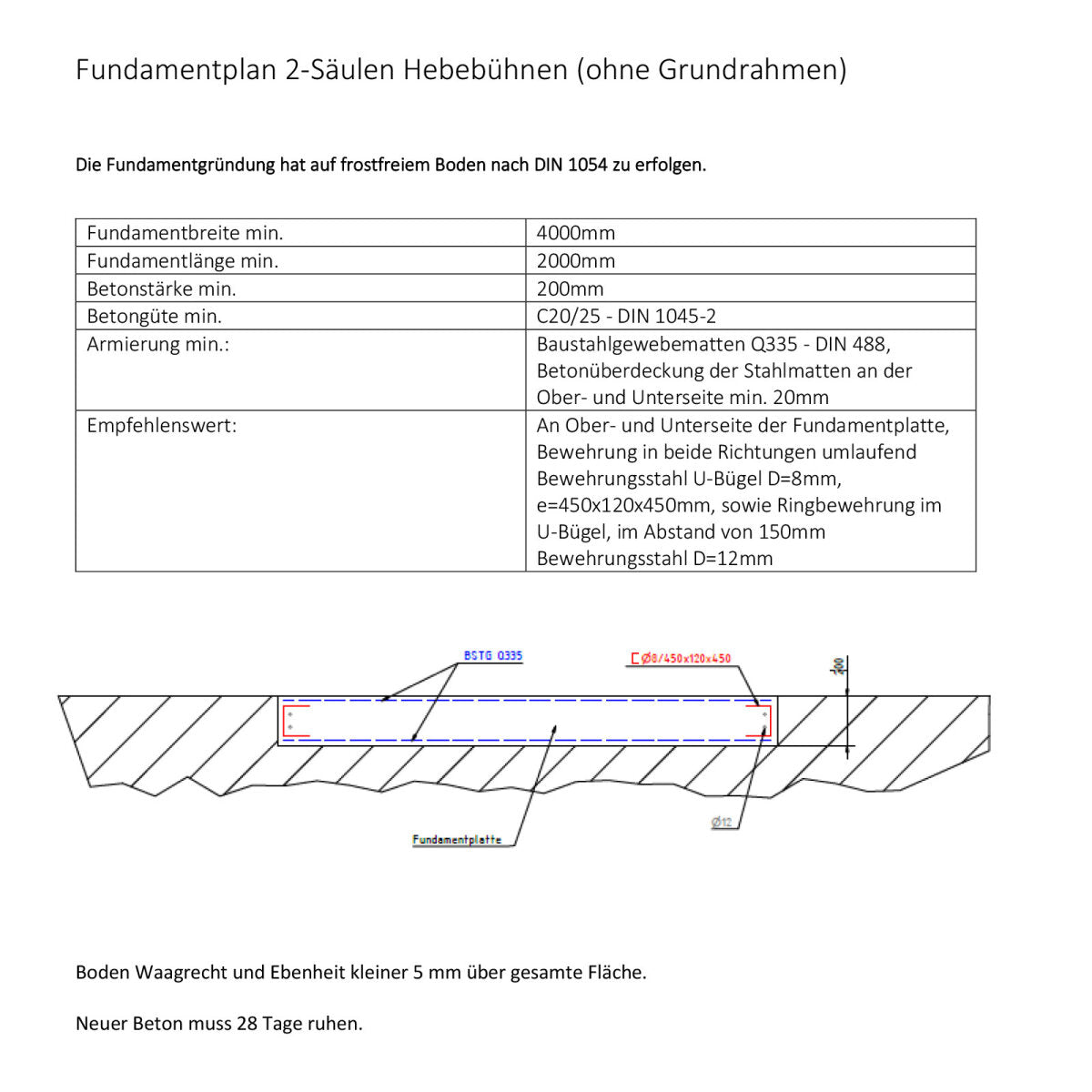

    • Floor requirements according to current (in Germany permissible) structural analysis: concrete C20/25 DIN1045:2001-D7, double reinforced, with a minimum dimension of 4000 x 2000 x 200 mm.

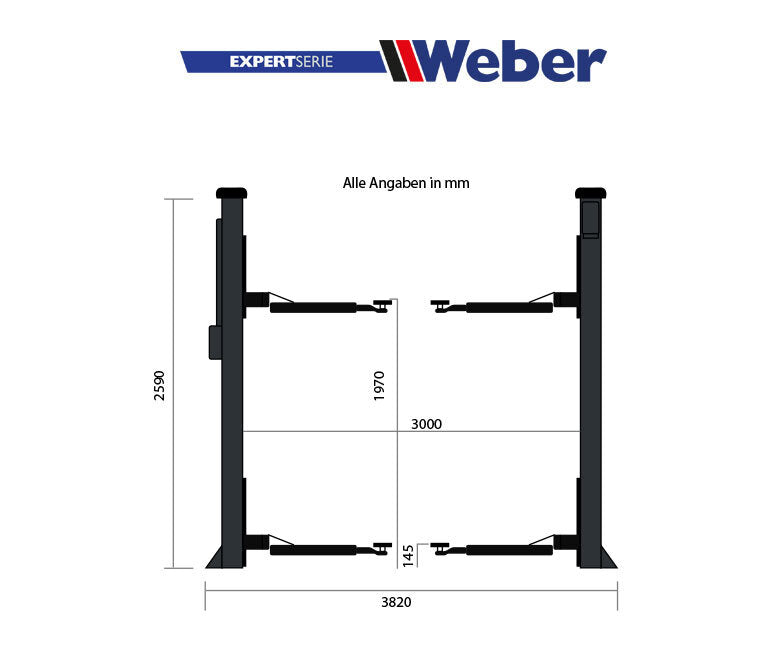

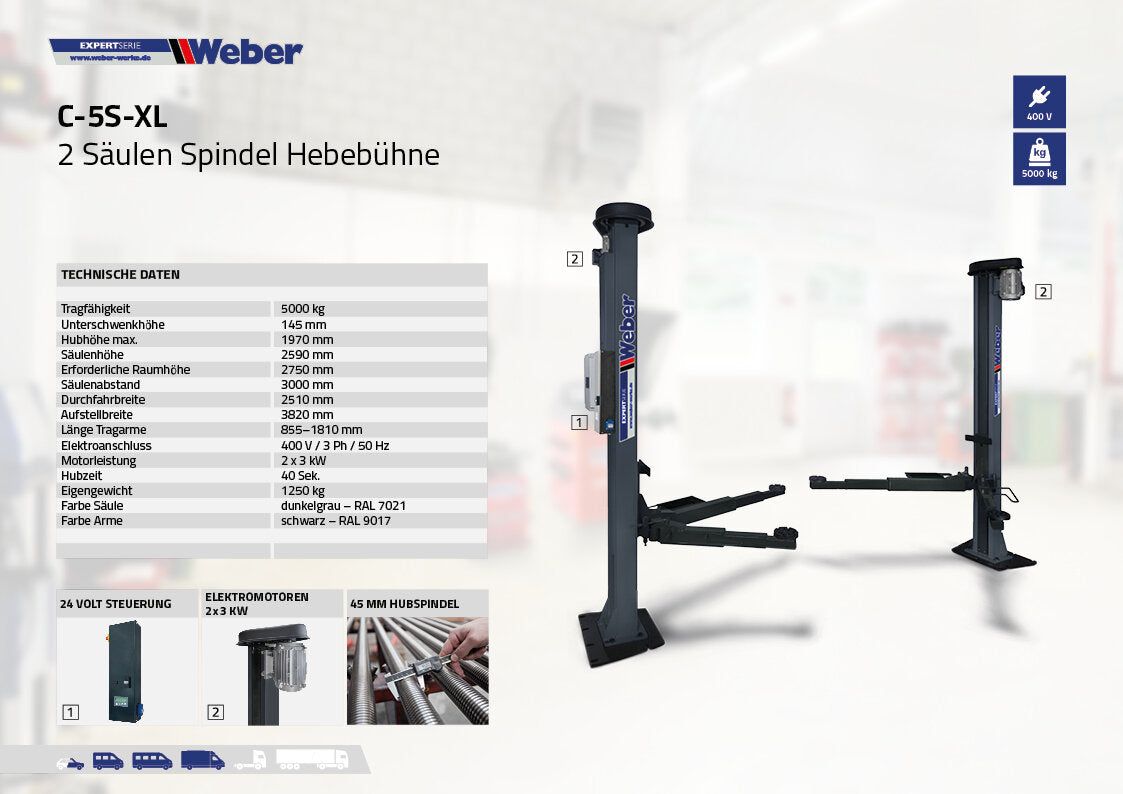

    Technical data
    Load capacity 5000 kg
    Underswing height 145 mm
    Maximum lifting height. 1970 mm
    Column height 2590 mm
    Required ceiling height 2750 mm
    Column spacing 3000 mm
    Passage width 2510 mm
    Installation width 3820 mm

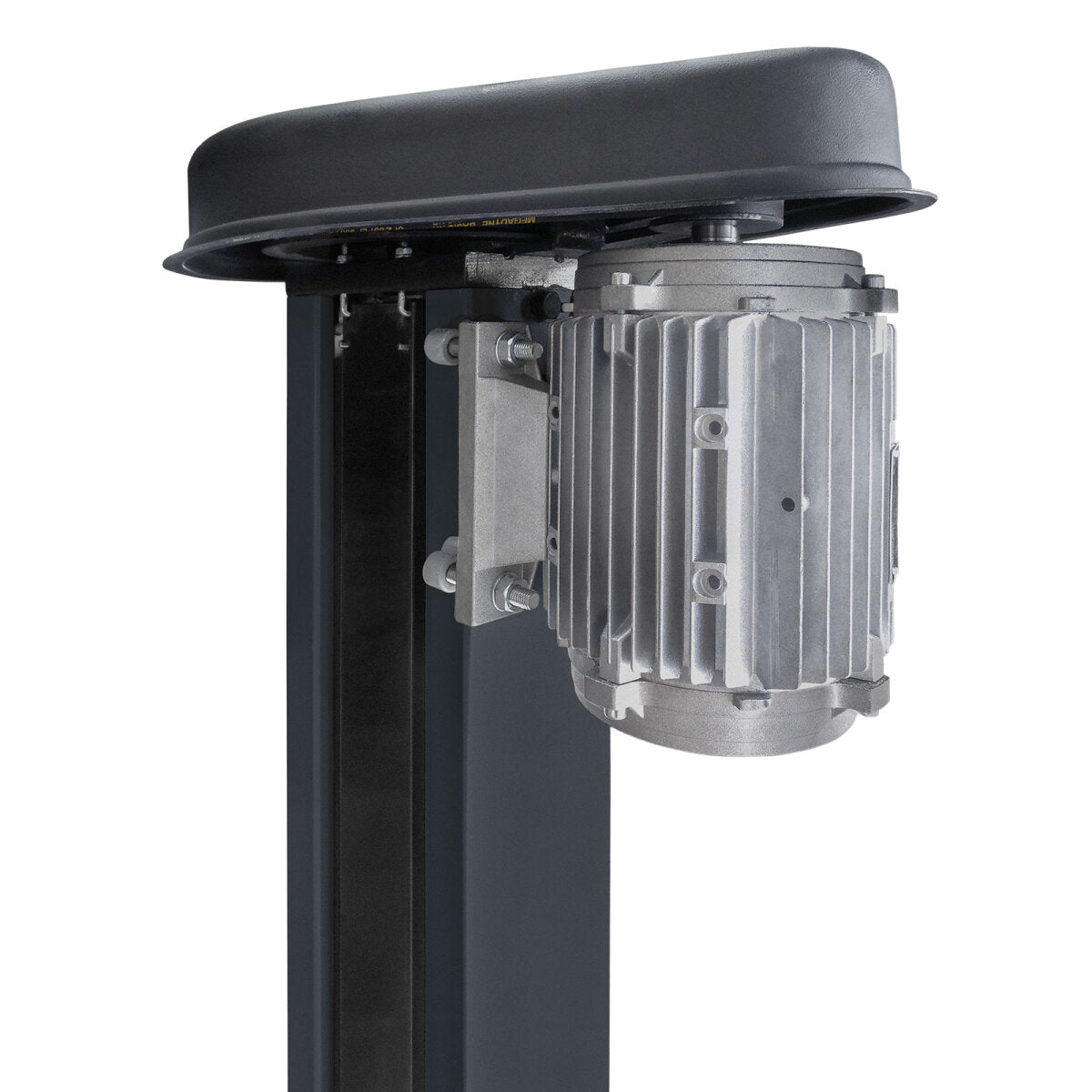

    Engine power 2 x 3 kW
    Electrical connection 400 V / 3 Ph / 50 Hz
    Lift time 40 seconds
    Dead weight 1250 kg
    Color column dark grey – RAL 7021
    Length of support arms 855–1810 mm
    Color Arms black – RAL 9017

    Possible application area

    * The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.

    Scope of delivery

    • Lifting platform as pictured
    • Cable routing for connecting both stages
    • 4 telescopic support arms with mounting plates
    • 1 small parts set
    • German assembly and operating instructions including test log.

    Shipping dimensions

    Shipping image Dimensions palette
    Shipping dimensions Package 1
    Item weight approx. 600.00 kg
    length approx. 270.00 cm
    Width approx. 90.00 cm
    Height approx. 65.00 cm
    Shipping dimensions Package 2
    Item weight approx. 600.00 kg
    length approx. 270.00 cm
    Width approx. 90.00 cm
    Height approx. 65.00 cm
