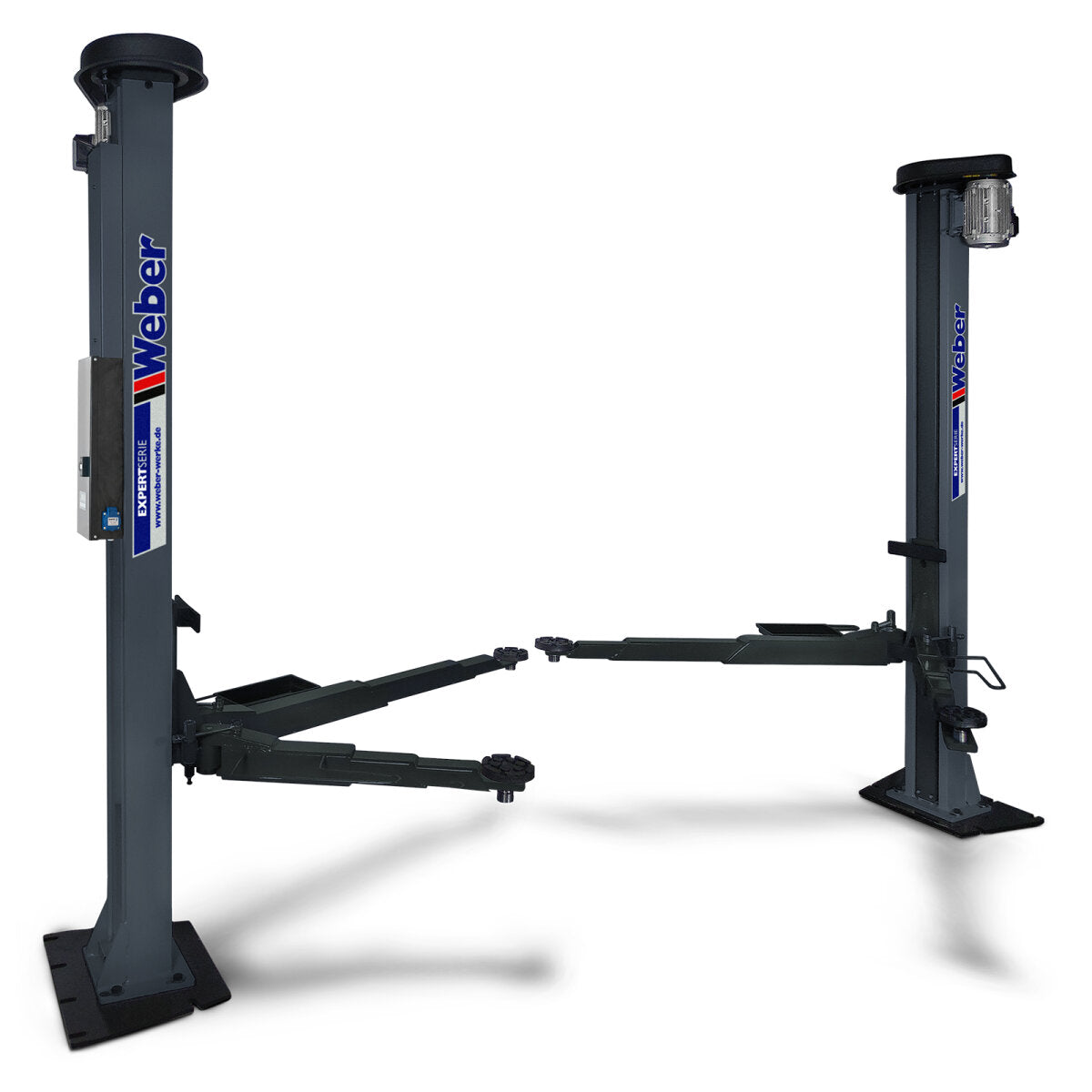

Two Post Lift "Spider" Weber Expert Series C-4S
Two Post Lift "Spider" Weber Expert Series C-4S
Two Post Lift "Spider" Weber Expert Series C-4S
Two Post Lift "Spider" Weber Expert Series C-4S
Save 25%

Two Post Lift "Spider" Weber Expert Series C-4S

€ 5.715,00 € 7.625,00
Shipping calculated at checkout.
Payment & Security
  • American Express
  • Bancontact
  • Klarna
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Corporate Leasing
Flexible Business Terms
Fast Approval Process
Priority Support

Product Details

    Mechanical Two Post spindle lift with a 4000 kg lifting capacity, symmetrical, double-telescoping lifting arms, automatic arm locking, and a 400 V electrical connection. The lift is partially pre-assembled, allowing for quick commissioning.

    Electromechanical Two Post spindle lift for lifting cars and small vans

    With a spindle diameter of 45 mm, we use the largest spindles/loading nuts on the market , resulting in less friction and therefore less wear. Provided that installation and maintenance are carried out by an authorized Toolwiser.com service partner, we offer a 5-year warranty on the loading nut and spindle . Our hot-rolled column profiles and lifting spindles are manufactured in Germany and represent a slim, extremely solid, and torsionally rigid lifting column design. Simple design and robust technology combine to create a top-of-the-line lifting platform.

    • Variable column spacing thanks to electronic synchronization of the two motors
    • Simple design and robust technology result in a lifting platform that makes no compromises.
    • Lifting and lowering via safety button allows for fine adjustment of the lifting height.
    • A very low column height of only 2435 mm allows for installation in low-ceilinged rooms.
    • Symmetrical support arms, double telescopic, for large door opening angles
    • large tool storage areas on the support arms
    • Automatic support arm locking mechanism, very finely adjustable via threaded rods
    • Large support plates with rubber padding, height-adjustable by turning.
    • The lifting tables feature durable ball bearings.
    • Cable guide tubes for connecting the two lifting columns are included in the scope of delivery (max. installation width 3350 mm and max. installation height 2600 mm, system can be shortened)
    • Automatic safety stop during lowering if an obstacle blocks the support arm
    • Ideal recording area for cars and small vans
    • Door protection rubbers allow vehicle doors to be opened safely without damage.
    • A mechanical wear indicator prevents lifting if the support nut is worn, once the lifting platform has been completely lowered.
    • The main components of the lifting platform are pre-assembled.
    • Permissible load capacity 4000 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.

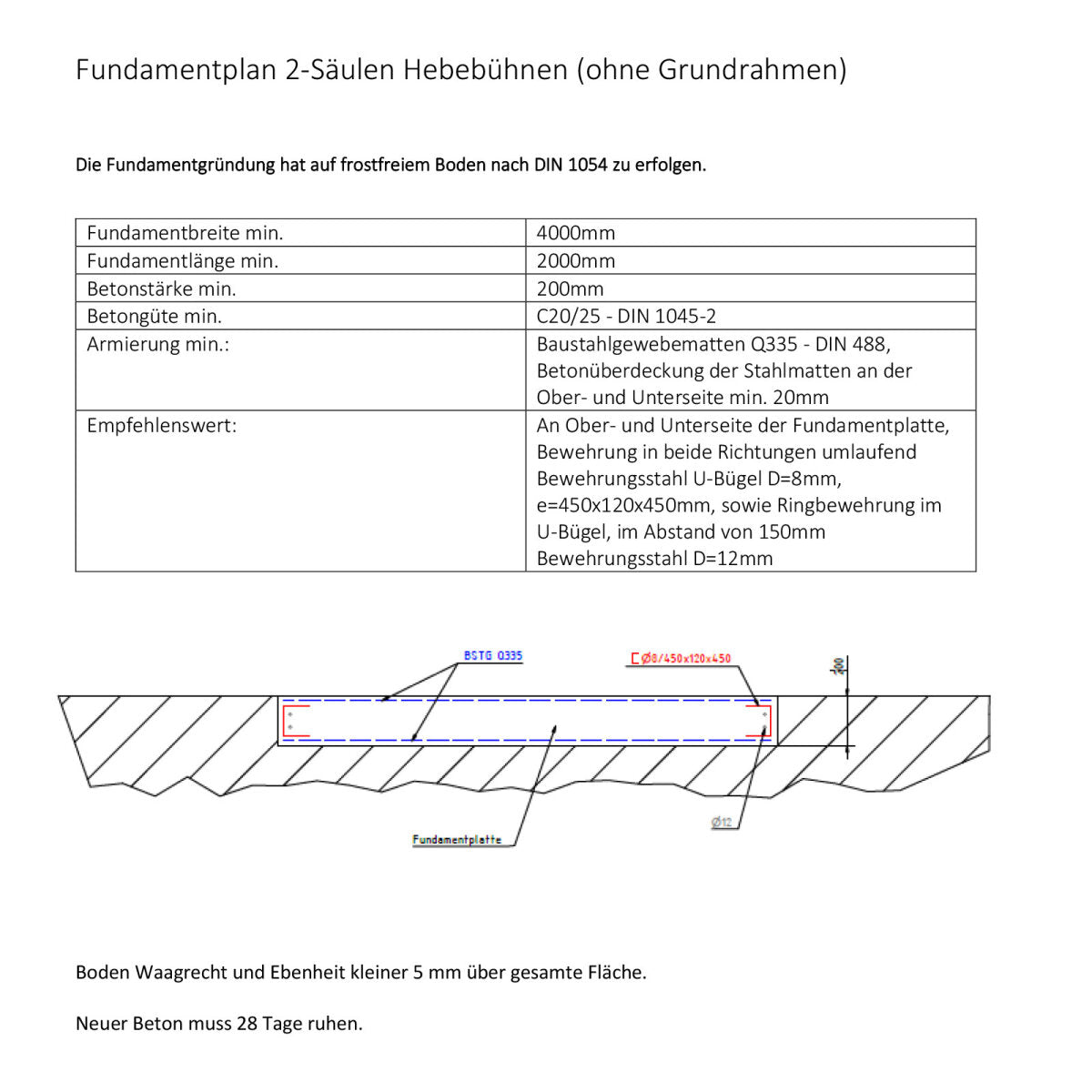

    • Floor requirements according to current (in Germany permissible) structural analysis: concrete C20/25 DIN1045:2001-D7, double reinforced, with a minimum dimension of 4000 x 2000 x 200 mm.

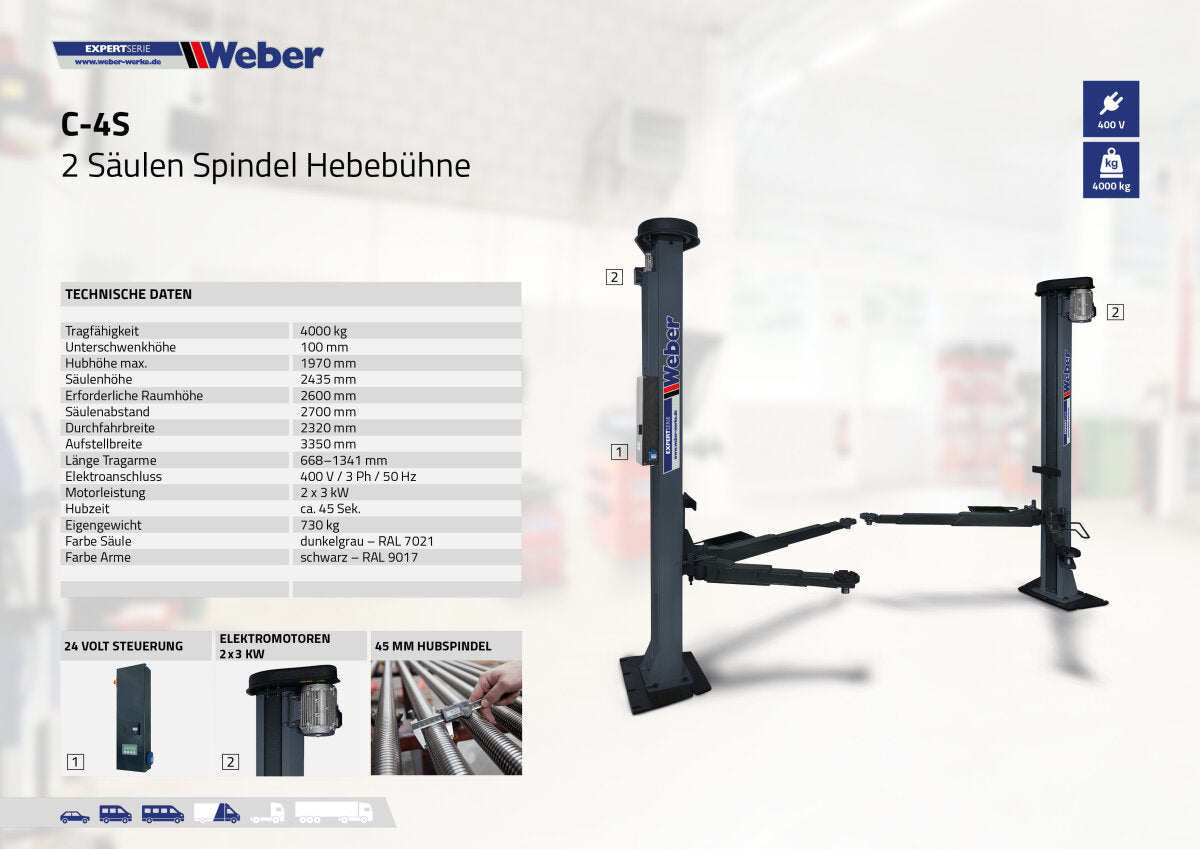

    Technical data
    Load capacity 4000 kg
    Underswing height 100 mm
    Maximum lifting height. 1970 mm
    Column height 2435 mm
    Required ceiling height 2600 mm
    Column spacing 2700 mm
    Passage width 2320 mm
    Installation width 3350 mm
    Engine power 2 x 3 kW
    Electrical connection 400 V / 3 Ph / 50 Hz
    Lift time approx. 45 sec.
    Dead weight 730 kg
    Color column dark grey – RAL 7021
    Length of support arms 668–1341 mm
    Color Arms black – RAL 9017

    Possible application area

    * The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.

    Scope of delivery

    • Lifting platform as pictured
    • Cable routing for connecting both stages
    • 4 telescopic support arms with mounting plates
    • a small parts set
    • Assembly and operating instructions including test log

    Shipping dimensions

    Shipping image Dimension lift
    Item weight approx. 730.00 kg
    length approx. 257.00 cm
    Width approx. 78.00 cm
    Height approx. 60.00 cm
