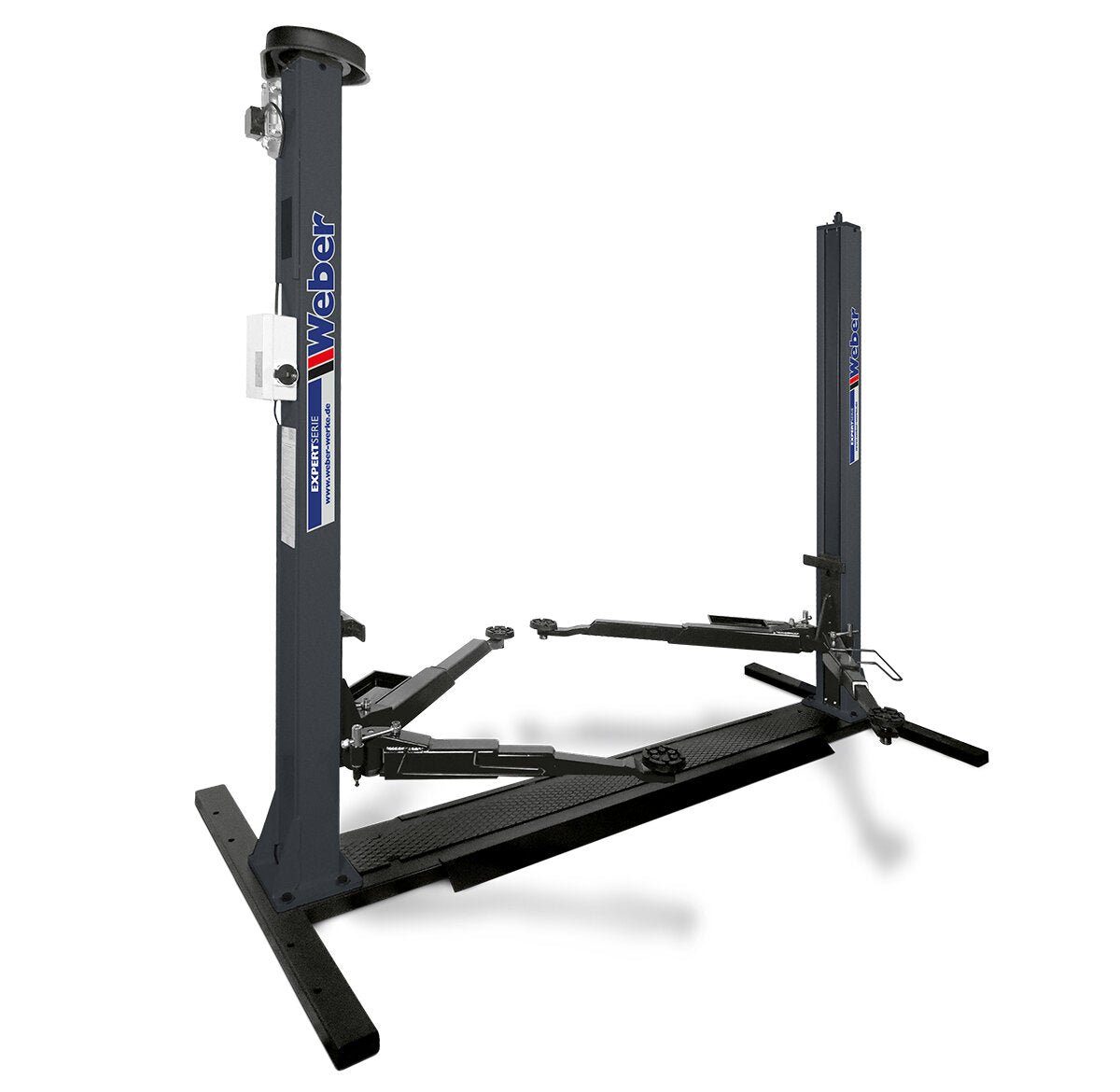

Two Post Lift "Spider" Weber Expert Series C-2.32A
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
- Simple design and robust technology result in a lifting platform that makes no compromises.

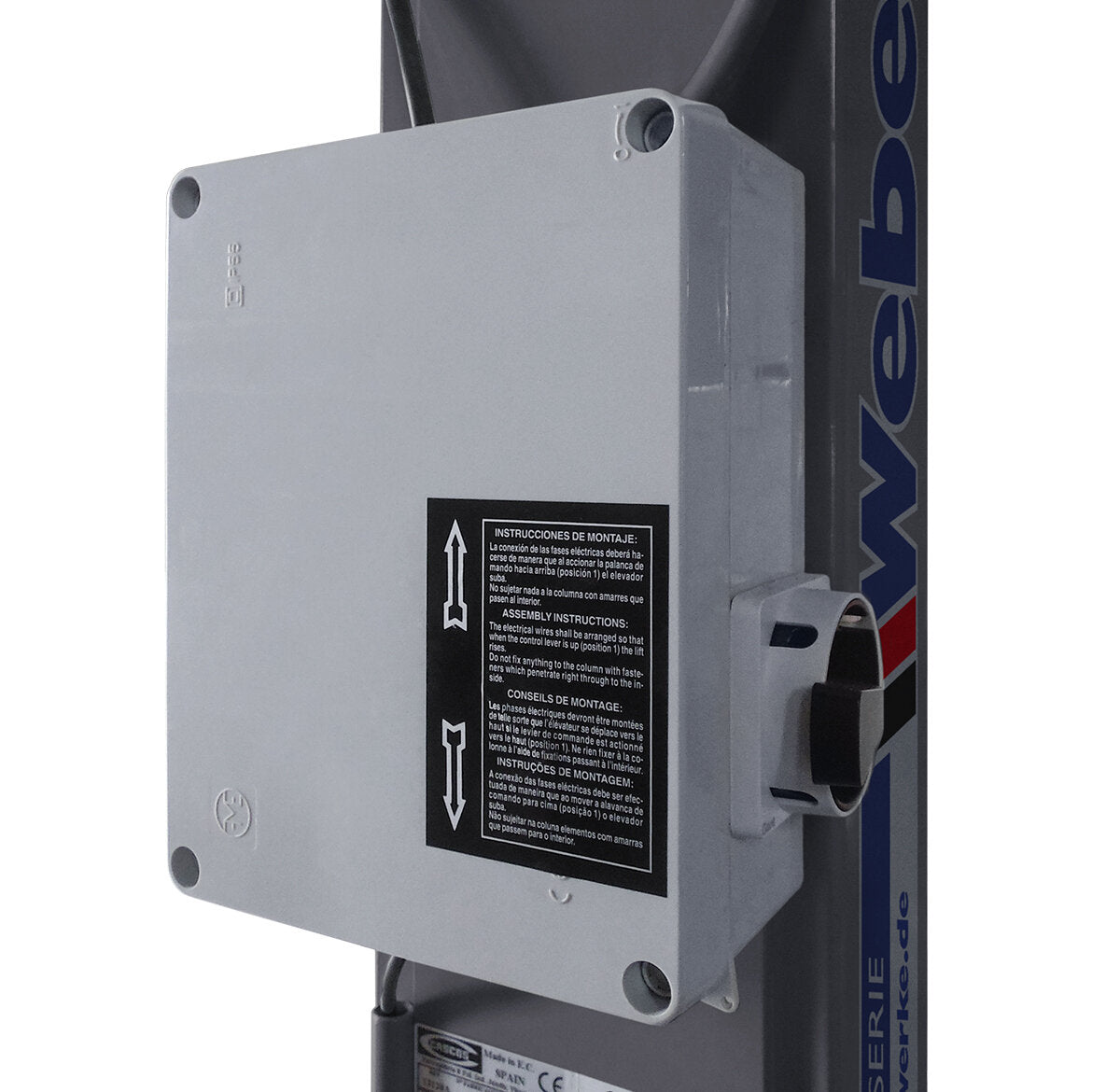

- Lifting and lowering via safety button allows for fine adjustment of the lifting height.
- The maximum lifting and lowering height is adjustable via a mechanism; in low-ceiling workshops, this allows you to protect your vehicles from damage.
- A very low column height of only 2435 mm allows for installation in low-ceilinged rooms.
- Asymmetrical support arms for large door opening angles, short arms double telescopic
- large tool storage areas on the long support arms
- Automatic support arm locking mechanism, very finely adjustable via threaded rods
- Large support plates with rubber padding, height-adjustable by turning (double adjustment).
- The lifting tables feature durable ball bearings.
- Cable guide tubes for connecting the two lifting columns are included in the scope of delivery (max. installation width 3100 mm and max. installation height 4250 mm, system can be shortened)
- Automatic safety stop during lowering if an obstacle blocks the support arm.
- Ideal recording area for cars and small vans
- The power transmission between the two lifting columns is via chain drive.
- Door protection rubbers allow vehicle doors to be opened safely without damage.
- A mechanical wear indicator prevents lifting if the support nut is worn, once the lifting platform has been completely lowered.
- The main components of the lifting platform are pre-assembled.
- Permissible load capacity 3200 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.

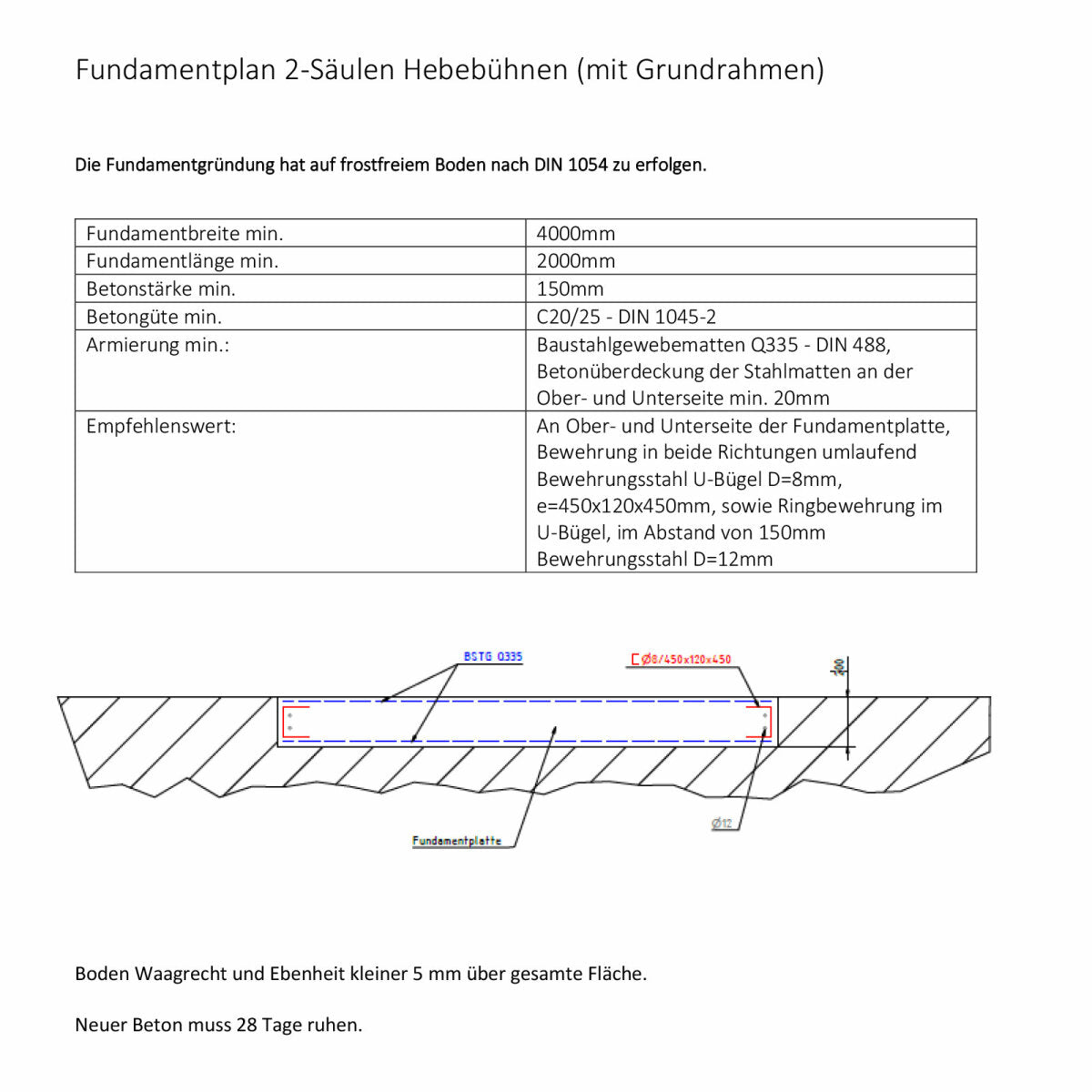

- Floor requirements according to current (in Germany permissible) structural analysis: concrete C20/25 DIN1045:2001-D7, double reinforced, with a minimum dimension of 4000 x 2000 x 150 mm.

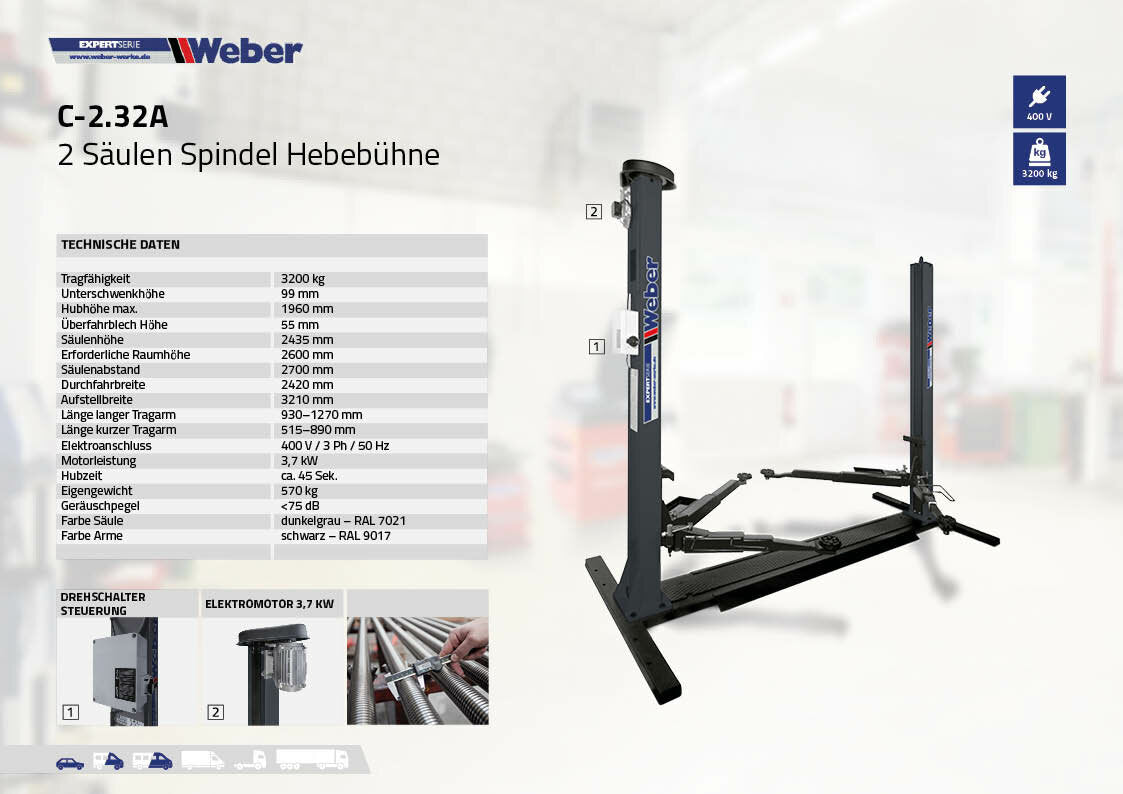

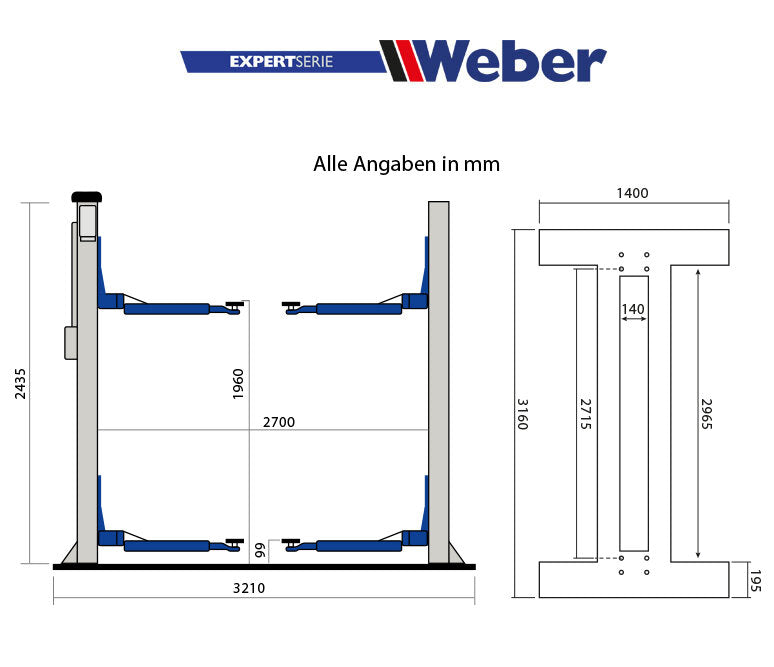

Technical data | |
| Load capacity | 3200 kg |
| Underswing height | 99 mm |
| Maximum lifting height. | 1960 mm |
| Column height | 2435 mm |
| Required ceiling height | 2600 mm |
| Column spacing | 2700 mm |
| Passage width | 2420 mm |
| noise level | <75 dB |
| Installation width | 3210 mm |
| Length of long support arm | 930–1270 mm |
| Length of short support arm | 515–890 mm |

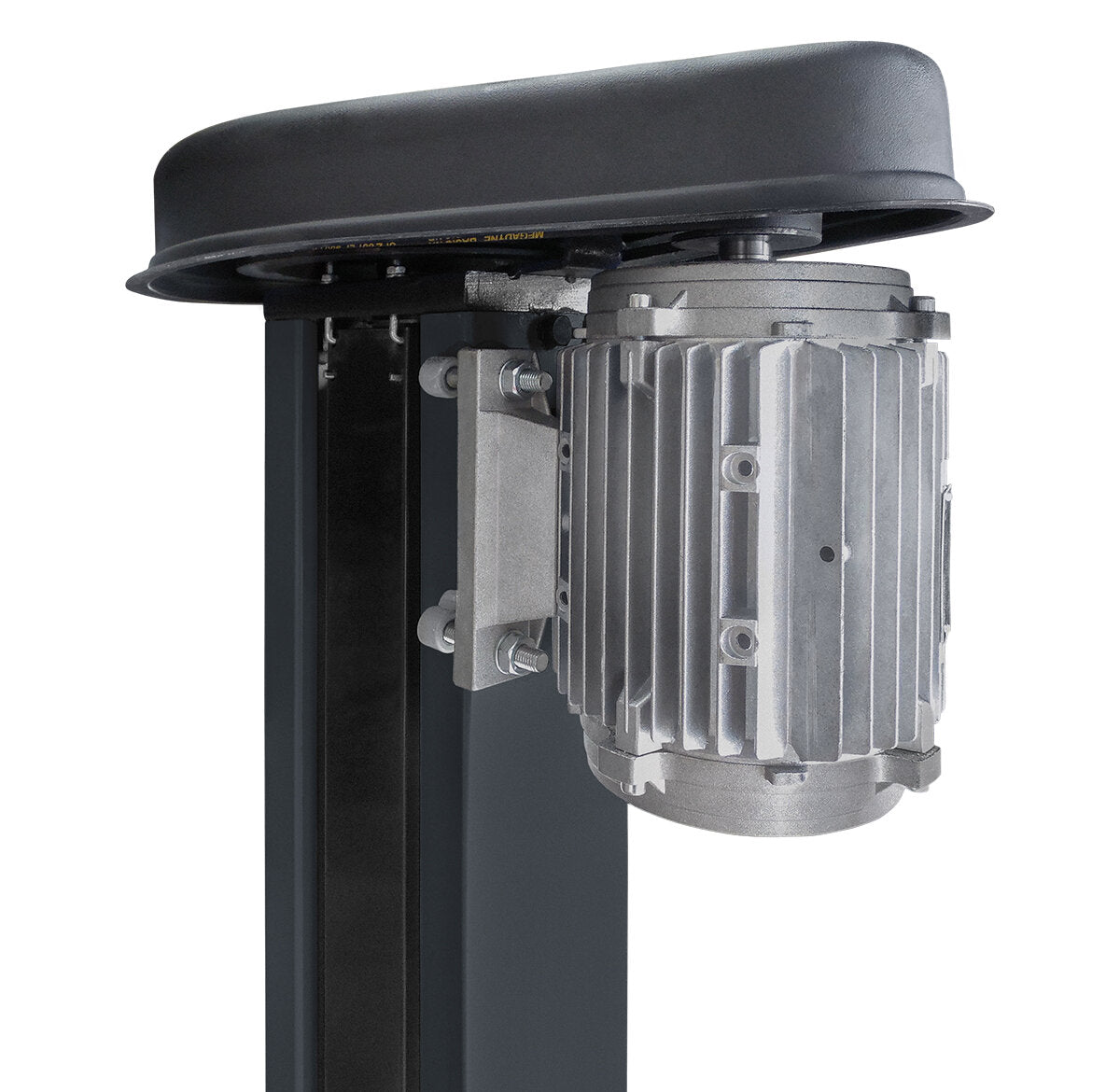

| Engine power | 3.7 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | approx. 45 sec. |
| Dead weight | 570 kg |
| Color column | dark grey – RAL 7021 |
| Drive-over plate height | 55 mm |
| Color Arms | black – RAL 9017 |
Possible application area
* The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.
Scope of delivery
- Lifting platform as pictured
- 4 telescopic support arms with mounting plates
- a small parts set
- German assembly and operating instructions including test log.
Shipping dimensions
| Item weight | approx. 570.00 kg |
| length | approx. 250.00 cm |
| Width | approx. 62.00 cm |
| Height | approx. 57.00 cm |
