Two Post Lift "Spider" Weber Expert Series C-2.30
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details

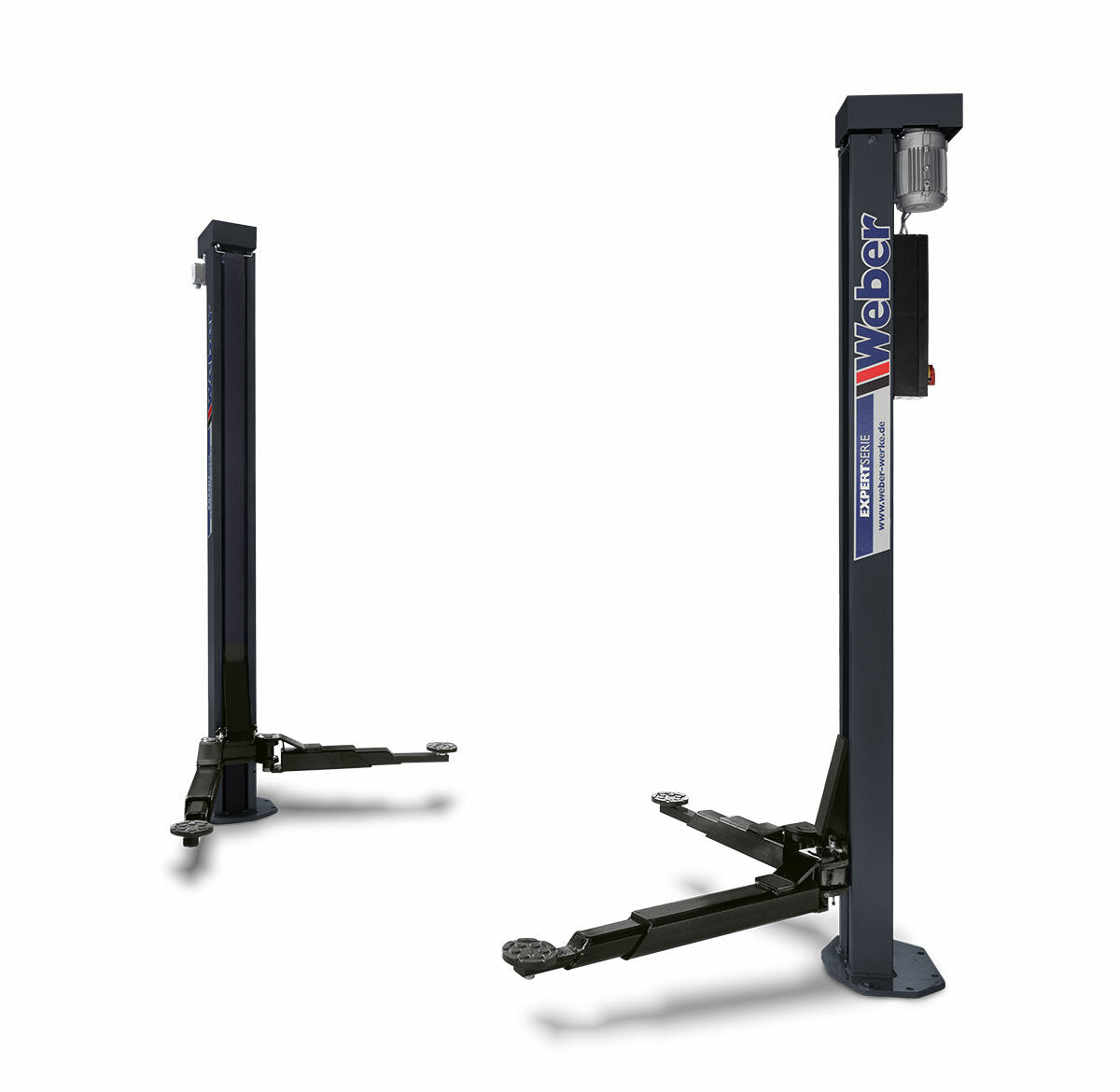

Our entry-level spindle lift, the Weber Expert Series C-2.30, is ideally suited for users who value minimal space requirements combined with maximum flexibility and functionality, thanks to its robust yet slim design and reliable technology. The lift can be set up and used without a fixed connection between the columns, thanks to two electronically synchronized electric motors. Despite their slim profile, the hot-rolled columns are extremely solid and torsionally rigid, allowing for the support of a wide variety of vehicle models. With a column height of 2550 mm, the lift can also be conveniently installed in rooms with low ceilings and workshops.

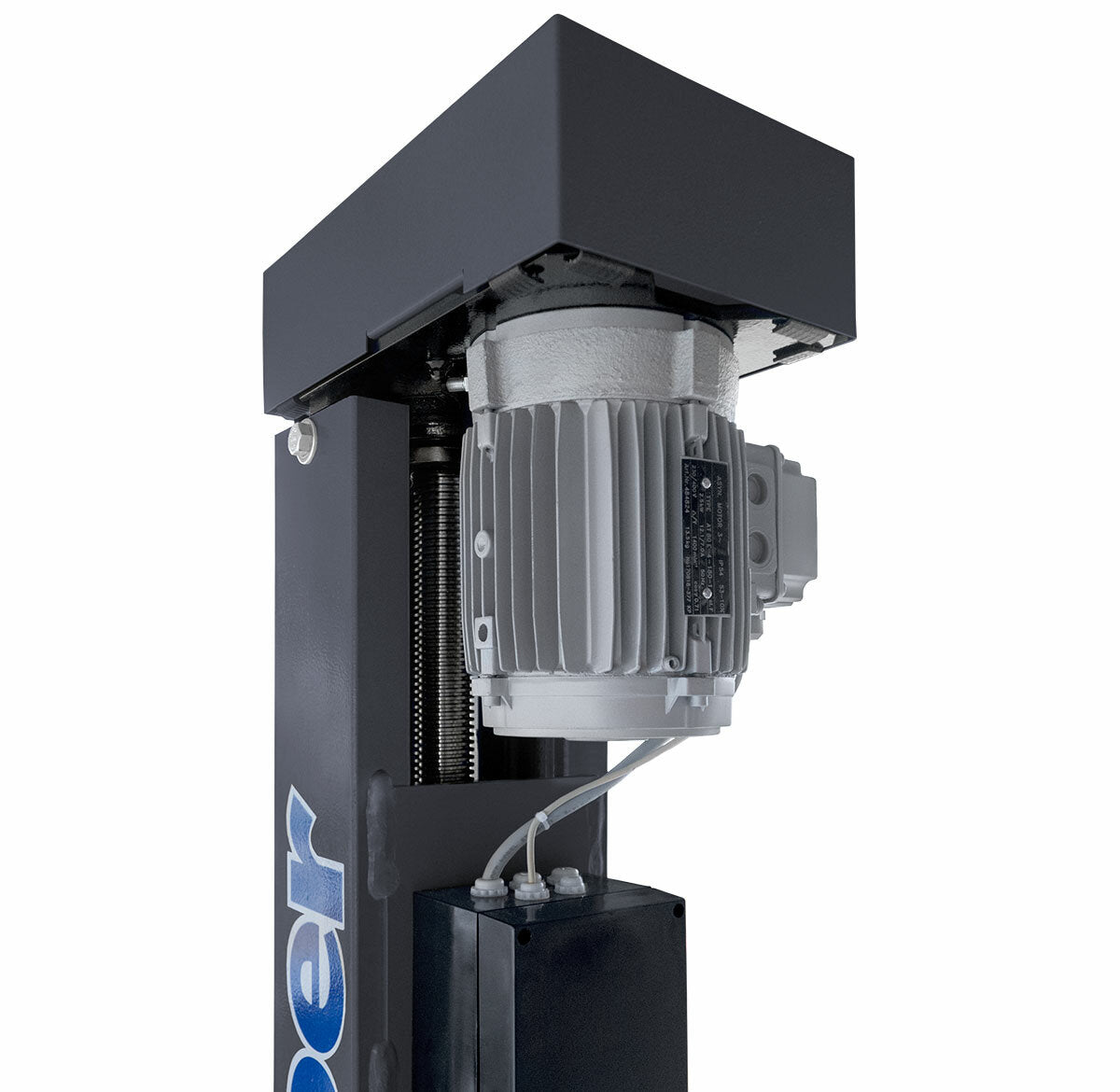

- Flexible column spacing through variable column positioning thanks to electronic synchronization of the two motors
- Hot-rolled column profiles in a slim design, extremely solid and torsionally rigid
- Lifting columns rotated by 30°, making it easier to open the vehicle door.

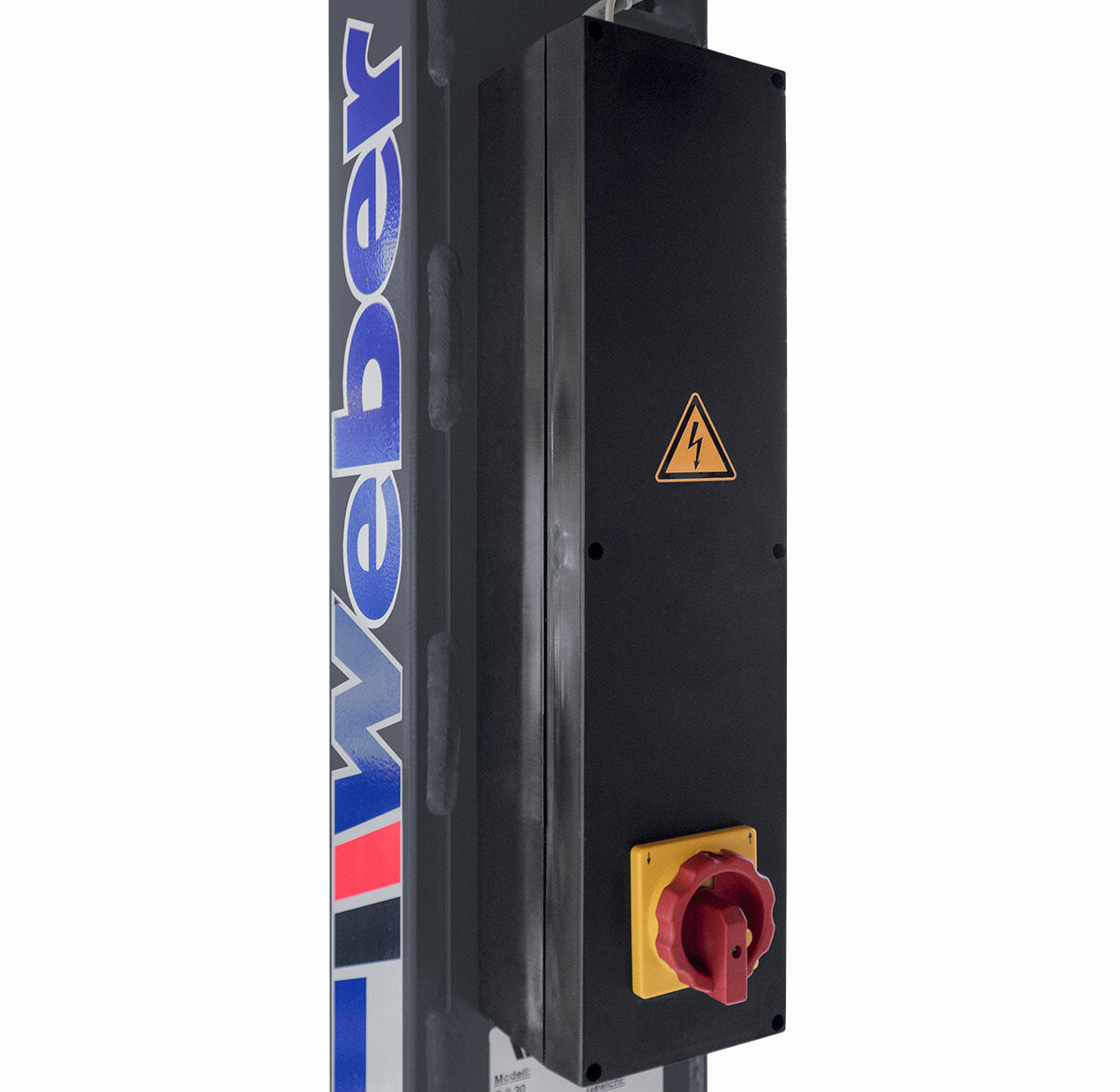

- Lifting and lowering via reversing contactor control allows for fine adjustment of the lifting height.
- A very low column height of only 2550 mm allows for installation in low-ceilinged rooms.

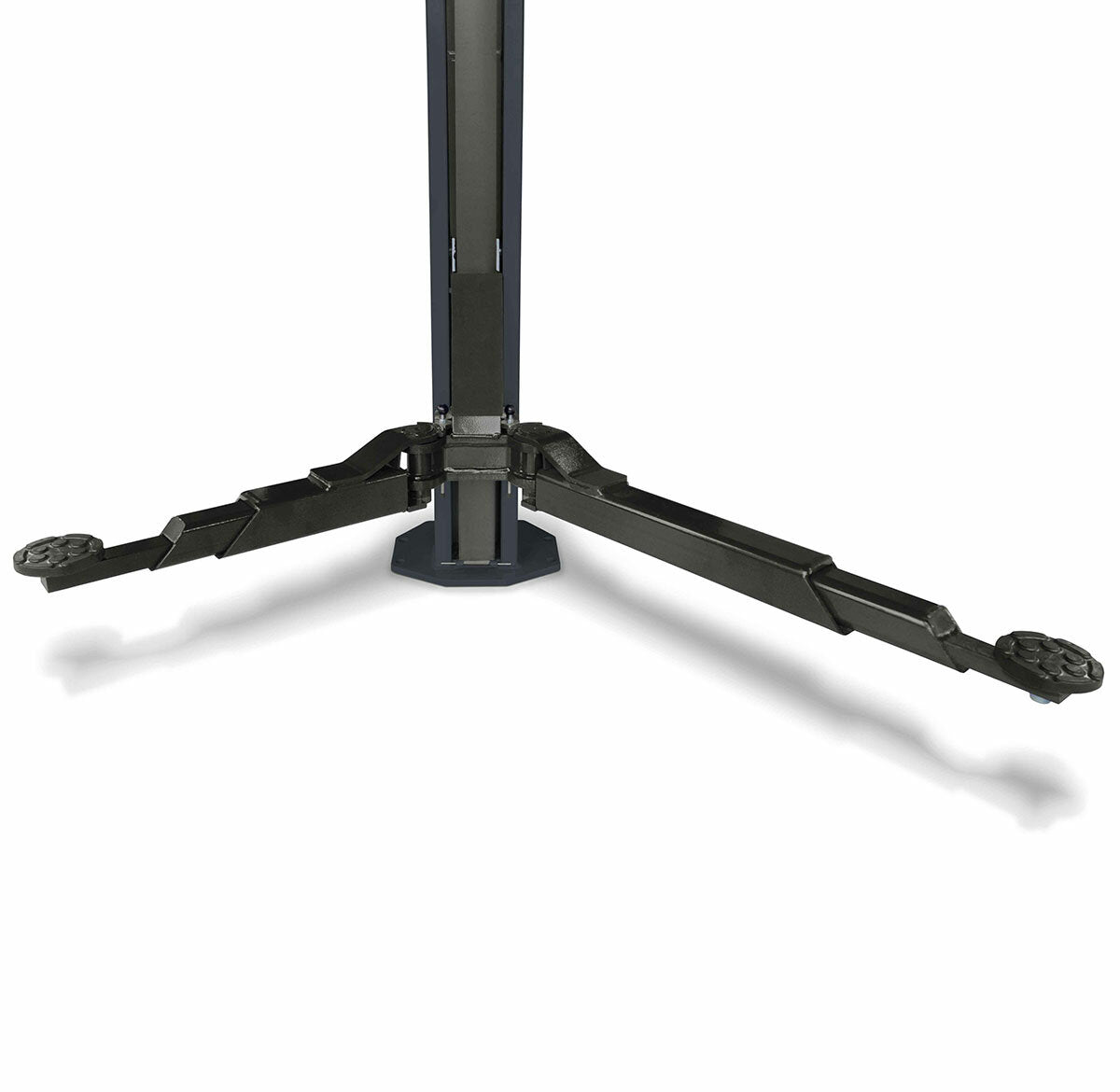

- Asymmetrical support arms for large door opening angles
- Automatic support arm locking mechanism with manual release option
- Large support plates with rubber padding, height-adjustable by turning.
- The lifting tables feature durable ball bearings.
- Cable guide tubes for connecting the two lifting columns are included in the scope of delivery.
- Safety signal tone sounds when lowering in the foot area
- Door protection rubbers allow vehicle doors to be opened safely without damage.
- A mechanical wear indicator prevents lifting if the support nut is worn, once the lifting platform has been completely lowered.
- The main components of the lifting platform are pre-assembled.
- Permissible load capacity 3000 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.

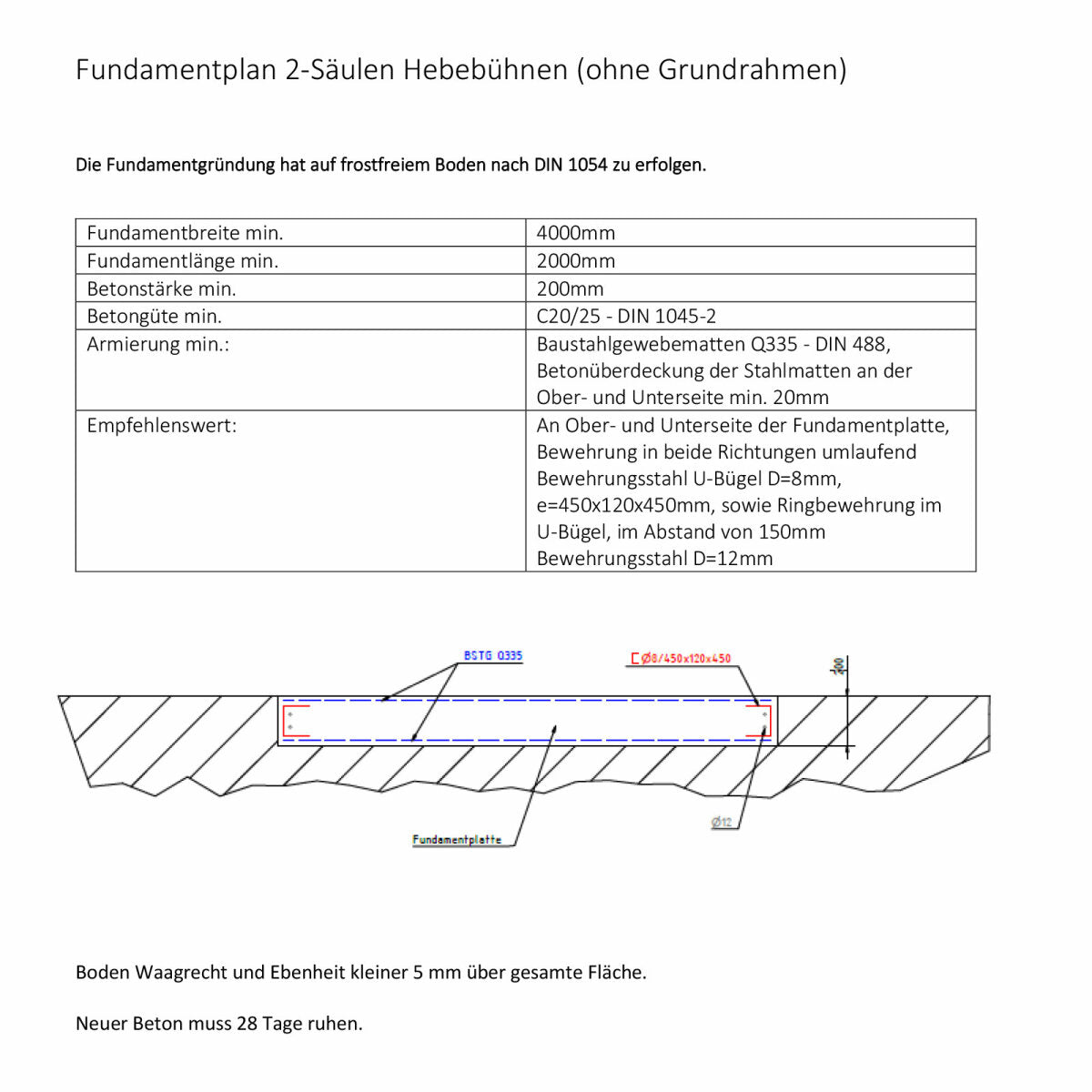

- Floor requirements according to current (in Germany permissible) structural analysis: concrete C20/25 DIN1045:2001-D7, double reinforced, with a minimum dimension of 4000 x 2000 x 200 mm.

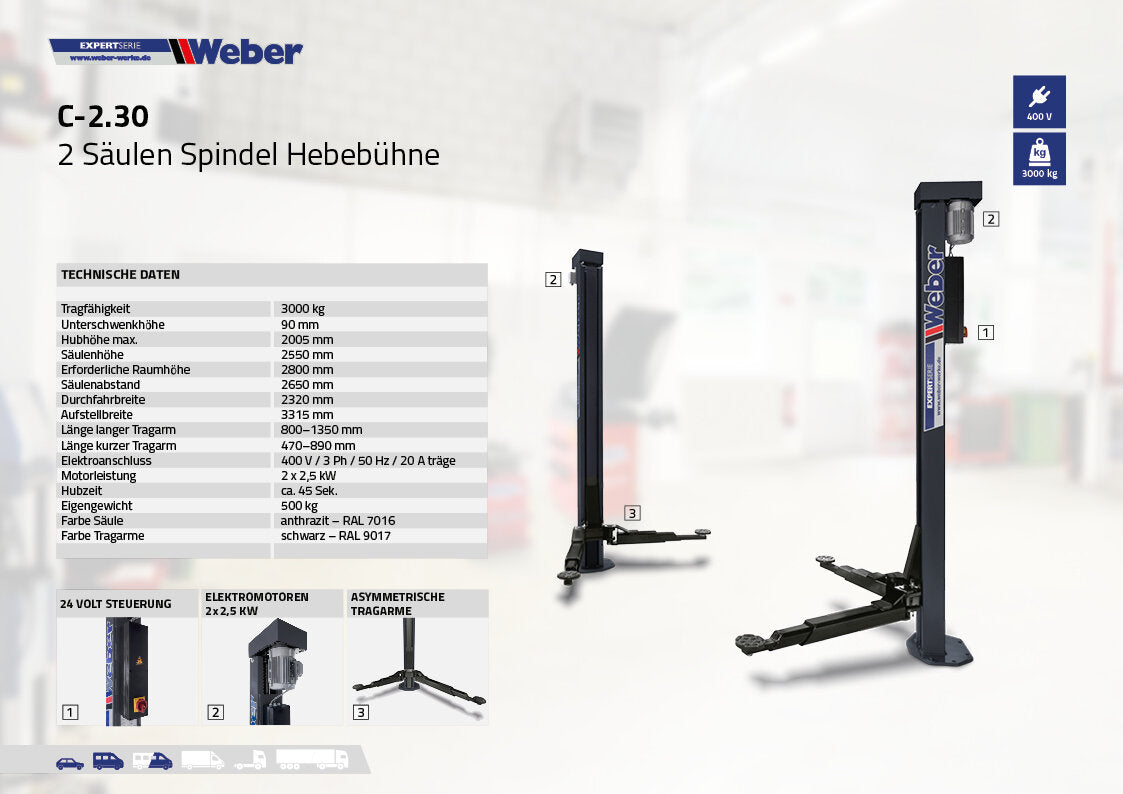

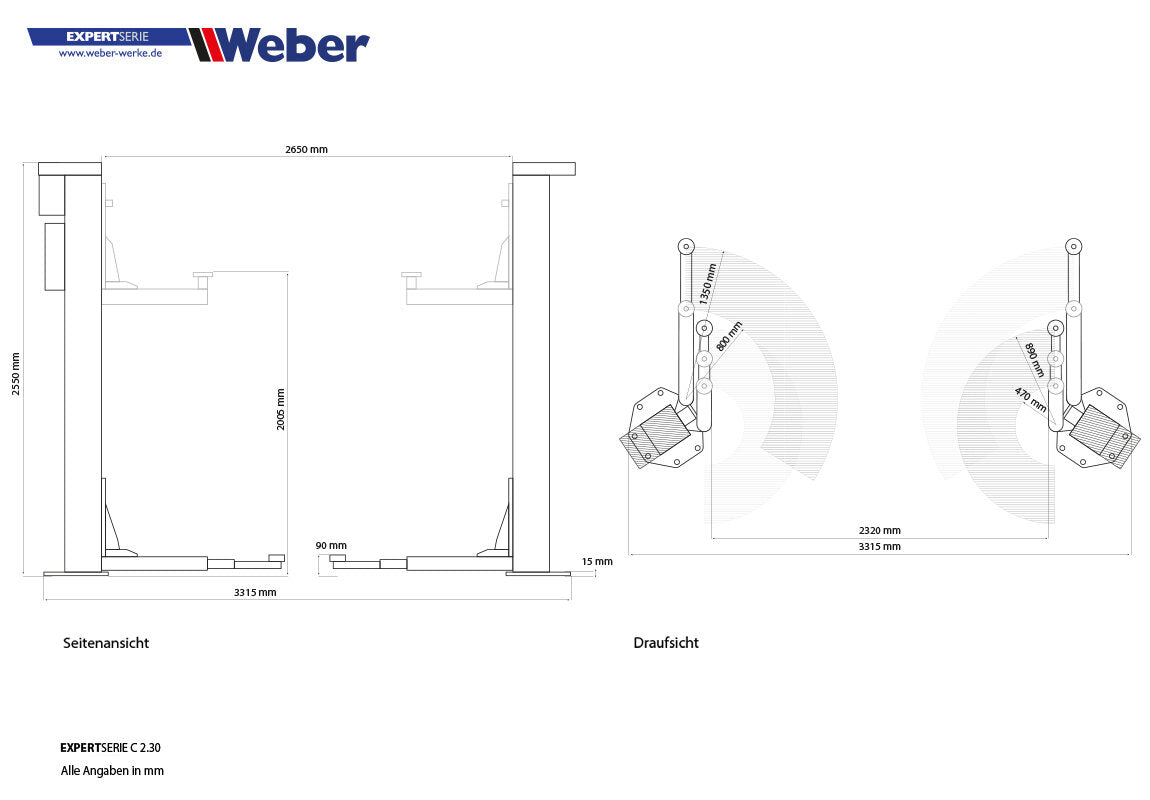

Technical data | |
| Load capacity | 3000 kg |
| Underswing height | 90 mm |
| Maximum lifting height. | 2005 mm |
| Column height | 2550 mm |
| Required ceiling height | 2800 mm |
| Column spacing | 2650 mm |
| Passage width | 2320 mm |
| Installation width | 3315 mm |
| Length of long support arm | 800-1350 mm |
| Length of short support arm | 470-890 mm |
| Engine power | 2 x 2.5 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz / 20 A slow |
| Lift time | approx. 45 sec. |
| Dead weight | 500 kg |
| Color column | anthracite – RAL 7016 |
| Color of support arms | black – RAL 9017 |
Possible application area
* The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.
Scope of delivery
- Lifting platform as pictured
- 4 telescopic support arms with mounting plates
- 1 small parts set
- German assembly and operating instructions including test log.
Shipping dimensions
| Item weight | approx. 500.00 kg |
| Contents: | 1.00 piece |
| length | approx. 280.00 cm |
| Width | approx. 80.00 cm |
| Height | approx. 52.00 cm |
