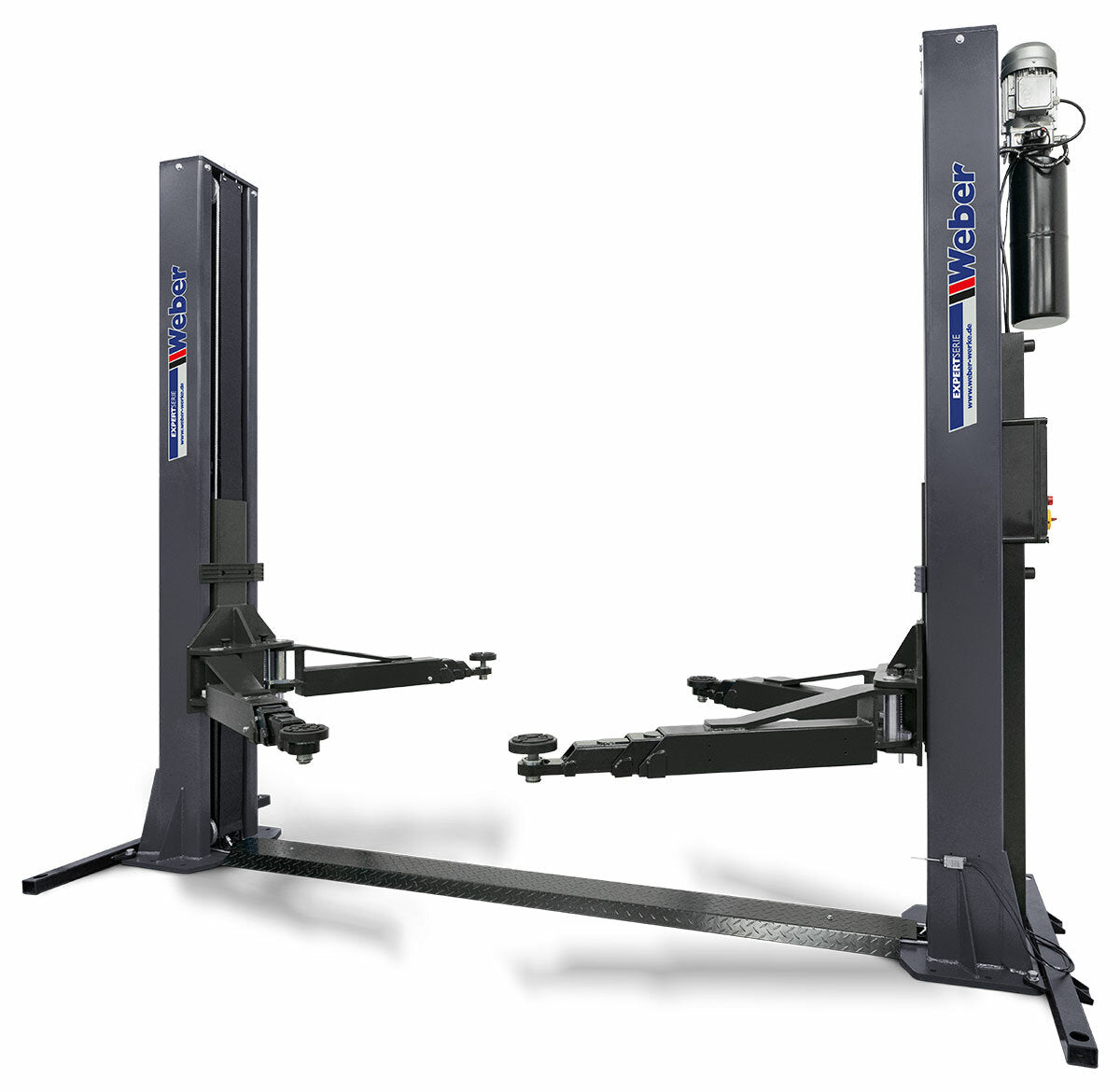

Two Post Lift Weber Expert Series 6.0
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details

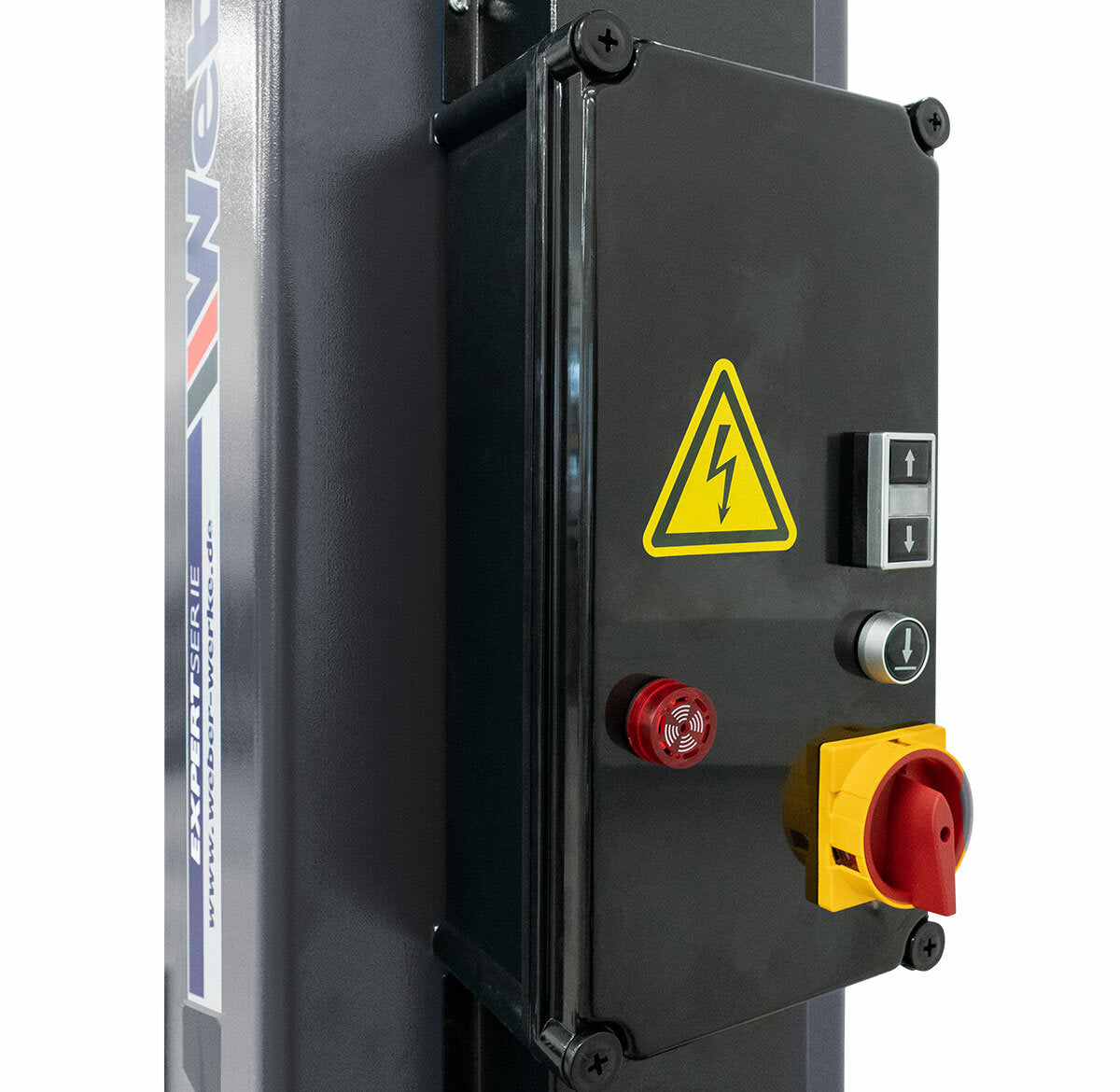

- Raising and lowering via push button for fine adjustment of the lifting height
- Double telescopic support arms for accommodating short to very long vehicles
- Torsion-resistant column profiles
- Safety latches automatically activated
- low swivel height
- Door protection rubbers on both pillars
- large passage width

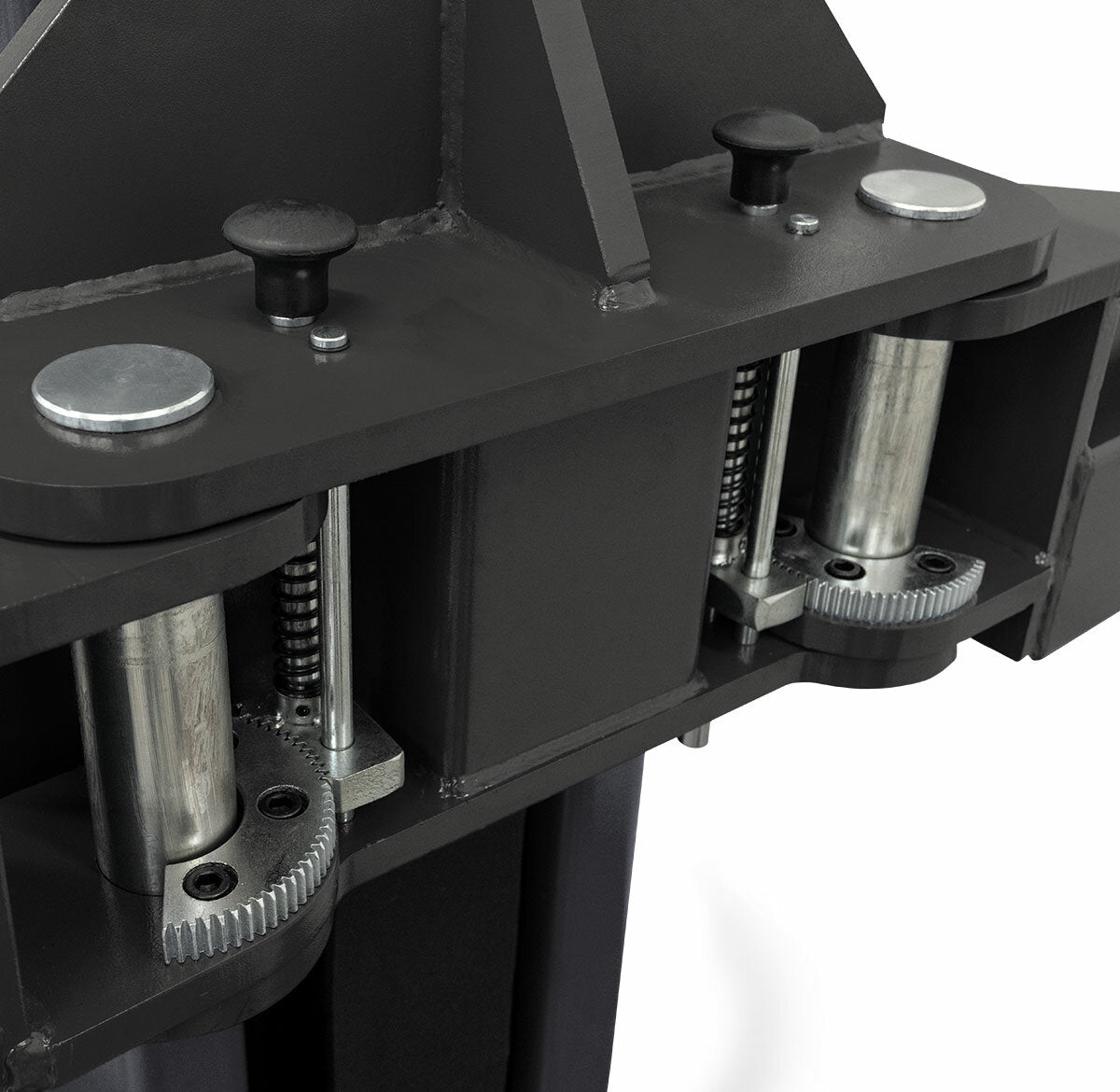

- finely toothed support arm locking mechanism, automatically and manually unlockable
- low maintenance and wear
- powder-coated surfaces
- large recording plates
- CE-marked safety end stop (pinch protection) and electronic stroke limitation
- Permissible load capacity 6000 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.

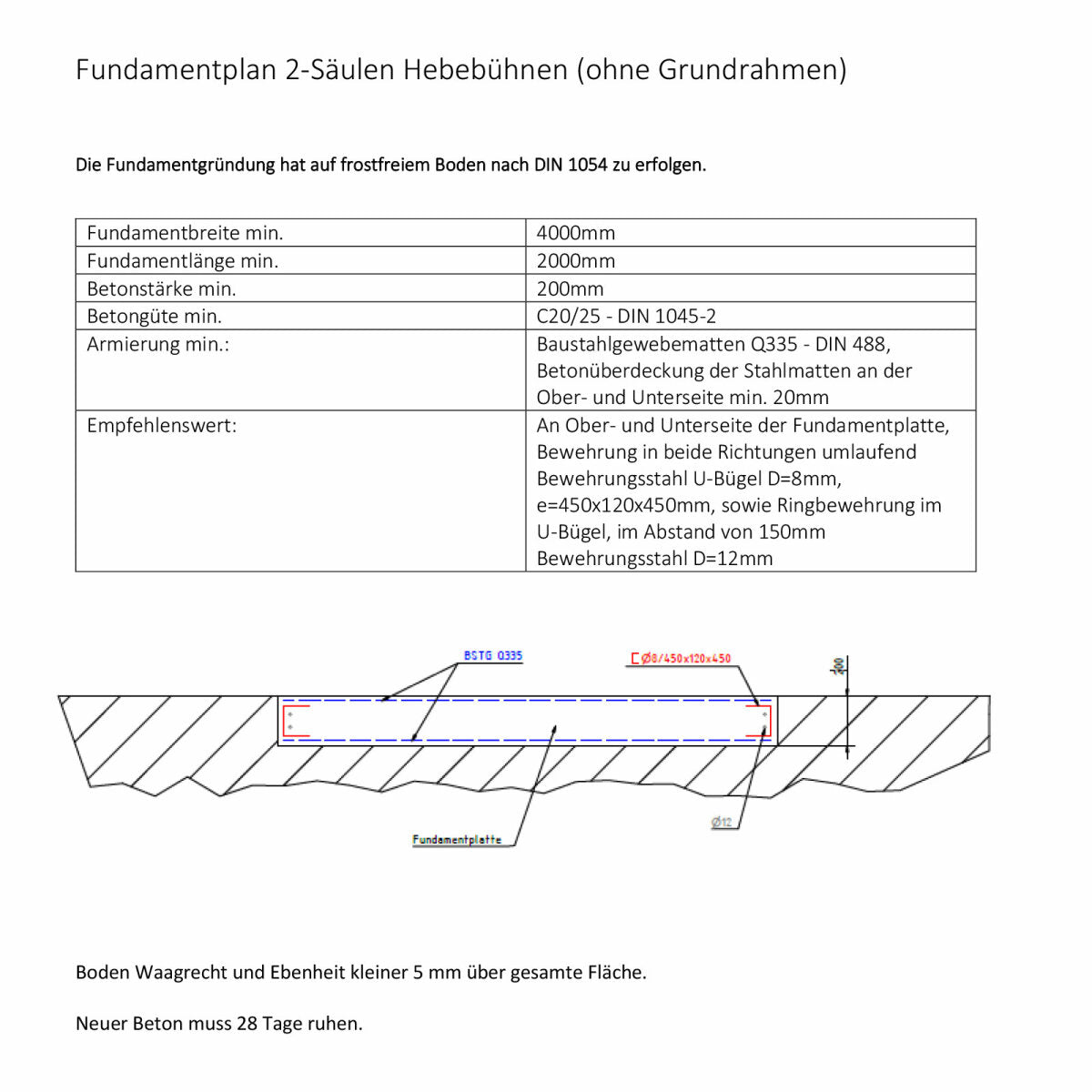

- Floor requirements according to current (in Germany permissible) structural analysis: concrete C20/25 DIN1045:2001-D7, double reinforced, with a minimum dimension of 4000 x 2000 x 200 mm.

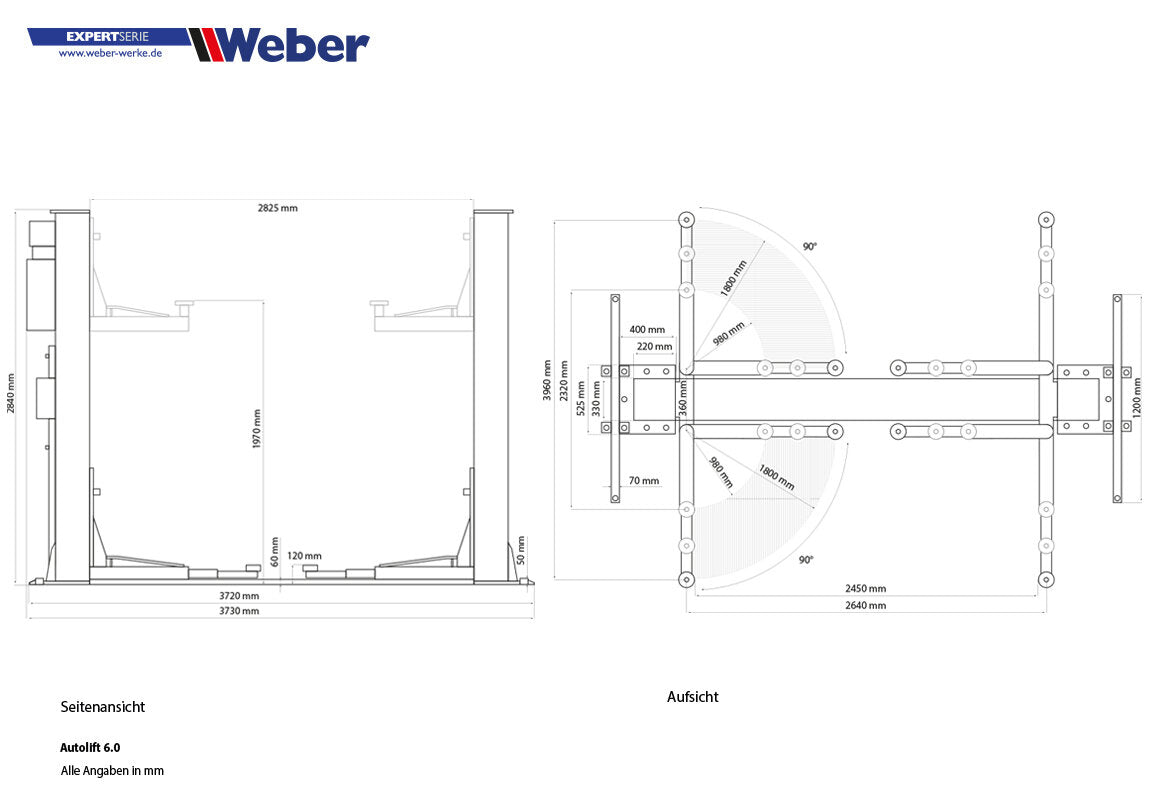

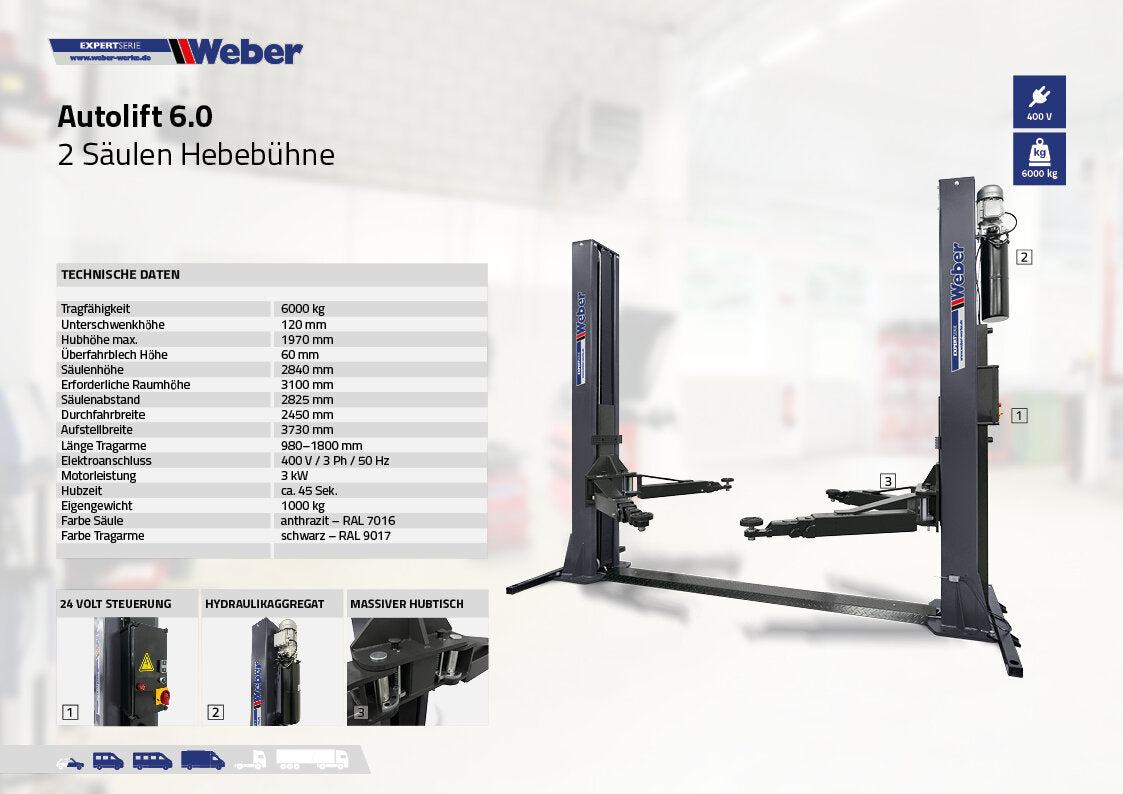

Technical data | |
| Load capacity | 6000 kg |
| Underswing height | 120 mm |
| Maximum lifting height. | 1970 mm |
| Column height | 2840 mm |
| Required ceiling height | 3100 mm |
| Column spacing | 2825 mm |
| Passage width | 2450 mm |
| Installation width | 3730 mm |

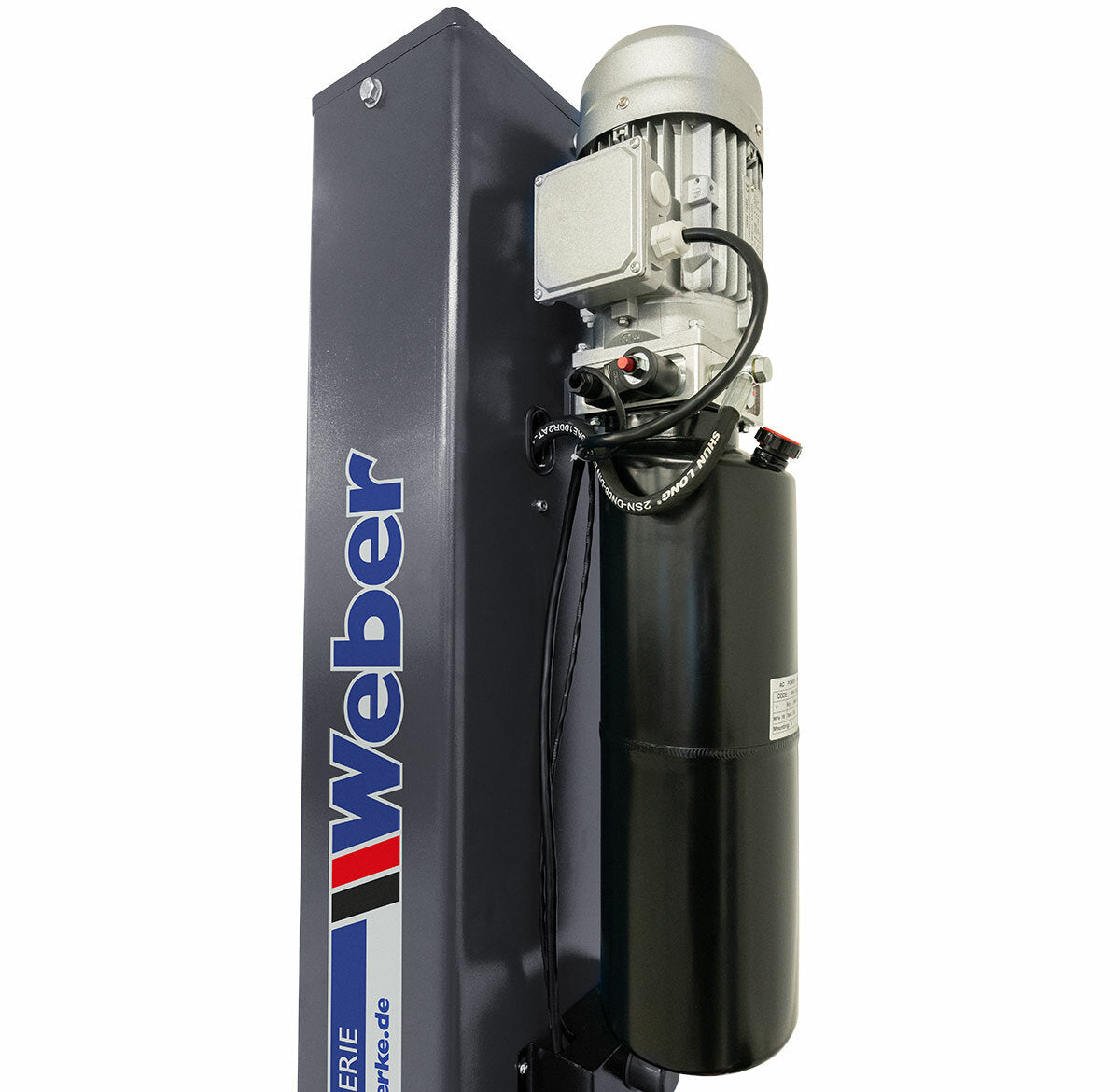

| Engine power | 3 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | approx. 45 sec. |
| Dead weight | 1000 kg |
| Color column | anthracite – RAL 7016 |
| Drive-over plate height | 60 mm |
| Color of support arms | black – RAL 9017 |
| Length of support arms | 980-1800 mm |
Product videos
Possible application area
* The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.
Scope of delivery
- Lifting platform as pictured
- 4 double adjustable mounting plates with rubber pads
- German assembly and operating instructions including test log.
Shipping dimensions
| Item weight | approx. 1,040.00 kg |
| length | approx. 305.00 cm |
| Width | approx. 55.00 cm |
| Height | approx. 125.00 cm |
Attention, special arrangements apply to the shipping of this product by freight carrier!
Due to its special dimensions, the goods must be unloaded from the delivery vehicle by the recipient using a forklift or other suitable machinery upon delivery.
