Product Details
Product Details

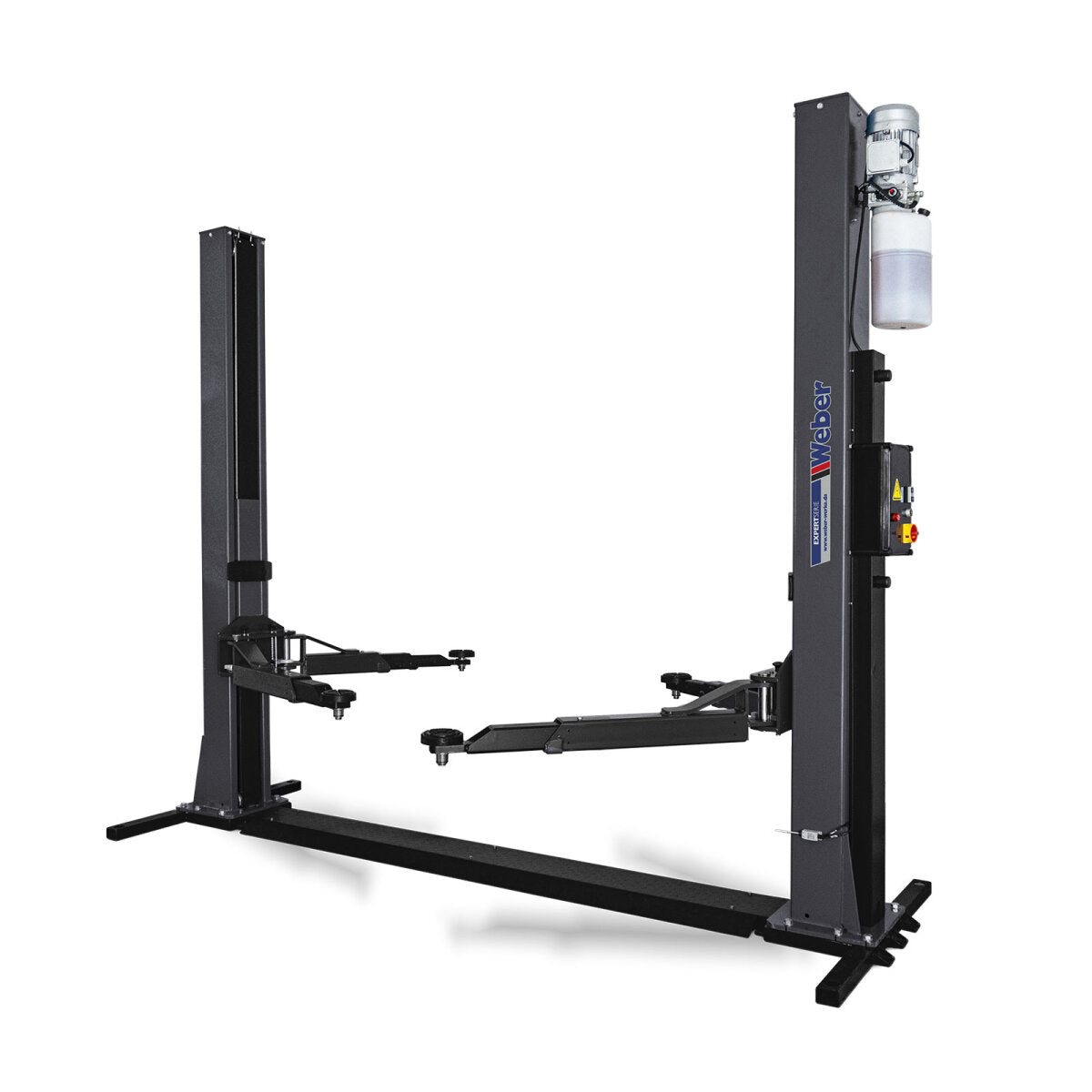

Electro-hydraulic Two Post Lift with base frame for cars and small vans
The Weber Expert Series 4.0G two-post lift can be installed on concrete floors with a minimum thickness of 150 mm thanks to its stable base frame. The asymmetrical support arms and wide drive-through make it suitable for lifting cars and small vans. The 24-volt safety push-button control ensures easy operation and safe working conditions. Powder-coated surfaces and torsion-resistant column profiles make the lift highly durable, low-maintenance, and resistant to wear.
- stable base frame for secure positioning of the lifting platform even on poor concrete quality
- Asymmetrical support arms for large door opening angles

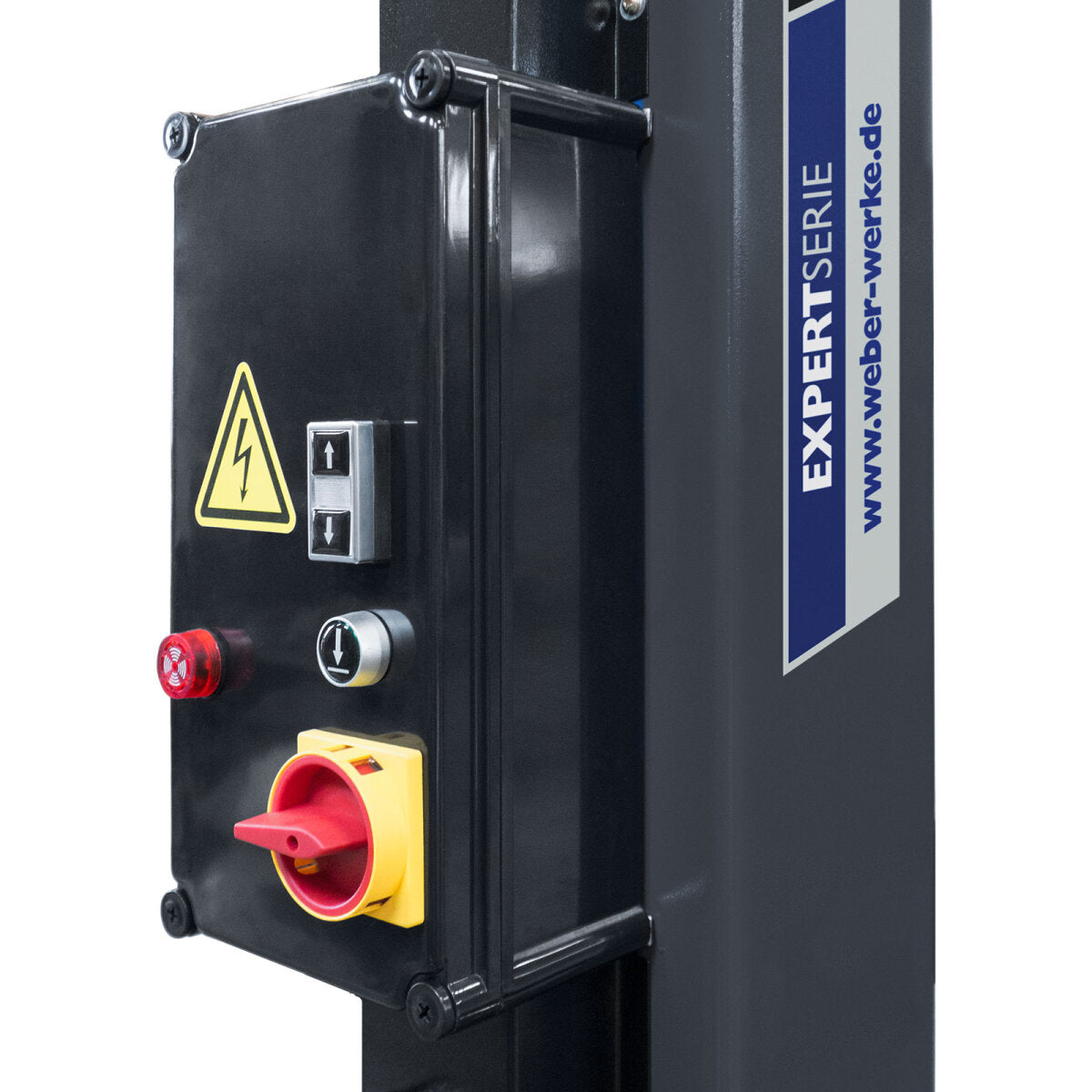

- Easy handling thanks to 24-volt safety push-button control (dead man's control)
- Torsion-resistant column profiles
- Door protection rubbers on both pillars
- large passage width
- Raising and lowering via push button for fine adjustment of the lifting height
- Column cover in both lifting columns to protect against contamination

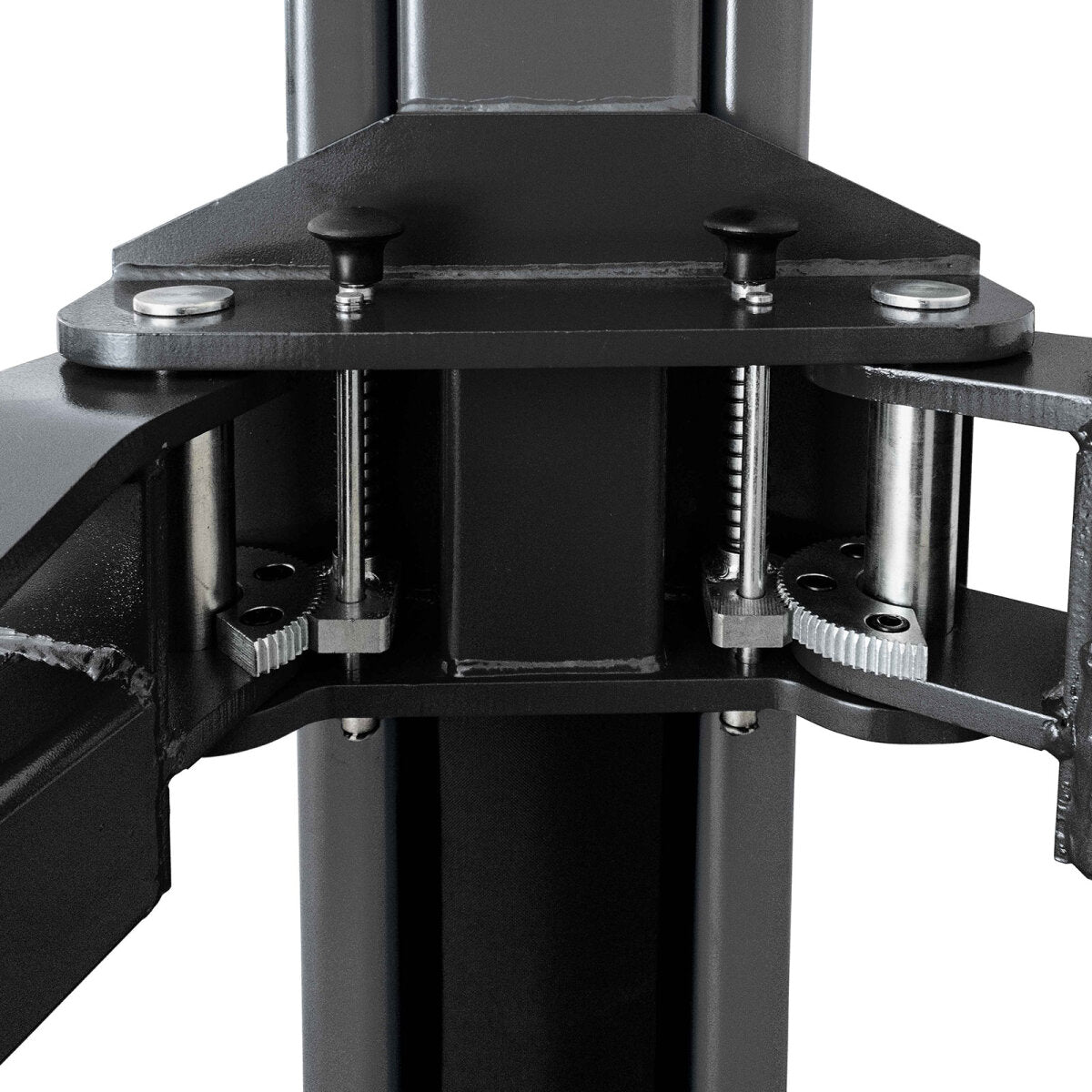

- finely toothed support arm locking mechanism, automatically and manually unlockable
- Multiple safety devices, overload valve, pipe rupture protection and mechanical safety latches
- Safety latches automatically activated
- CE-marked safety end stop (pinch protection) and electronic stroke limitation
- low maintenance and wear
- powder-coated surfaces
- Mounting plate with double thread

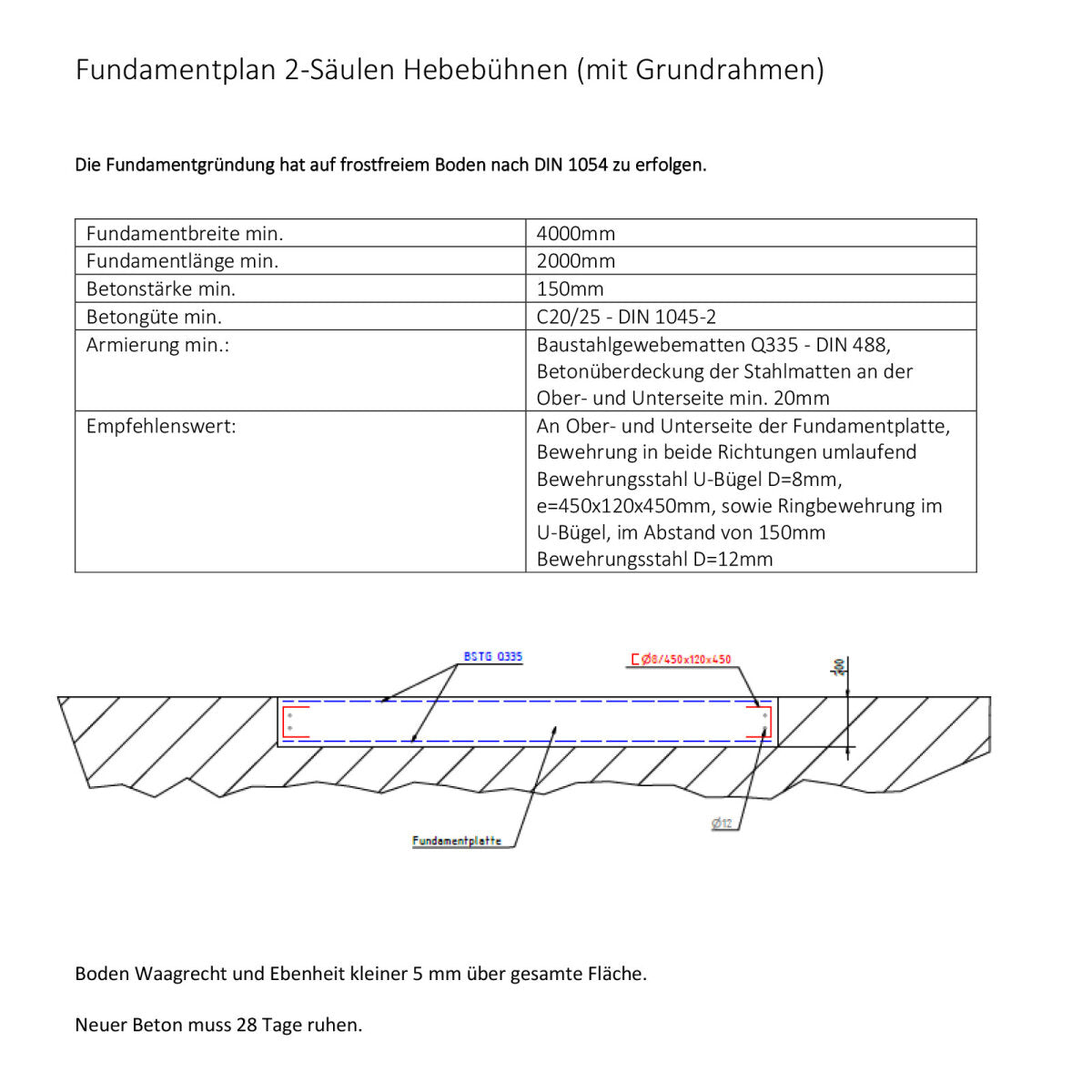

- The stable base frame allows installation even in poor concrete conditions; a concrete thickness of 150 mm C20/25, double reinforced, is sufficient.

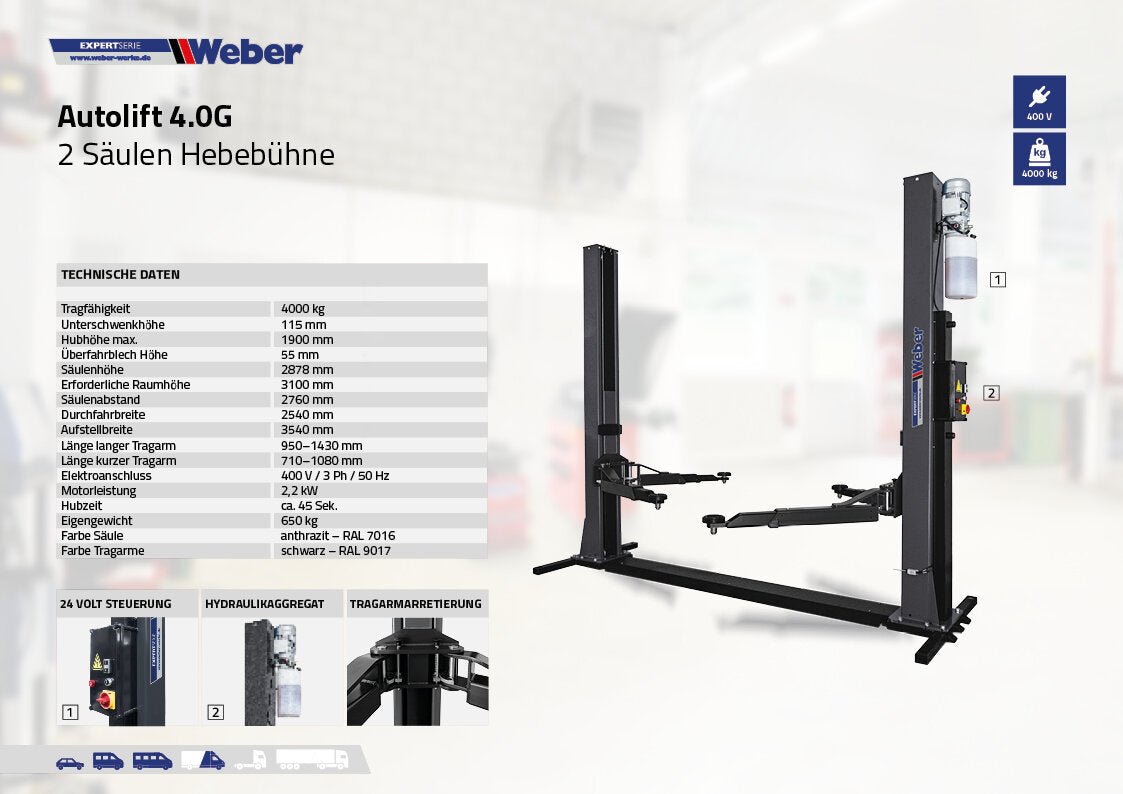

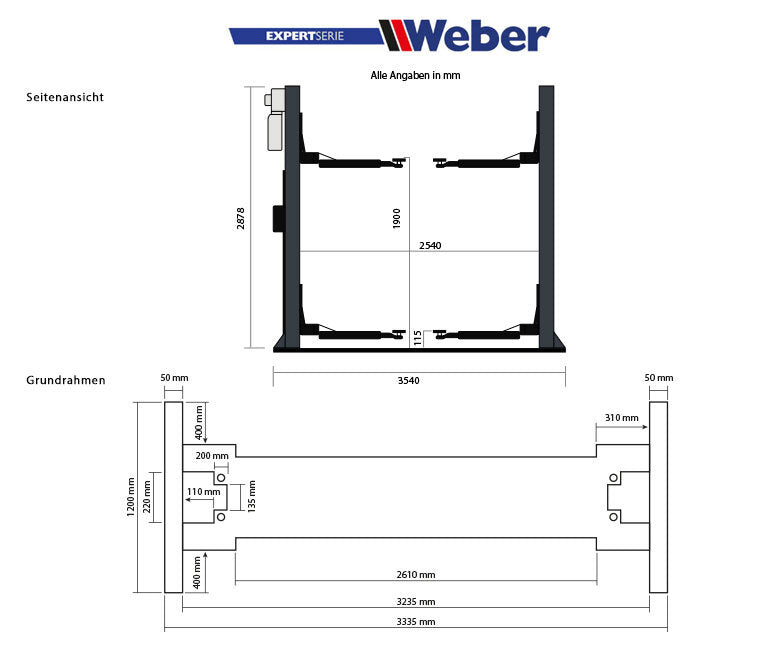

Technical data | |
| Load capacity | 4000 kg |
| Underswing height | 115 mm |
| Maximum lifting height. | 1900 mm |
| Column height | 2878 mm |
| Required ceiling height | 3100 mm |
| Column spacing | 2760 mm |
| Passage width | 2540 mm |
| Installation width | 3540 mm |
| Length of long support arm | 950–1430 mm |
| Length of short support arm | 710–1080 mm |
| Engine power | 2.2 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | approx. 45 sec. |
| Dead weight | 650 kg |
| Color column | anthracite – RAL 7016 |
| Drive-over plate height | 55 mm |
| Color of support arms | black - RAL 9017 |
Possible application area
* The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.
Scope of delivery
- Lifting platform as pictured
- 4 double adjustable mounting plates with rubber pads
- German assembly and operating instructions including test log.
Shipping dimensions
| Item weight | approx. 675.00 kg |
| length | approx. 300.00 cm |
| Width | approx. 53.00 cm |
| Height | approx. 83.00 cm |
