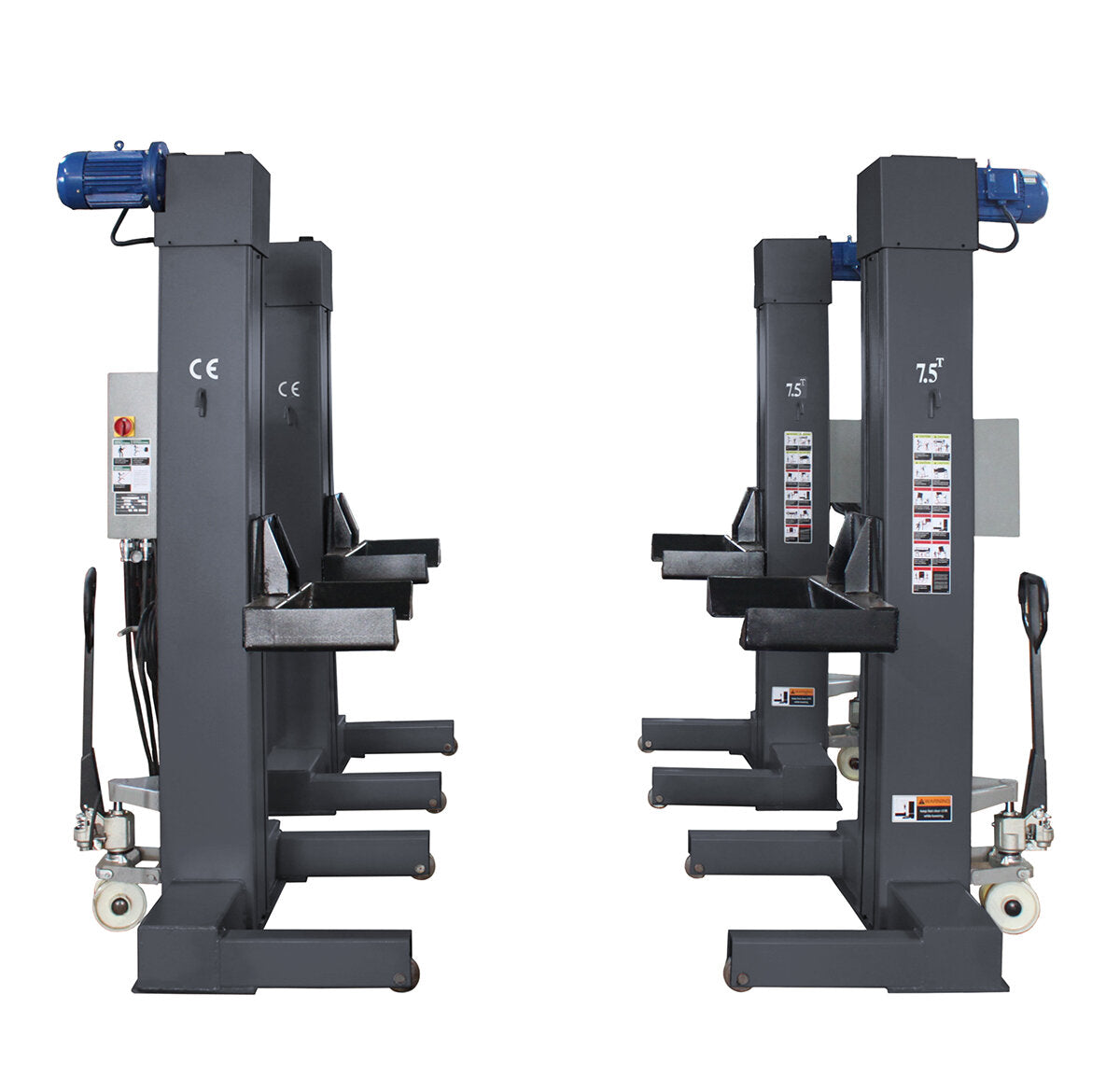

7.5T Truck Lift – 4 Column Wheel Gripping System for Workshops
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
- very quiet thanks to the electromechanical drive system
- Long-term reliability thanks to stable spindle and ball bearings

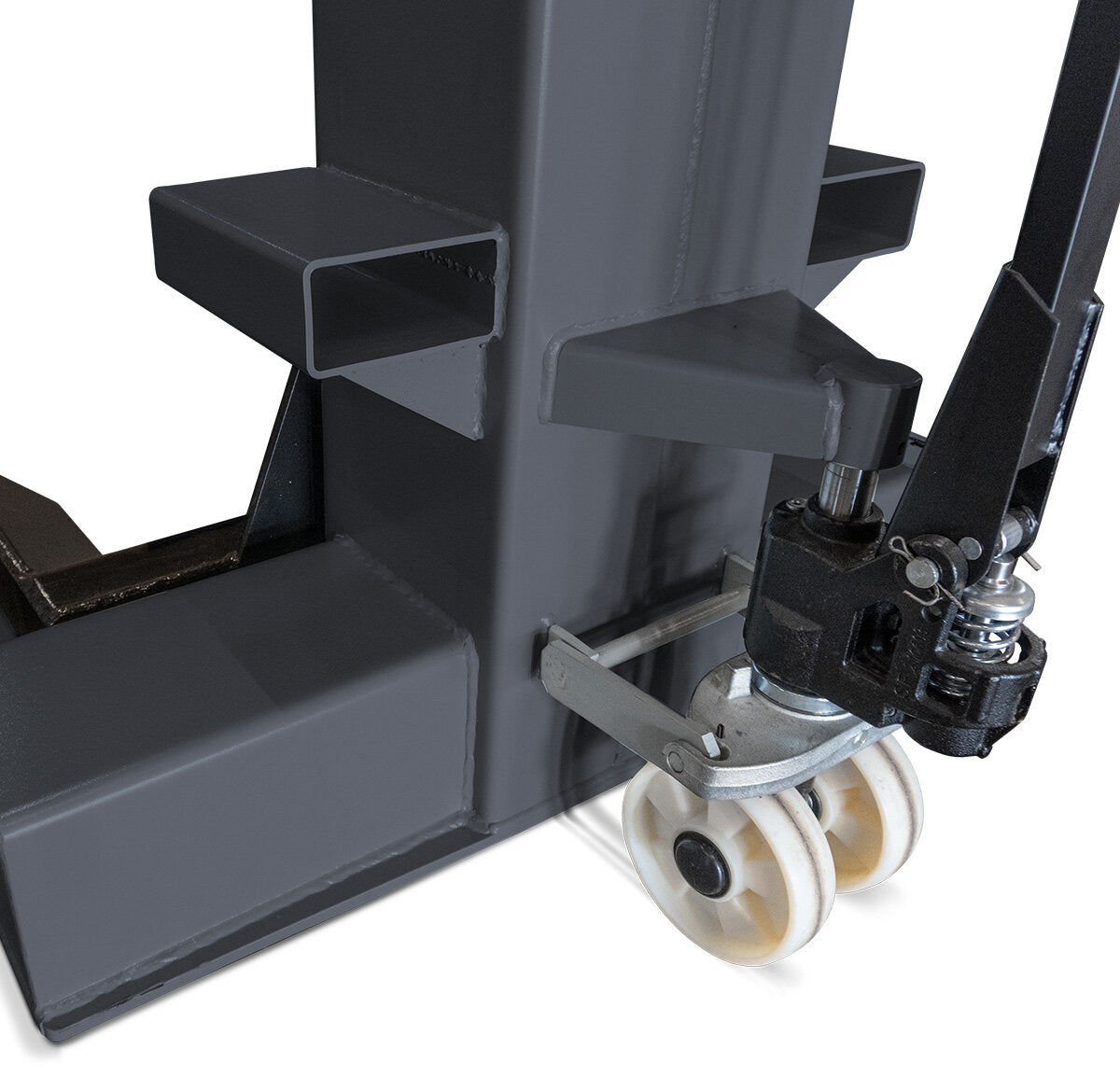

- The columns are mobile thanks to a hydraulic mobility kit on each column.
- Spindle drive allows for fine height adjustment
- Robust lifting tables with fixed lifting forks
- powerful, space-saving, top-mounted motor
- robust control unit on each column
- Simple raising and lowering via push button
- extremely solid and torsionally rigid column profile
- The controls can be conveniently operated from any column.
- Mechanical emergency lowering system as a backup for power outages
- Expandable up to 6 columns for multi-axle commercial vehicles
- Forklift pockets for easy transport over longer distances
- Optional: Adapter for smaller wheels

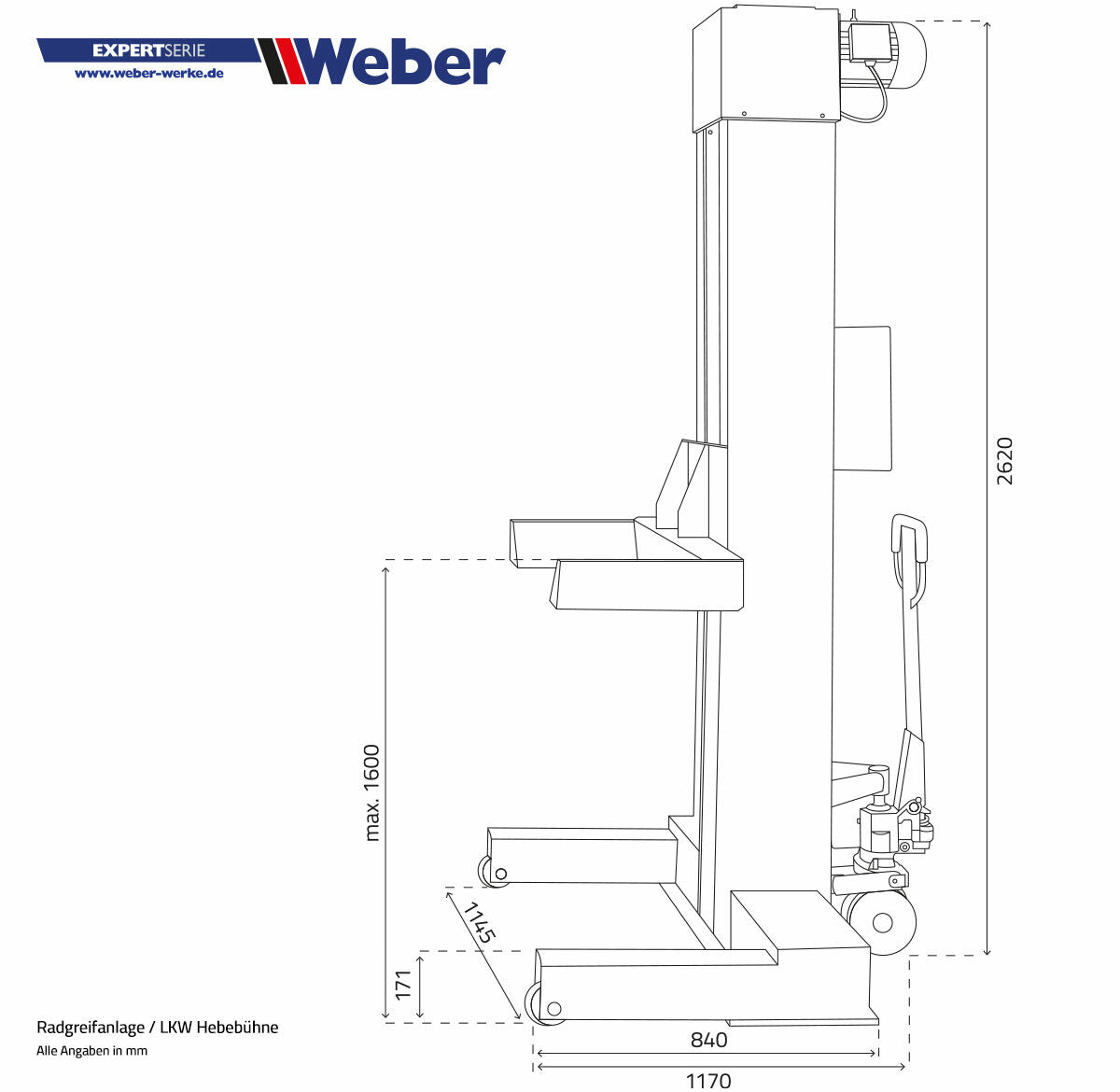

Technical data | |
| Load capacity | 30000 kg |
| Dead weight | 680 kg per column |
| Lifting height | 1600 mm |
| Load capacity per column | 7500 kg |
| Lifting and lowering time | approx. 10 mm/s |
| Drive power per column | 3 kW |
| Drive voltage | 400 V / 3 Ph |
Possible application area
* The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.
Scope of delivery
- Complete wheel gripping system (as shown above)
- German assembly instructions
Shipping dimensions
| Item weight | approx. 2,520.00 kg |
| length | approx. 120.00 cm |
| Width | approx. 120.00 cm |
| Height | approx. 265.00 cm |
Attention, special arrangements apply to the shipping of this product by freight carrier!
Due to its special dimensions, the goods must be unloaded from the delivery vehicle by the recipient using a forklift or other suitable machinery upon delivery.
