Weber 1-Post Car Lift C-1.25 – Expert Series "Spider"
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
- Slim lifting column design and robust technology thanks to our hot-rolled column profile
- extremely solid and torsionally rigid
- one of the most stable single-post lifts in this load capacity class

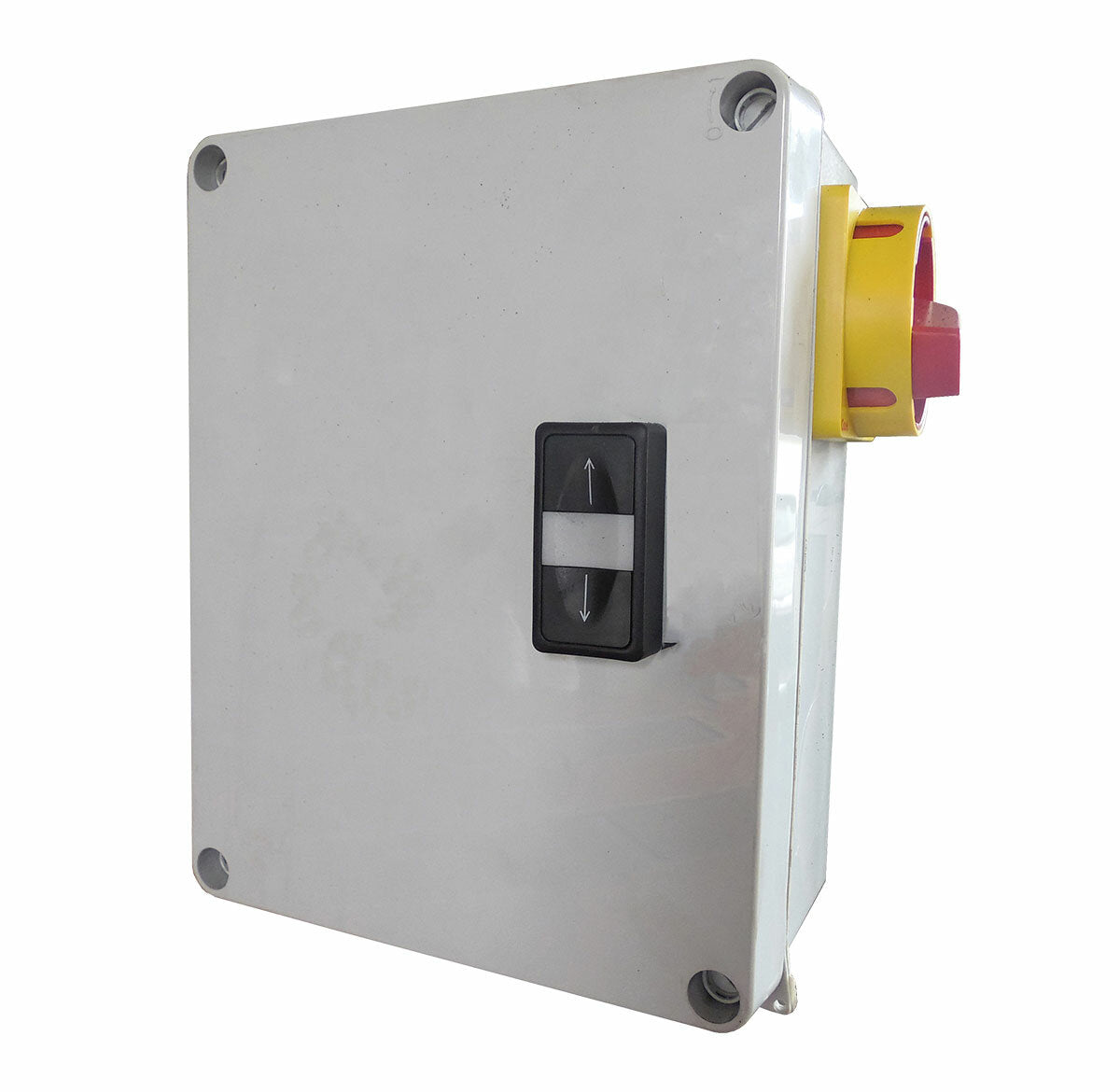

- Raising and lowering via push button for fine adjustment of the lifting height
- very low column height for installation in low rooms
- A raised vehicle is perfectly accessible from three sides.
- Vehicle doors on the side opposite the lifting column can be opened without restrictions.
- large tool storage areas on the rear support arms
- The lifting table features durable ball bearings.
- Automatic safety stop during lowering if an obstacle blocks the lifting table.

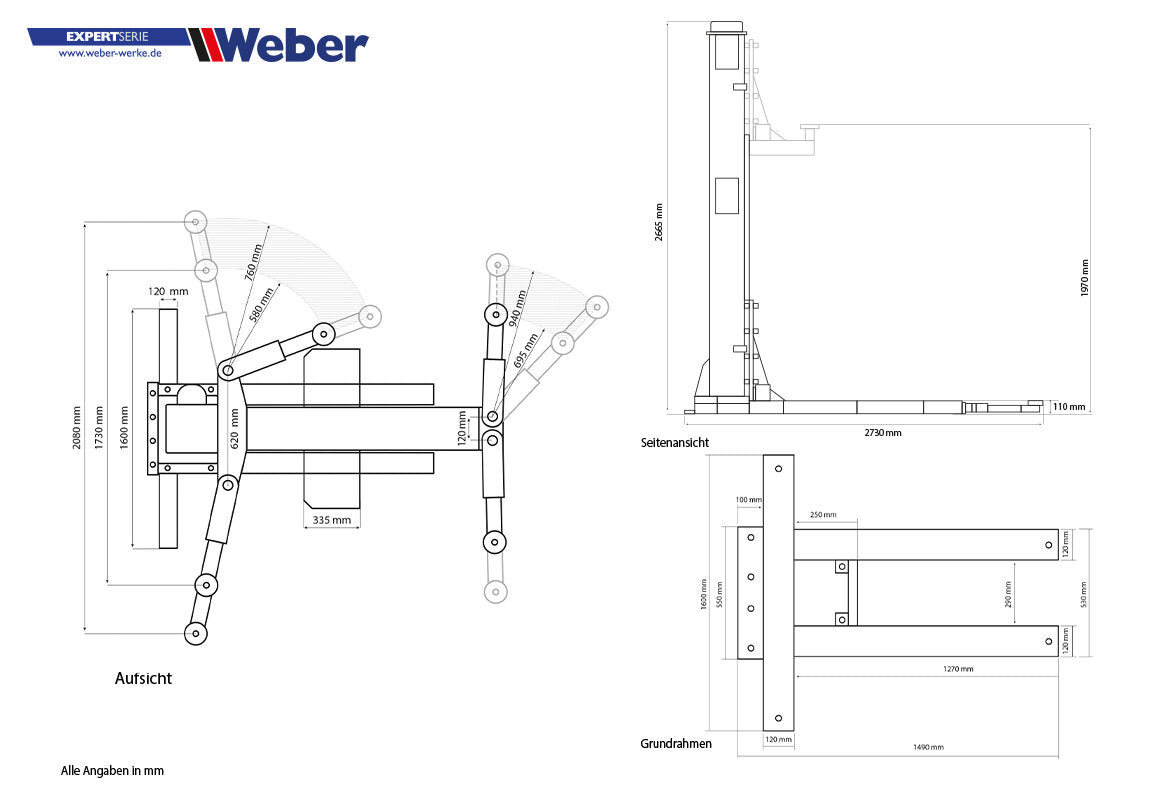

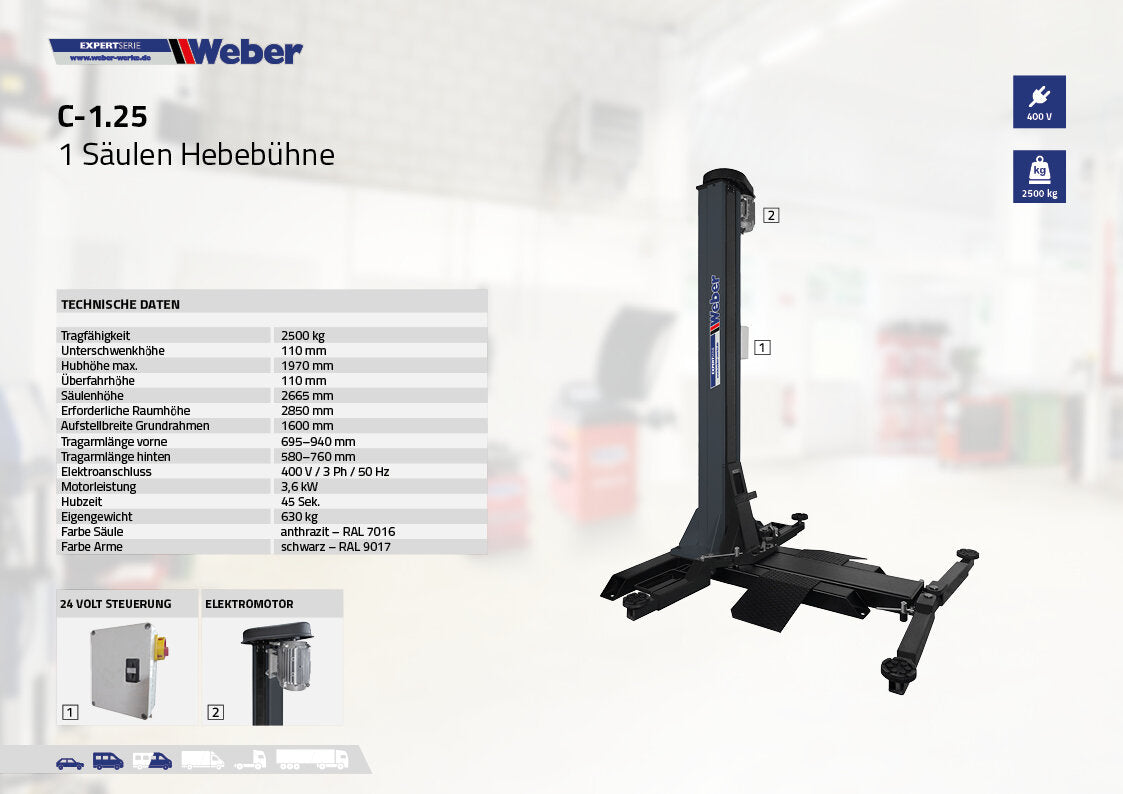

Technical data | |
| Clearance height | 110 mm |
| Load capacity | 2500 kg |
| Underswing height | 110 mm |
| Maximum lifting height. | 1970 mm |
| Column height | 2665 mm |
| Required ceiling height | 2850 mm |

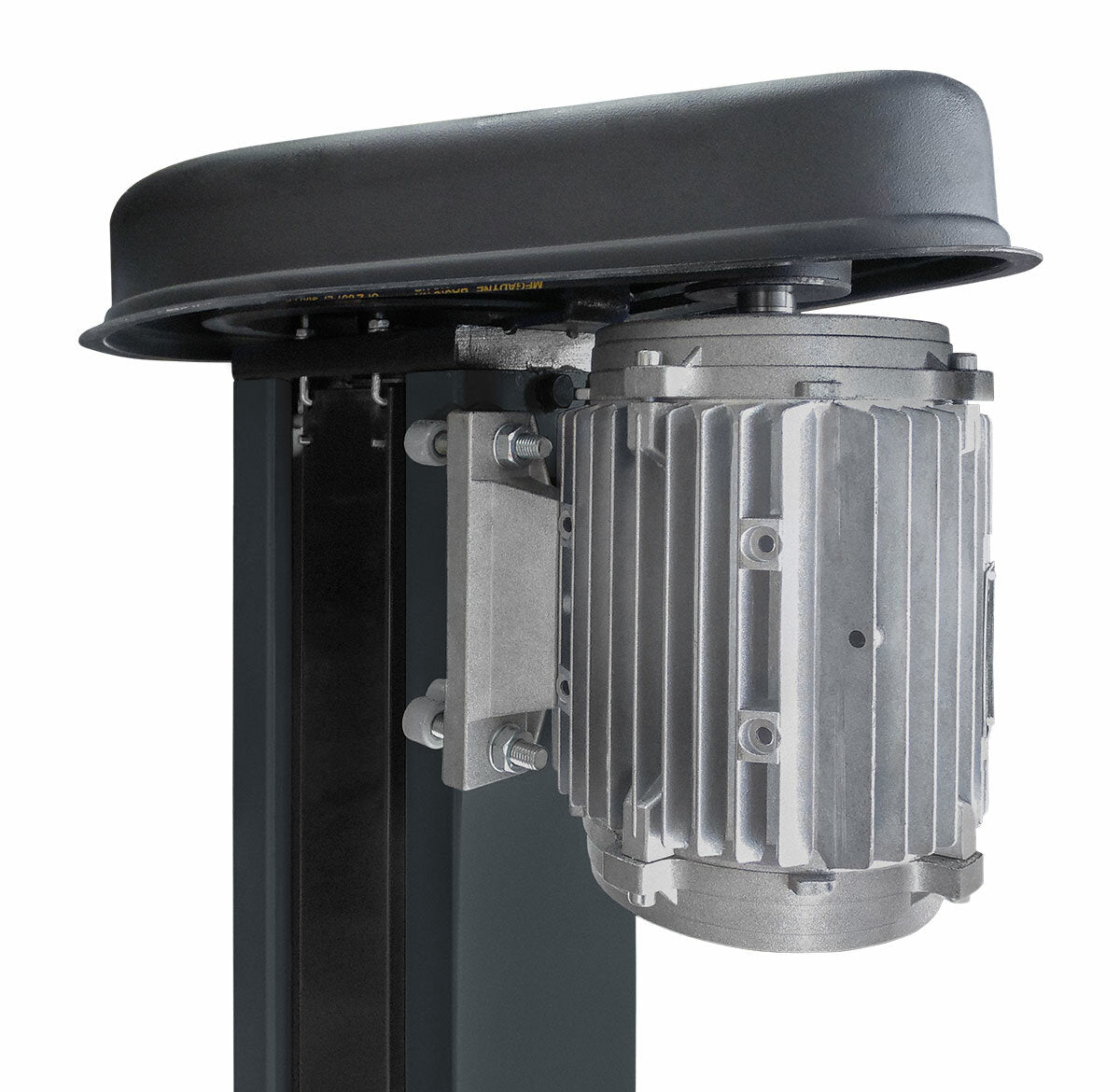

| Engine power | 3.6 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | 45 sec. |
| Dead weight | 630 kg |
| Color column | anthracite – RAL 7016 |
| Color Arms | black – RAL 9017 |
| Installation width of base frame | 1600 mm |
| Front support arm length | 695–940 mm |
| Rear support arm length | 580–760 mm |
Possible application area
* The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.
Scope of delivery

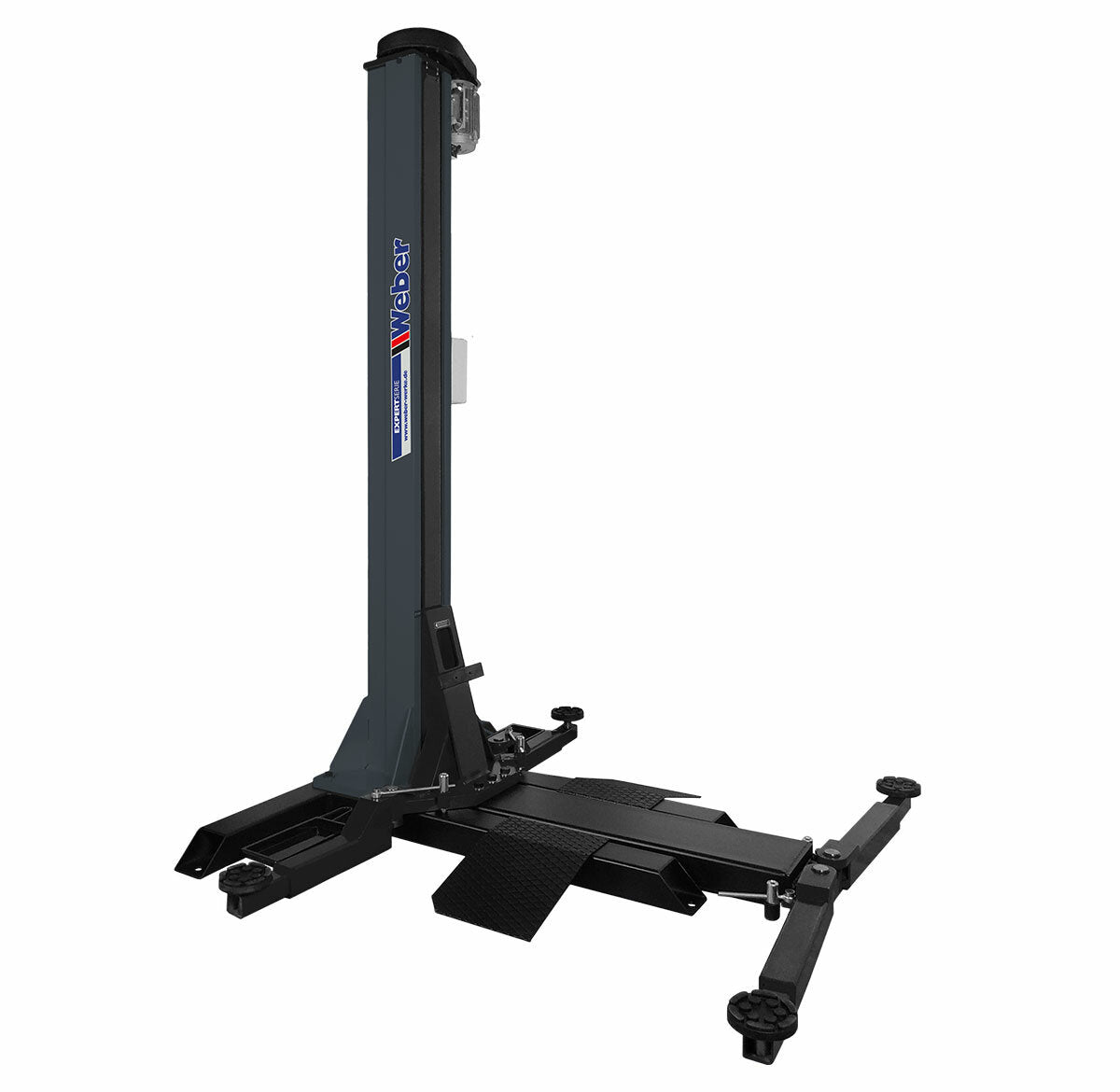

- Lifting platform as pictured
- 1 stable base frame

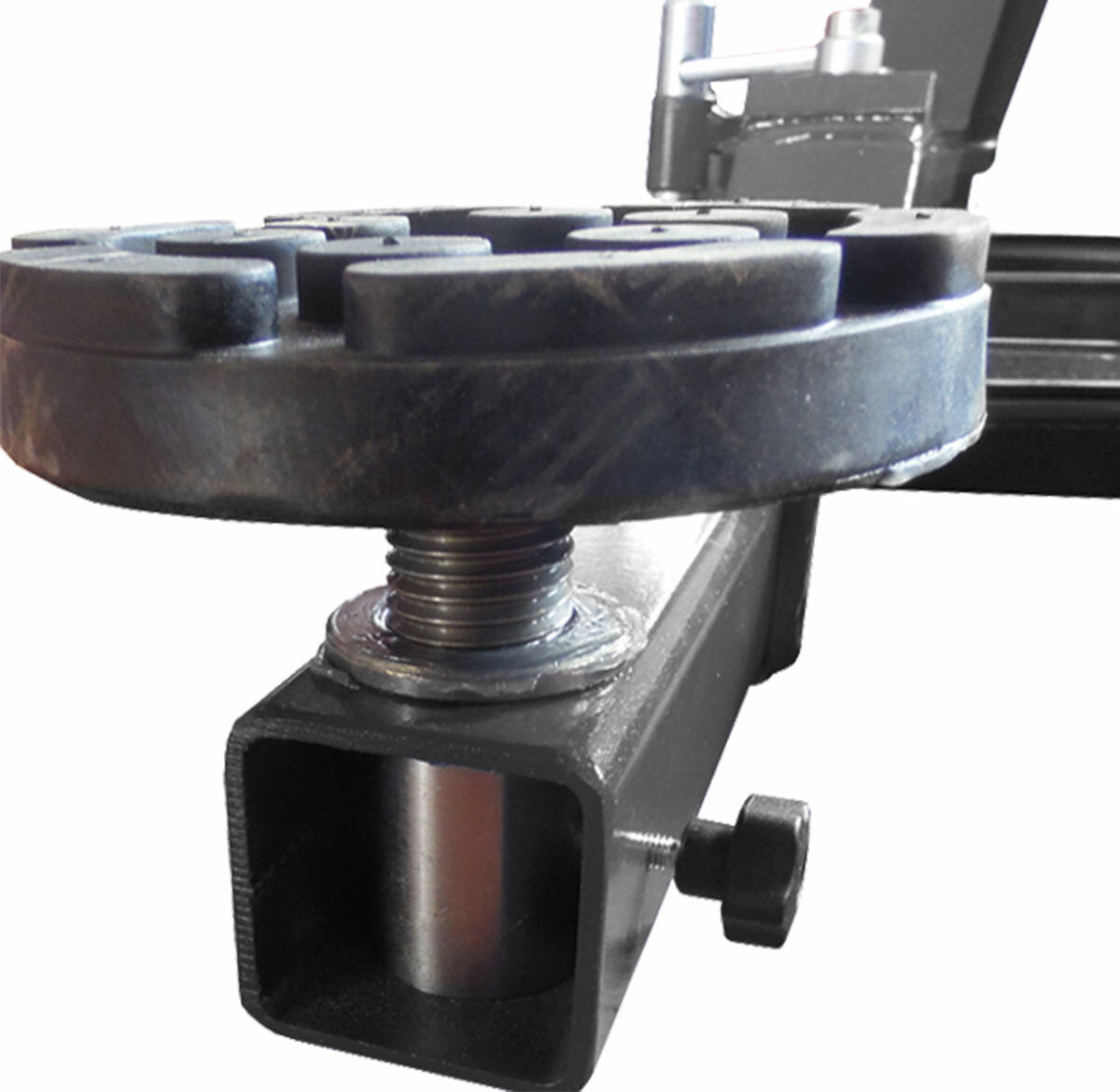

- 4 telescopic support arms, with support plate
- 1 small parts set
- German assembly and operating instructions including test log.
Shipping dimensions
| Item weight | approx. 630.00 kg |
| length | approx. 270.00 cm |
| Width | approx. 78.00 cm |
| Height | approx. 69.00 cm |
