Weber Expert Series DSH-4000 Double Scissor Lift
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details

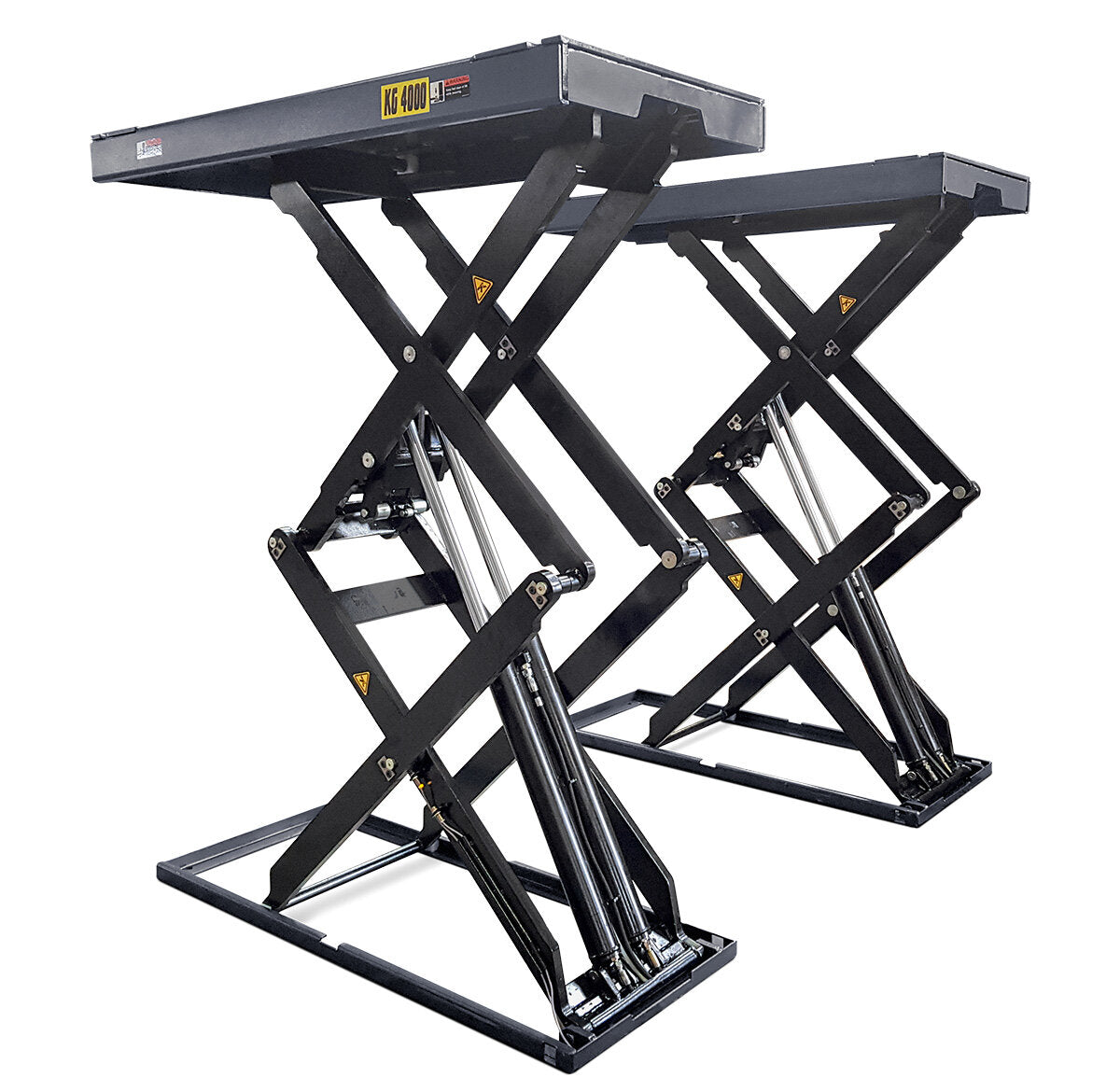

Double scissor lift for flush-mounted and above-ground installation. Ideally suited for Tire, bodywork, and painting.

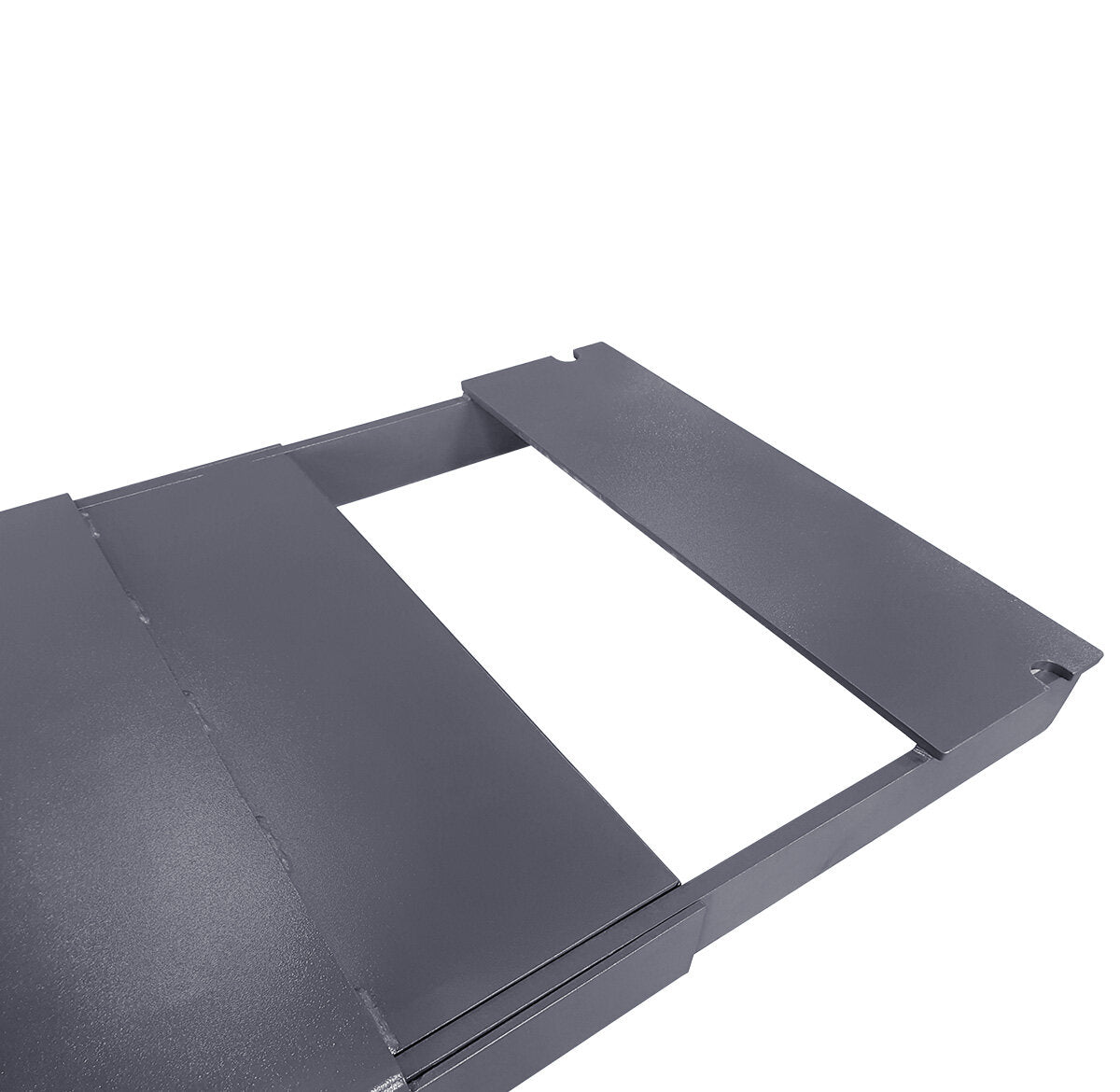

- Extendable mounting extensions on both sides
- Flush-mounted installation as well as above-ground mounting possible
- large lifting height
- absolute freedom of movement
- small space requirement
- no rigid connection between the scissor sections
- high performance hydraulic system

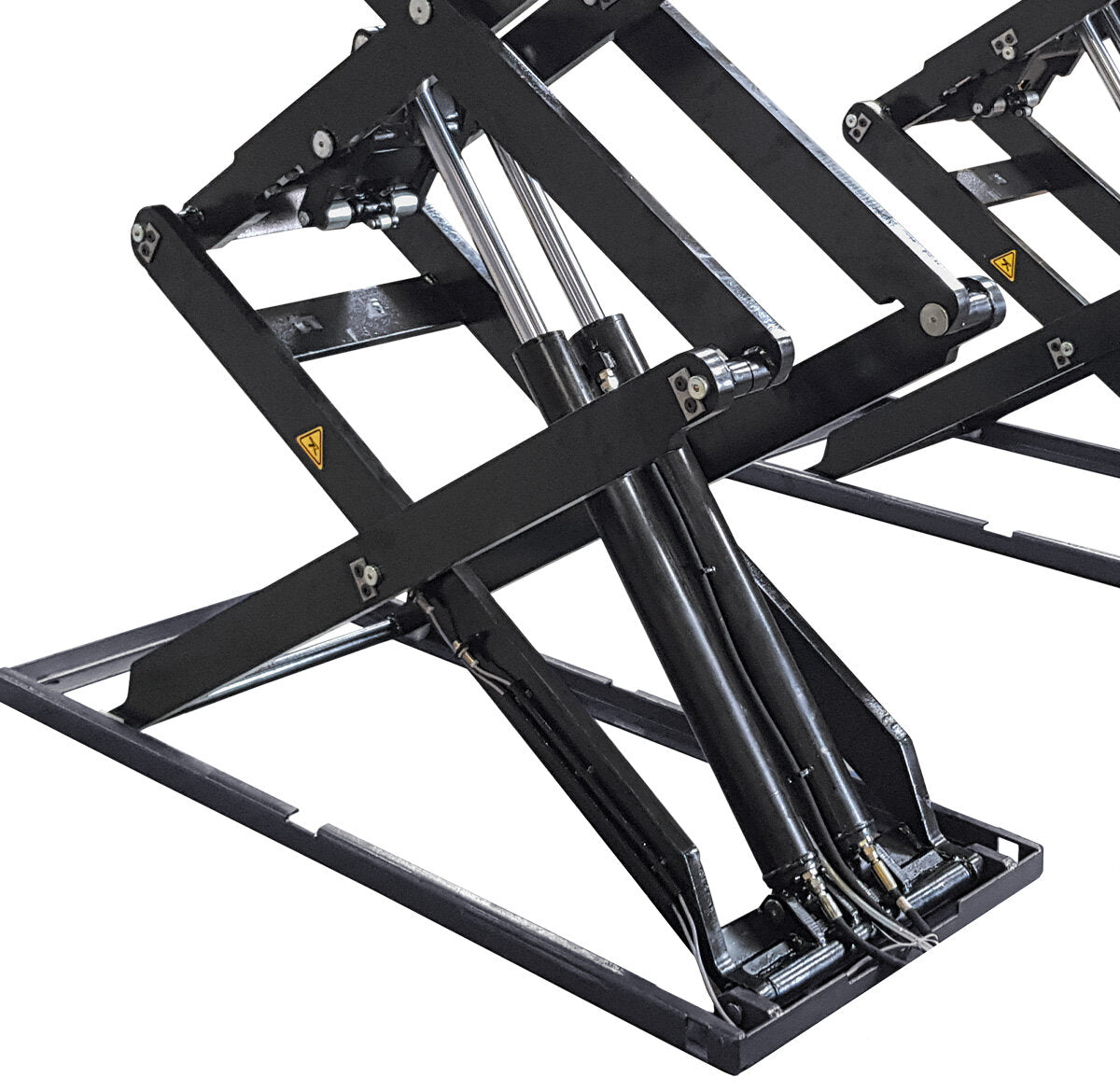

- Double security through redundant cylinder system
- Safety and overload valves in the cylinder systems

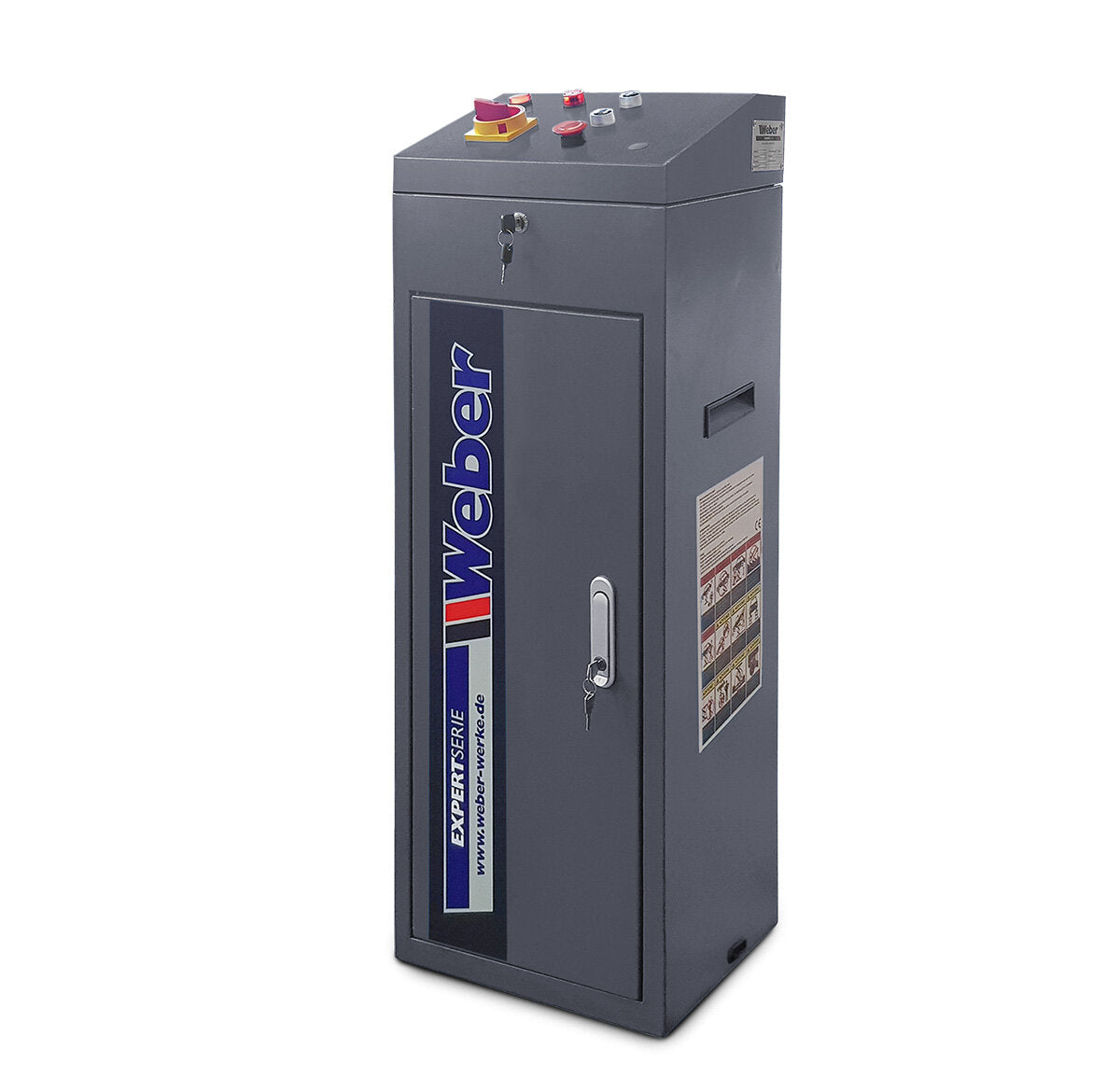

- variably positionable control element
- low wear bearing of the scissor joints
- Optional ramps and underfloor boxes available

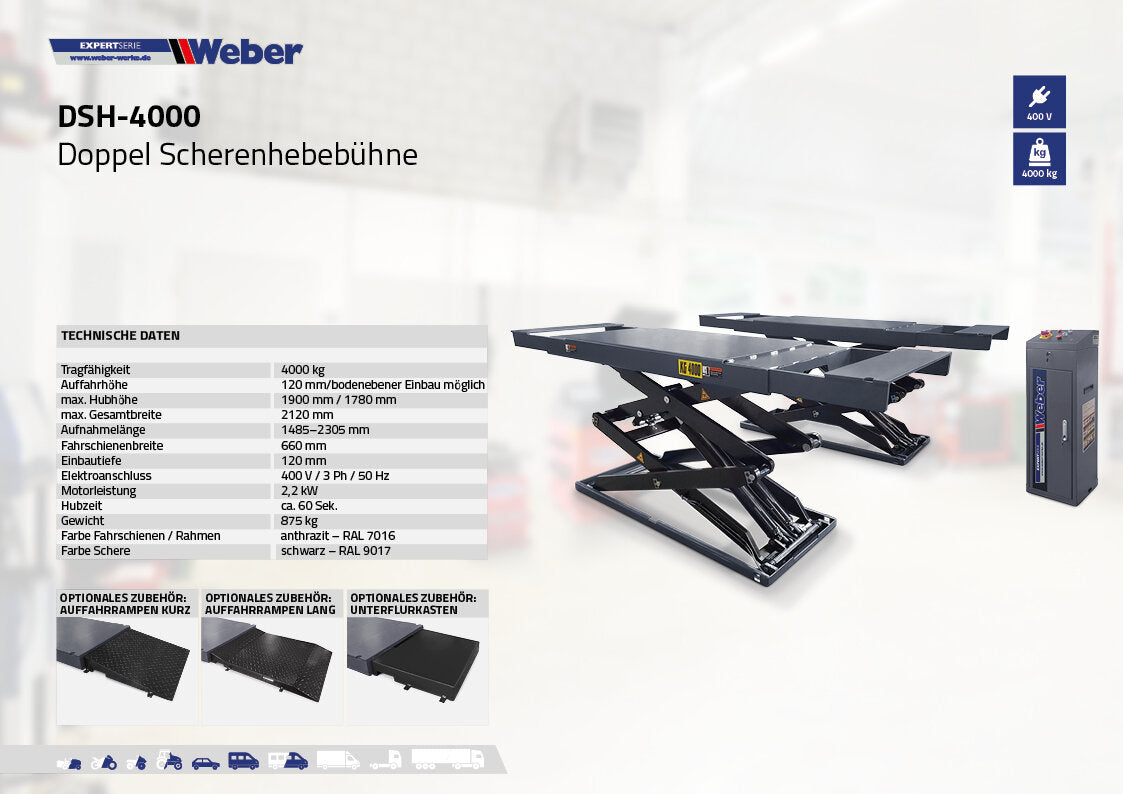

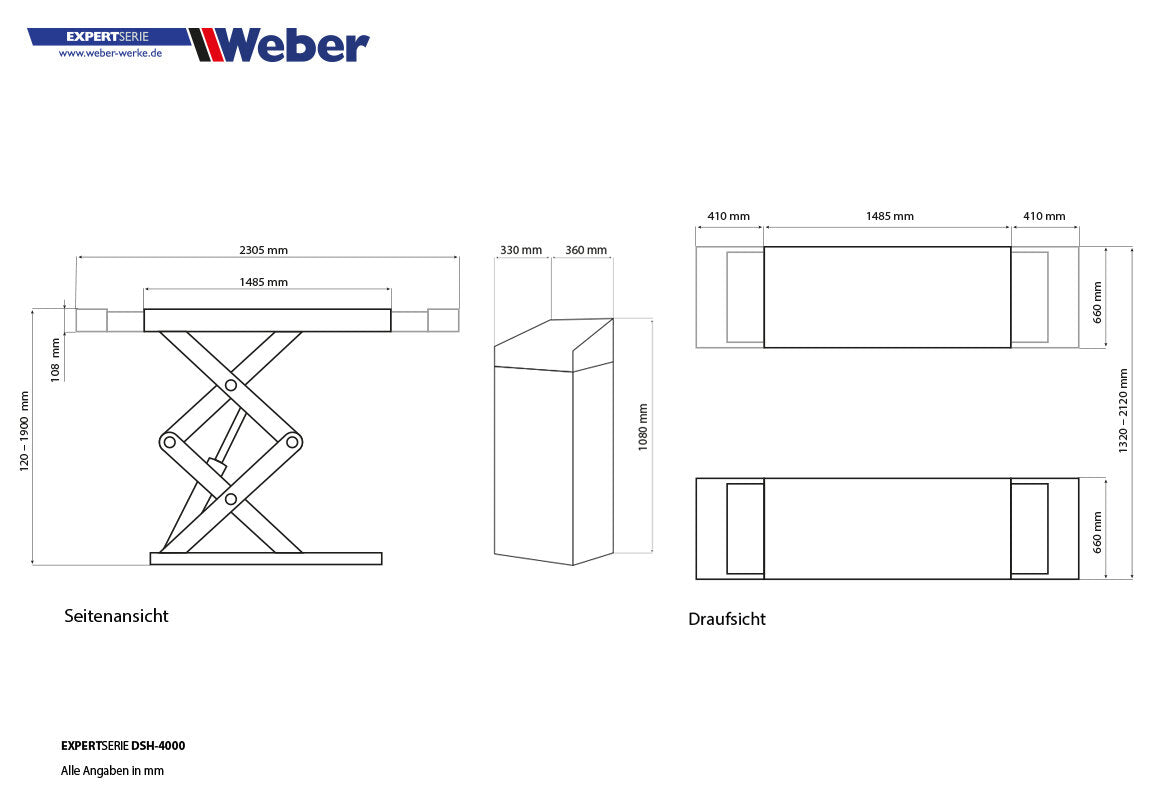

Technical data | |
| Load capacity | 4000 kg |
| Recording length | 1485-2305 mm |
| Track width | 660 mm |
| Color of rails / frame | anthracite – RAL 7016 |
| Engine power | 2.2 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | approx. 60 sec. |
| max. lifting height | 1900 mm / 1780 mm |
| max. overall width | 2120 mm |
| Paint Scissors | black - RAL 9017 |
| Drive-up height | 120 mm / flush-mounted installation possible |
| Installation depth | 120 mm |
| Weight | 875 kg |
Product videos
Possible application area
* The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.
Scope of delivery

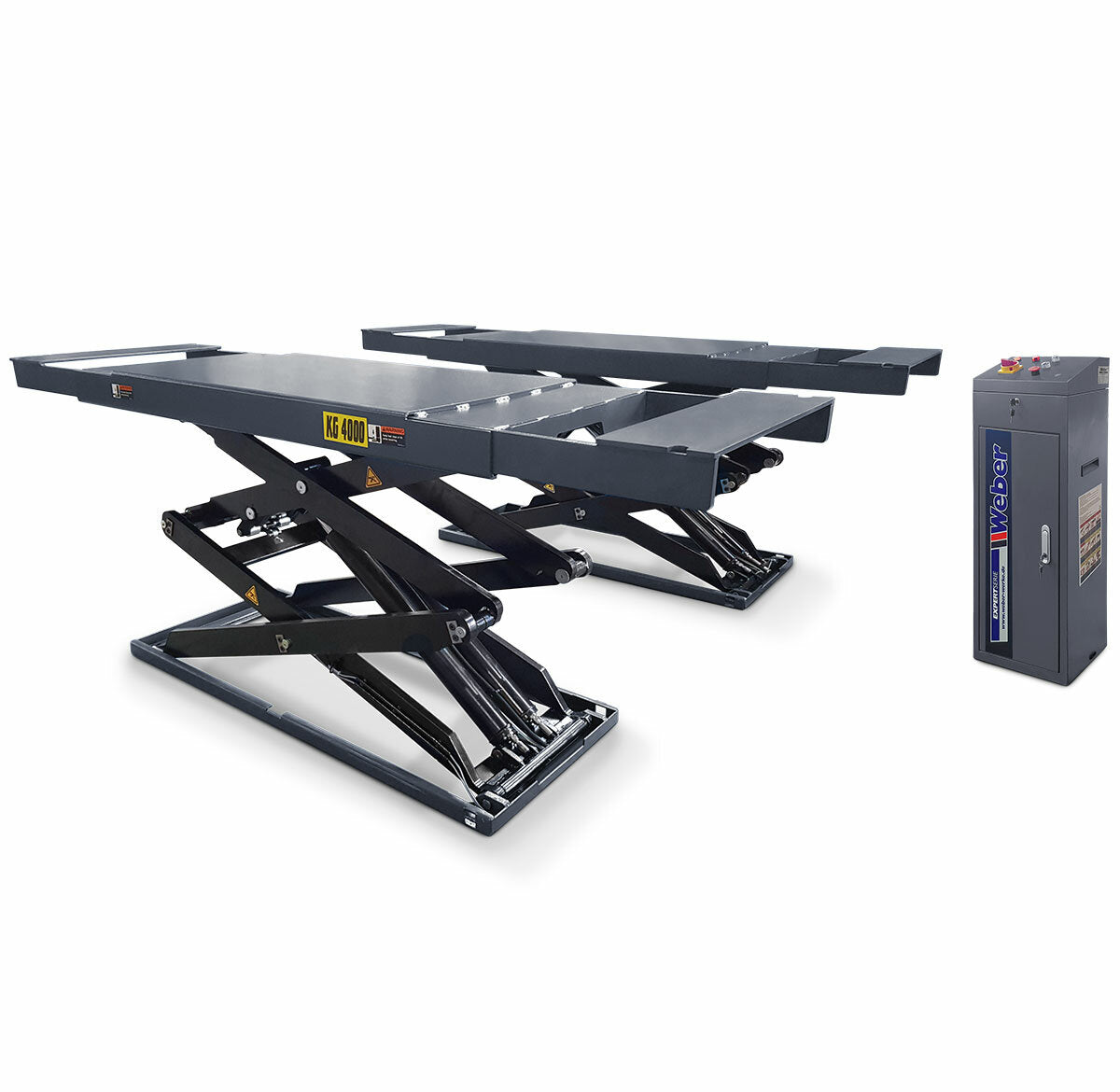

- Double scissor lift with power unit as shown
- 1 set of universal rubber pads
- German assembly and operating instructions including test log.
Shipping dimensions
| Shipping dimensions Package 1 | |
|---|---|
| Item weight | approx. 850.00 kg |
| length | approx. 160.00 cm |
| Width | approx. 80.00 cm |
| Height | approx. 42.00 cm |
| Shipping dimensions Package 2 | |
| Item weight | approx. 50.00 kg |
| length | approx. 48.00 cm |
| Width | approx. 41.00 cm |
| Height | approx. 116.00 cm |
