Weber Expert Series DSH-3500B Double Scissor Lift
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
- Extendable mounting extensions on both sides
- flush-to-floor installation
- large lifting height
- absolute freedom of movement
- small space requirement
- no rigid connection between the scissor sections
- high performance hydraulic system
- Safety and overload valves in the cylinder systems
- electronic synchronization monitoring
- mechanical safety latches with pneumatic actuation
- Variable control element with LED status indicator for all functions
- low wear bearing of the scissor joints

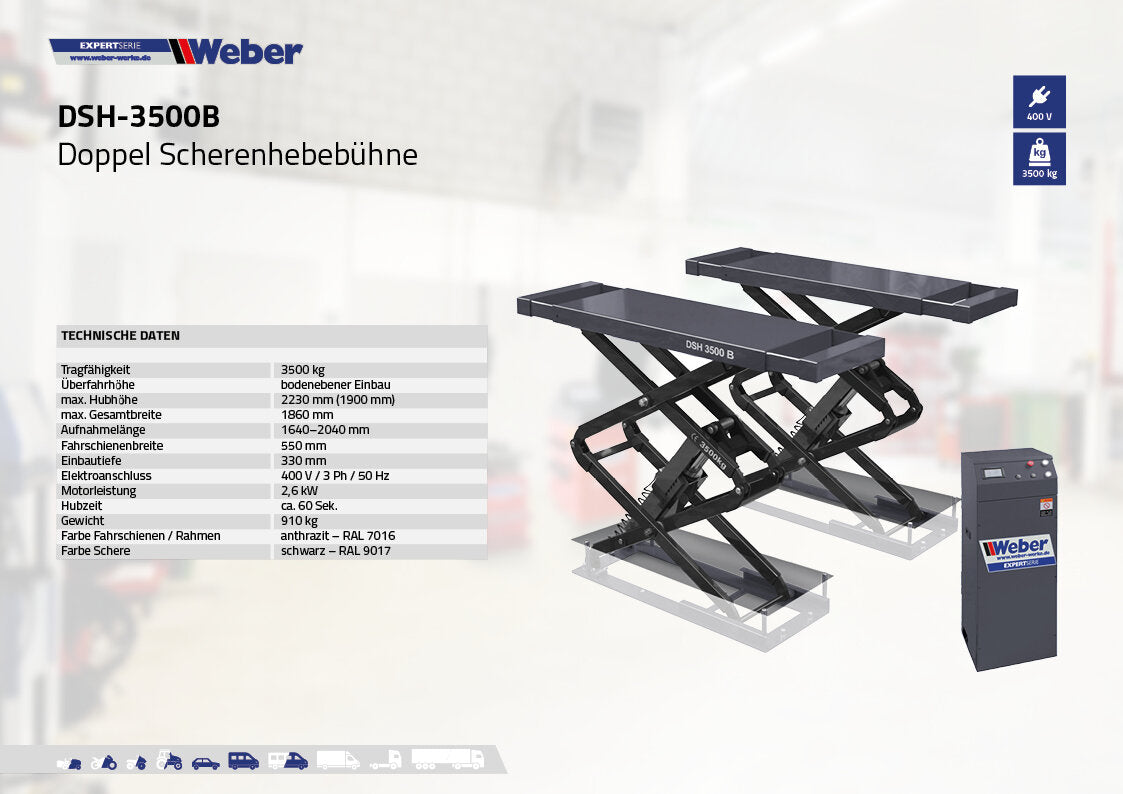

Technical data | |
| Clearance height | flush-to-floor installation |
| Load capacity | 3500 kg |
| Recording length | 1640–2040 mm |
| Track width | 550 mm |
| Color of rails / frame | anthracite – RAL 7016 |
| Engine power | 2.6 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | approx. 60 sec. |
| max. lifting height | 2230 mm (1900 mm) |
| max. overall width | 1860 mm |
| Paint Scissors | black - RAL 9017 |
| Installation depth | 330 mm |
| Weight | 910 kg |
Possible application area
* The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.
Scope of delivery

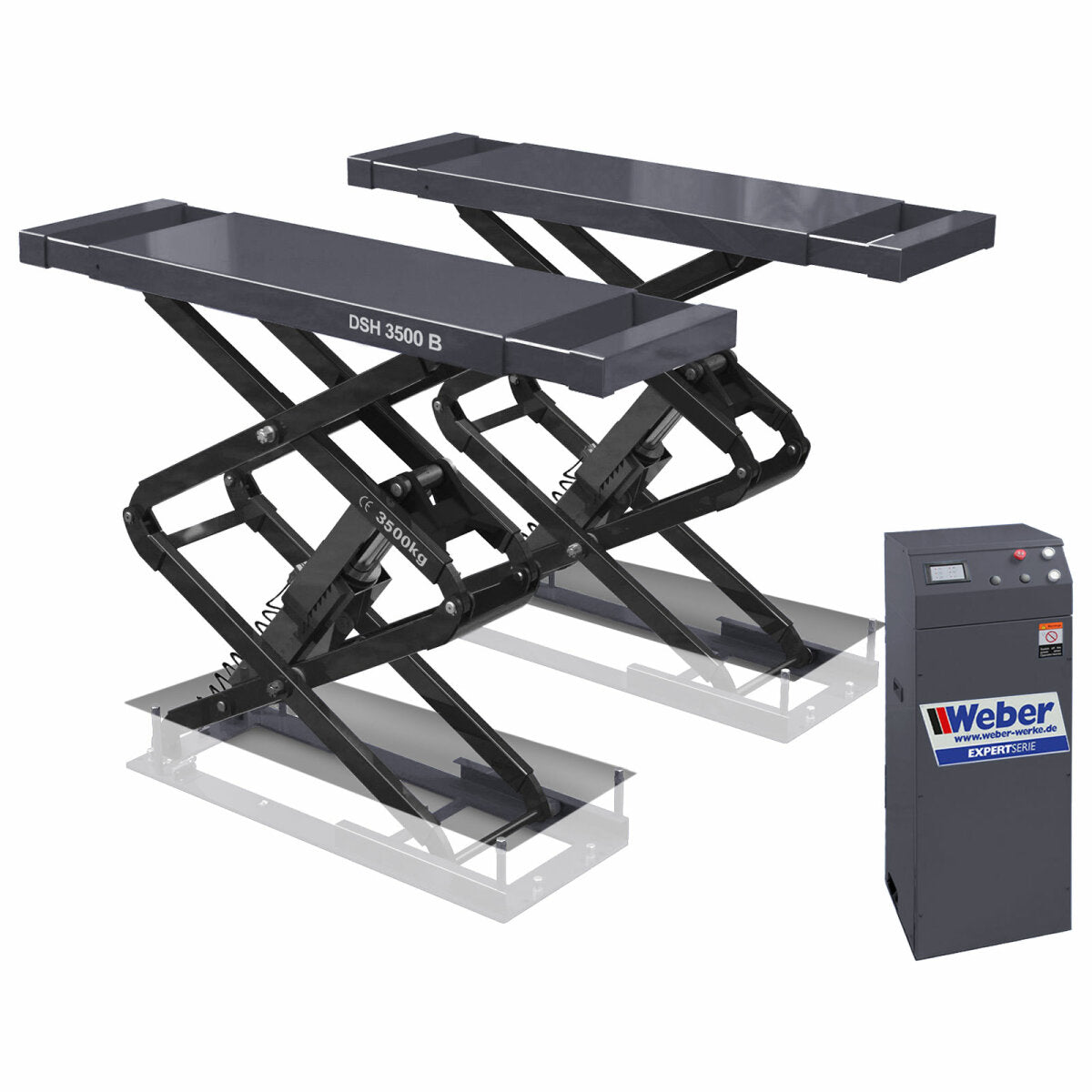

- Double scissor lift as pictured
- 1 set of universal rubber pads
- German assembly and operating instructions including test log.
Shipping dimensions
| Item weight | approx. 1,000.00 kg |
| length | approx. 168.00 cm |
| Width | approx. 60.00 cm |
| Height | approx. 44.00 cm |
| length | approx. 168.00 cm |
| Width | approx. 60.00 cm |
| Height | approx. 44.00 cm |
| length | approx. 55.00 cm |
| Width | approx. 41.00 cm |
| Height | approx. 115.00 cm |
