Weber Expert Series DSH-3000 Double Scissor Lift
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details

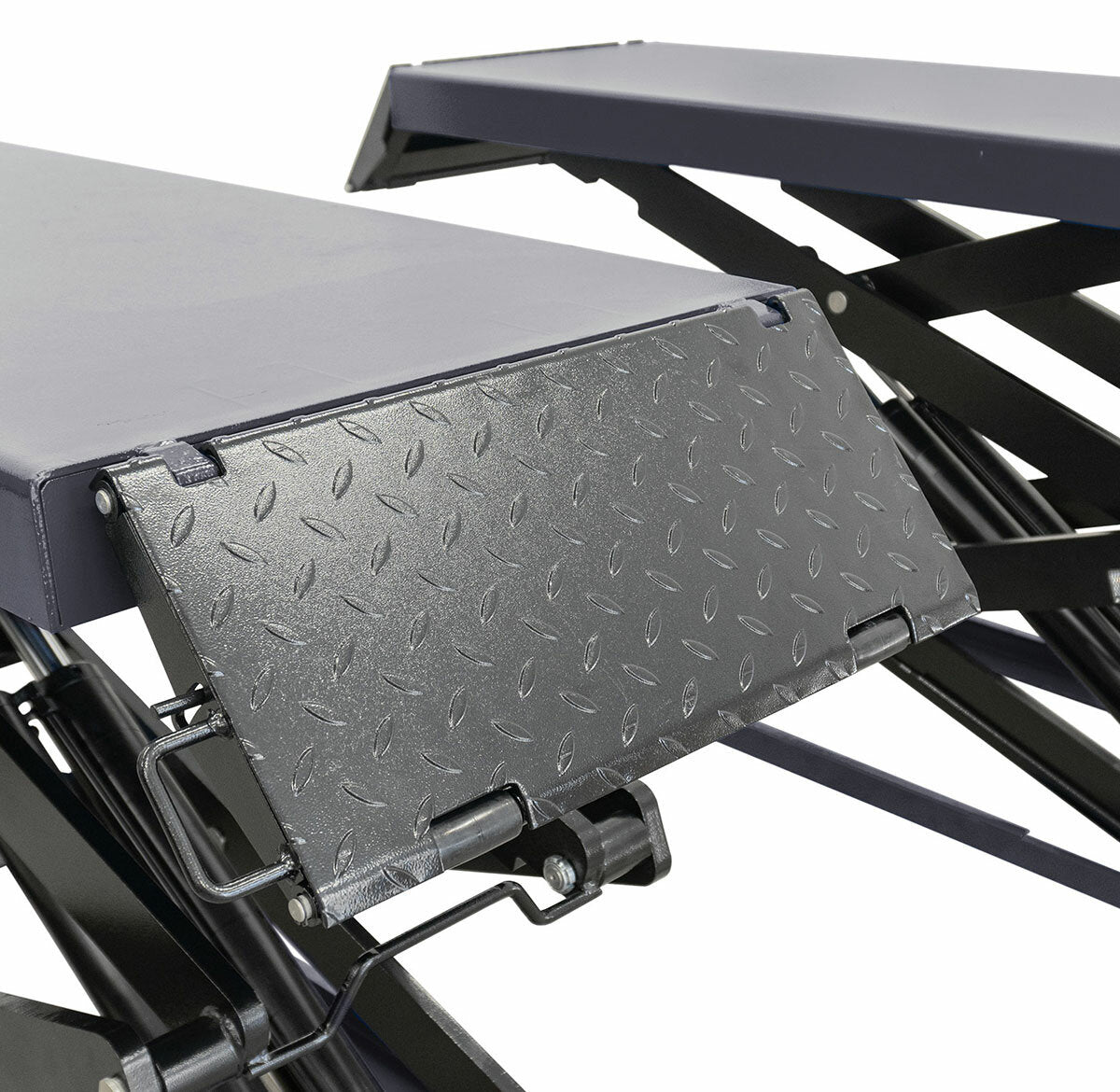

- Vehicle loading area extendable via lockable ramps
- low clearance height
- large lifting height
- absolute freedom of movement
- small space requirement
- no rigid connection between the scissor sections
- Safety and overload valves in the cylinder systems
- electronic synchronization monitoring

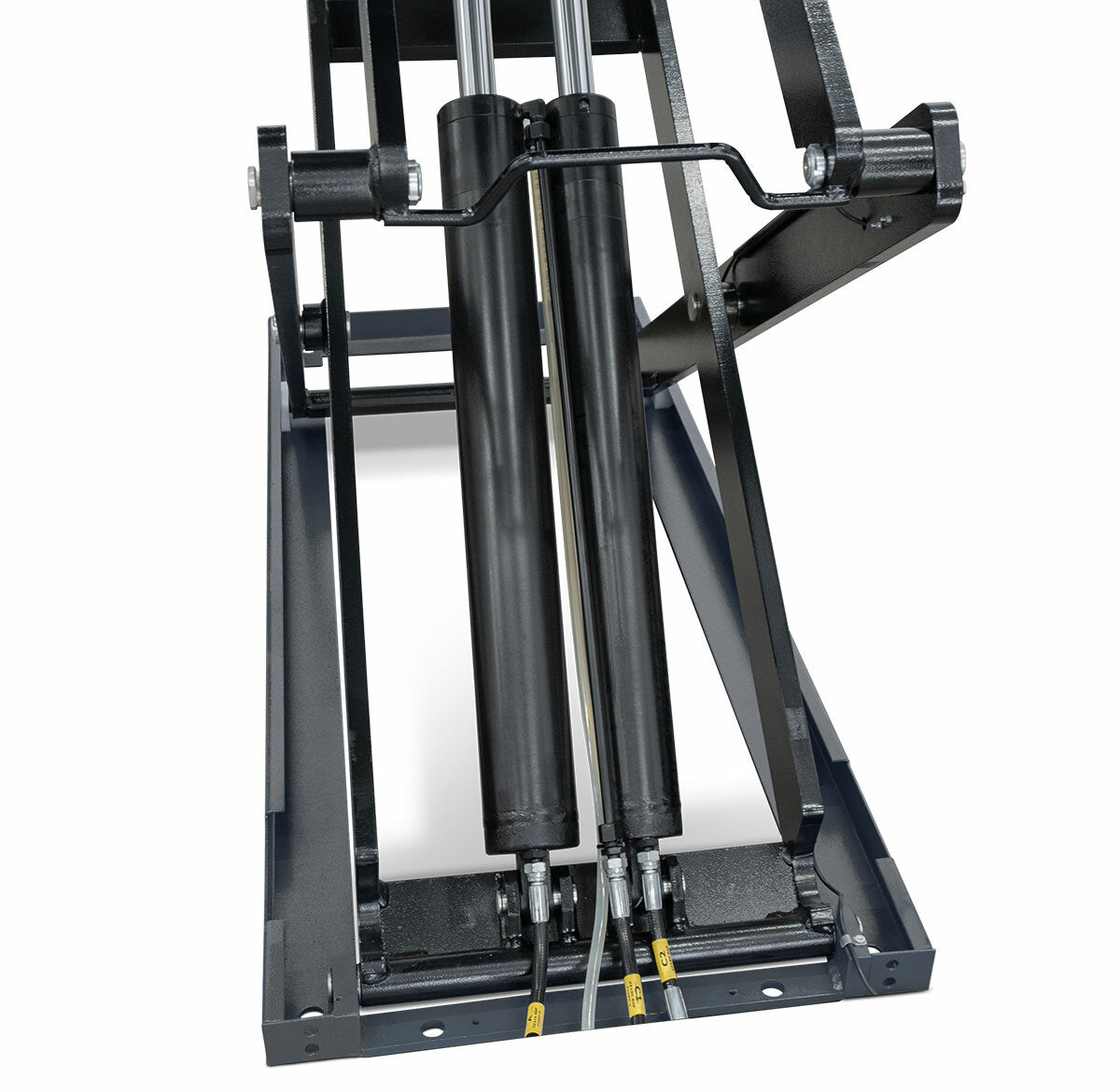

- Double safety through redundant cylinder system and additional electronic synchronization monitoring
- Variable control element with LED status indicator for all functions
- low wear bearing of the scissor joints
- automatic synchronization of the two scissor elements

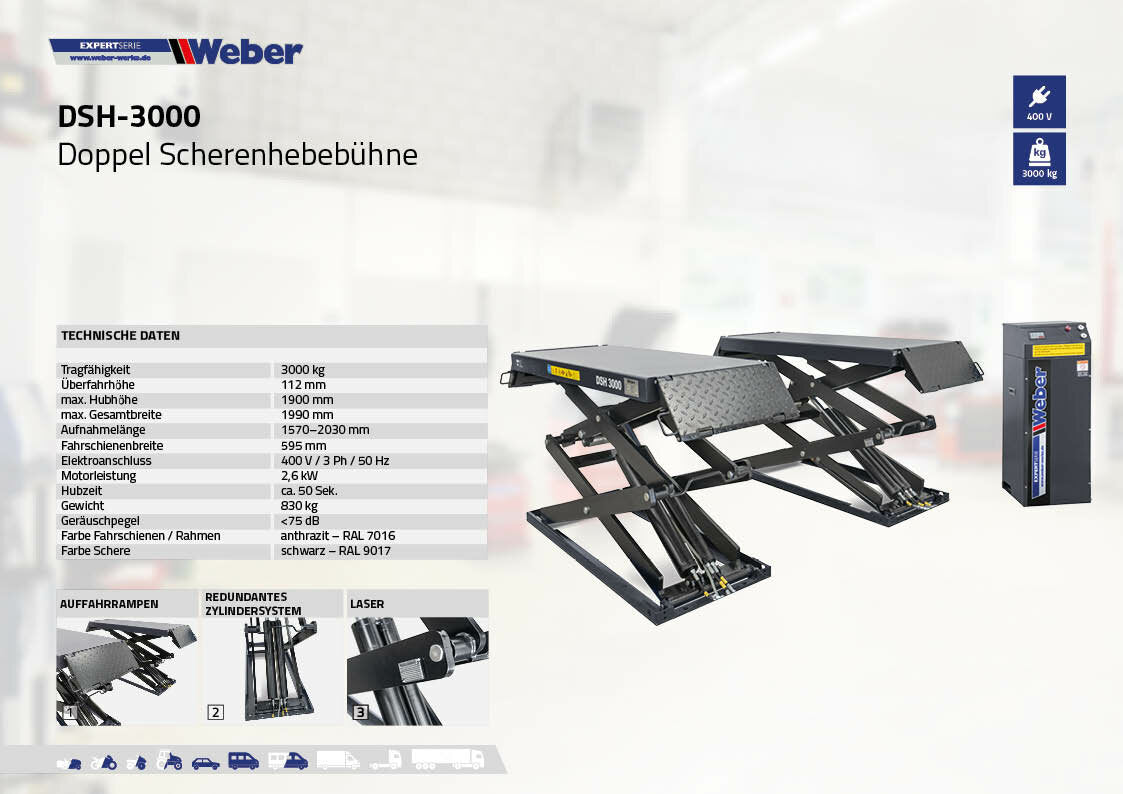

Technical data | |
| Clearance height | 112 mm |
| Load capacity | 3000 kg |
| Recording length | 1570–2030 mm |
| Track width | 595 mm |
| Noise level | <75 dB |
| Engine power | 2.6 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Lift time | approx. 50 sec. |
| Dead weight | 830 kg |
| max. lifting height | 1900 mm |
| max. overall width | 1990 mm |
| Color of rails/frame | anthracite – RAL 7016 |
| Paint Scissors | black – RAL 9017 |
Possible application area
* The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.
Scope of delivery

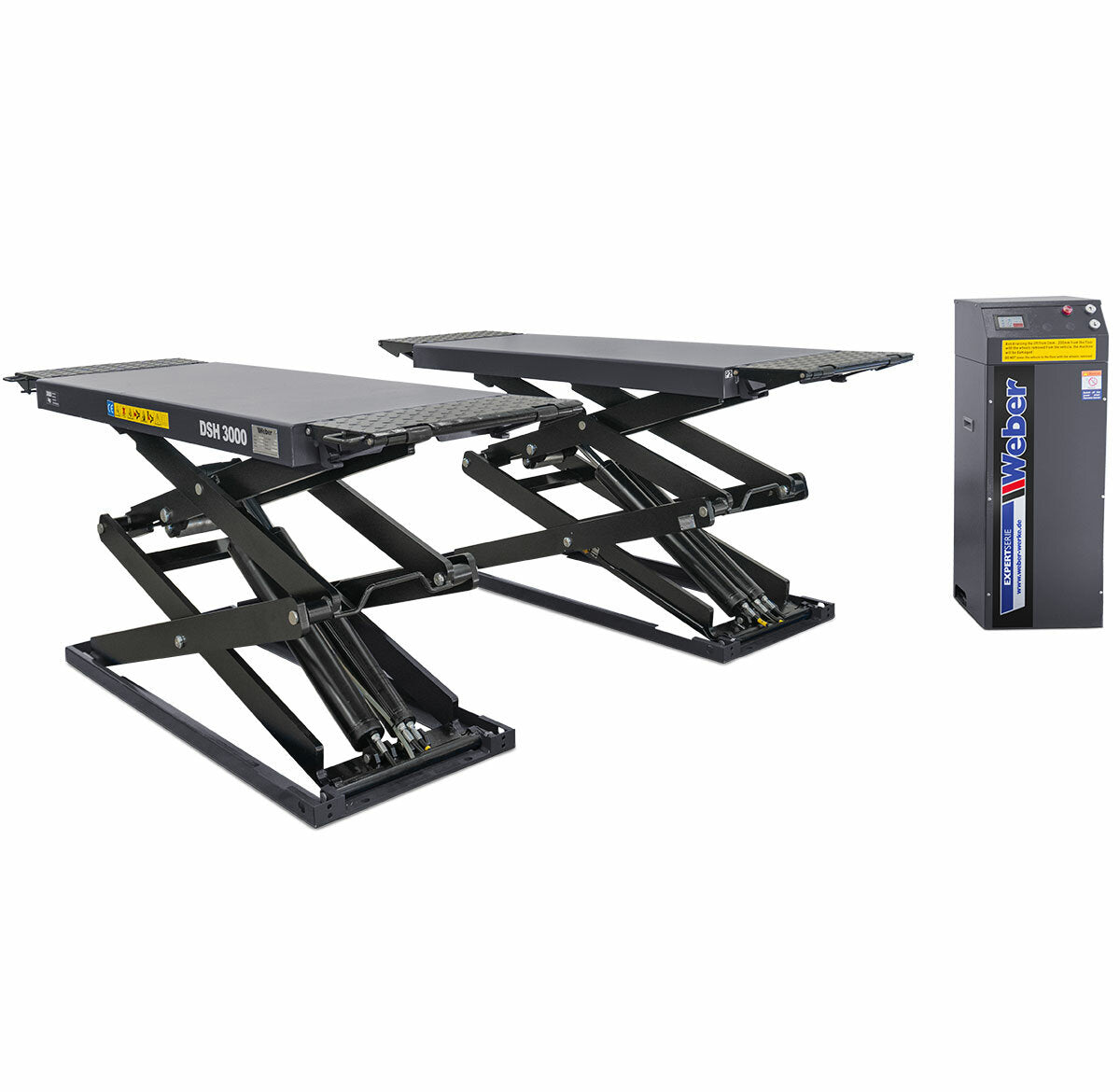

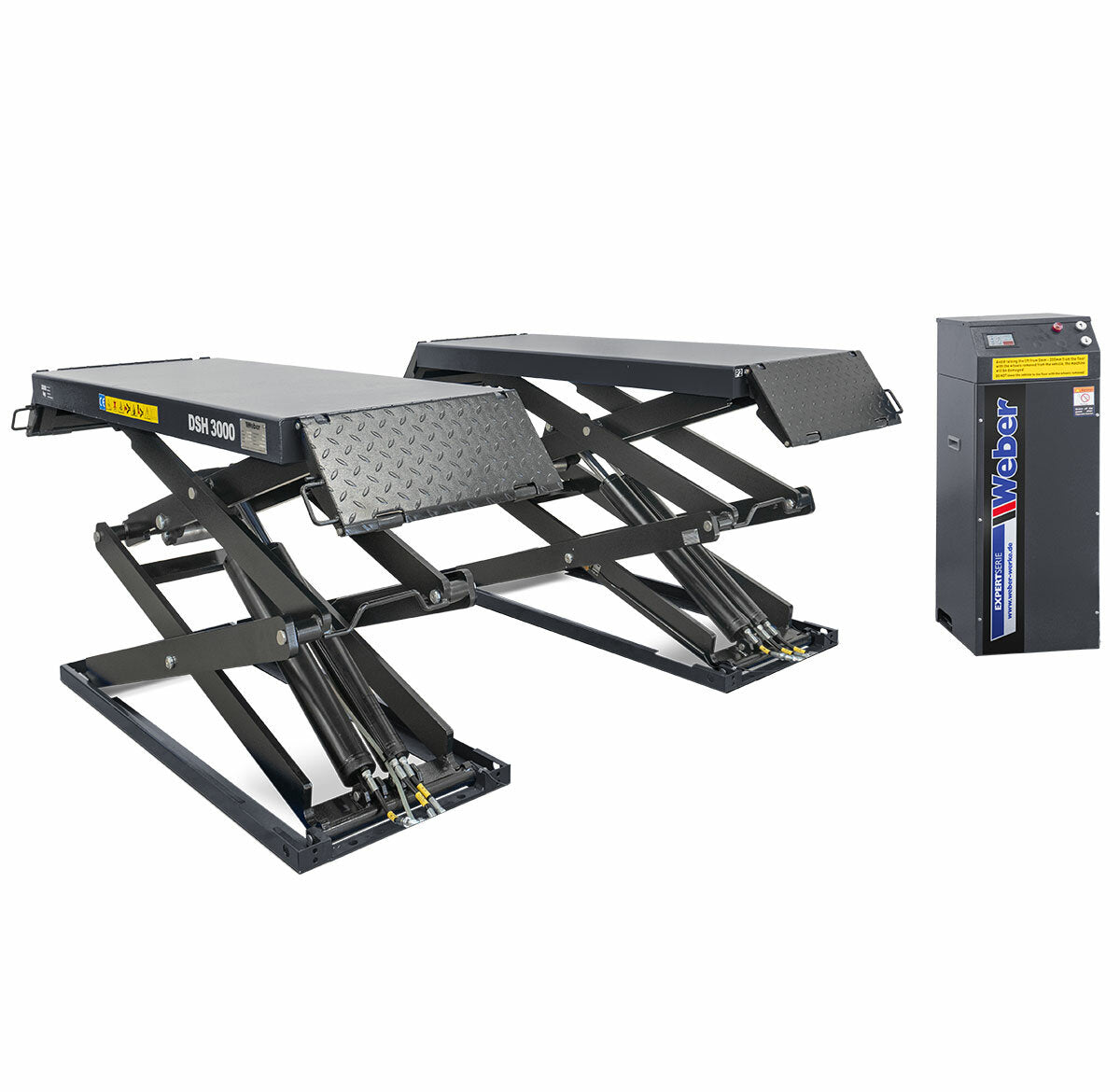

- Double scissor lift with power unit as shown
- 1 set of universal rubber pads
- Supply lines approx. 3500 mm
- Cover plates for supply lines to the control element
- German assembly and operating instructions including test log.
Shipping dimensions
| Shipping dimensions Package 1 | |
|---|---|
| Item weight | approx. 830.00 kg |
| length | approx. 162.00 cm |
| Width | approx. 63.00 cm |
| Height | approx. 33.00 cm |
| Shipping dimensions Package 2 | |
| Item weight | approx. 70.00 kg |
| length | approx. 55.00 cm |
| Width | approx. 41.00 cm |
| Height | approx. 115.00 cm |
