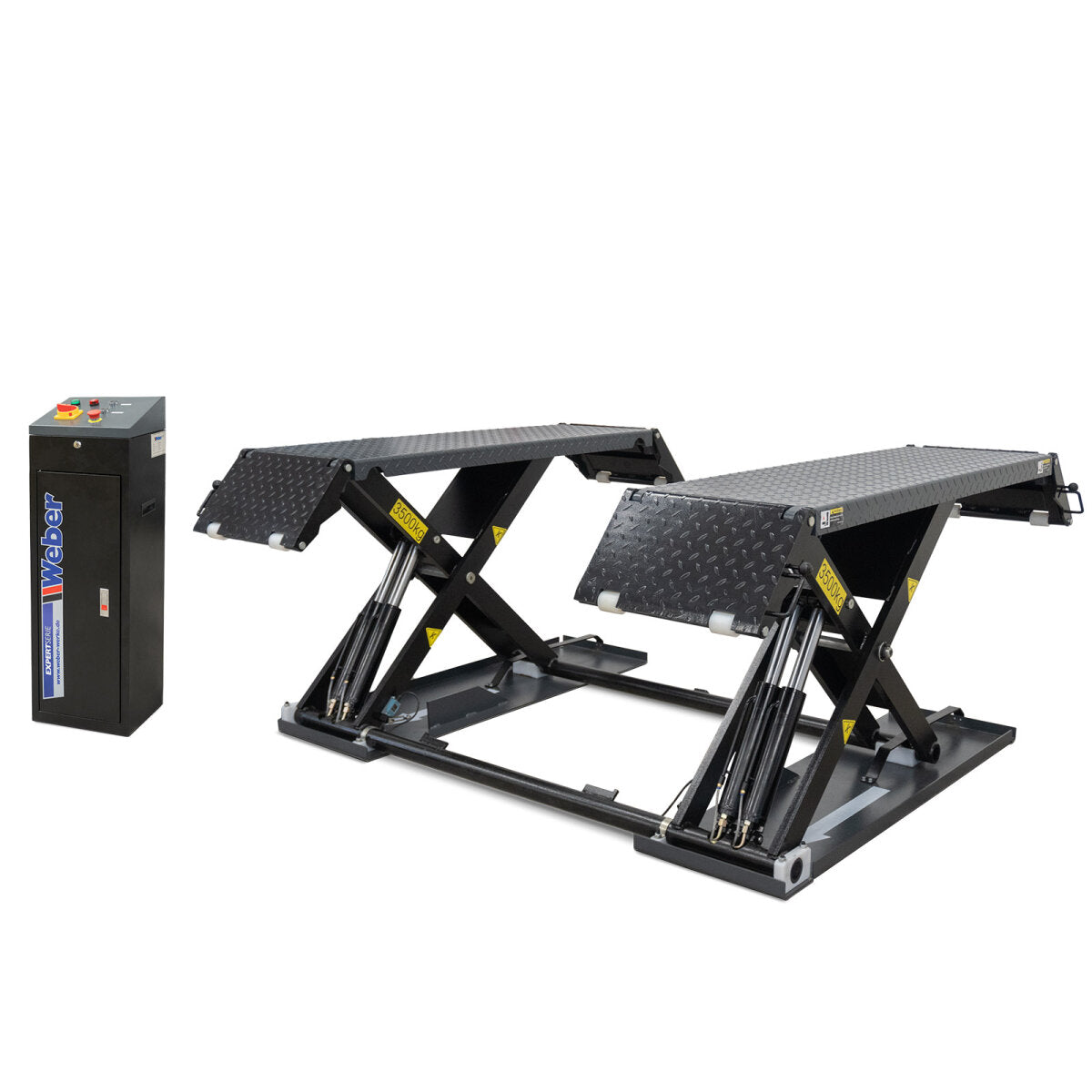

Weber Expert Series DSH-3500 Double Scissor Lift
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
- Fully automatic lifting and lowering at the touch of a button
- Lowering is possible without an additional lifting process, as no mechanical safety catches are installed.

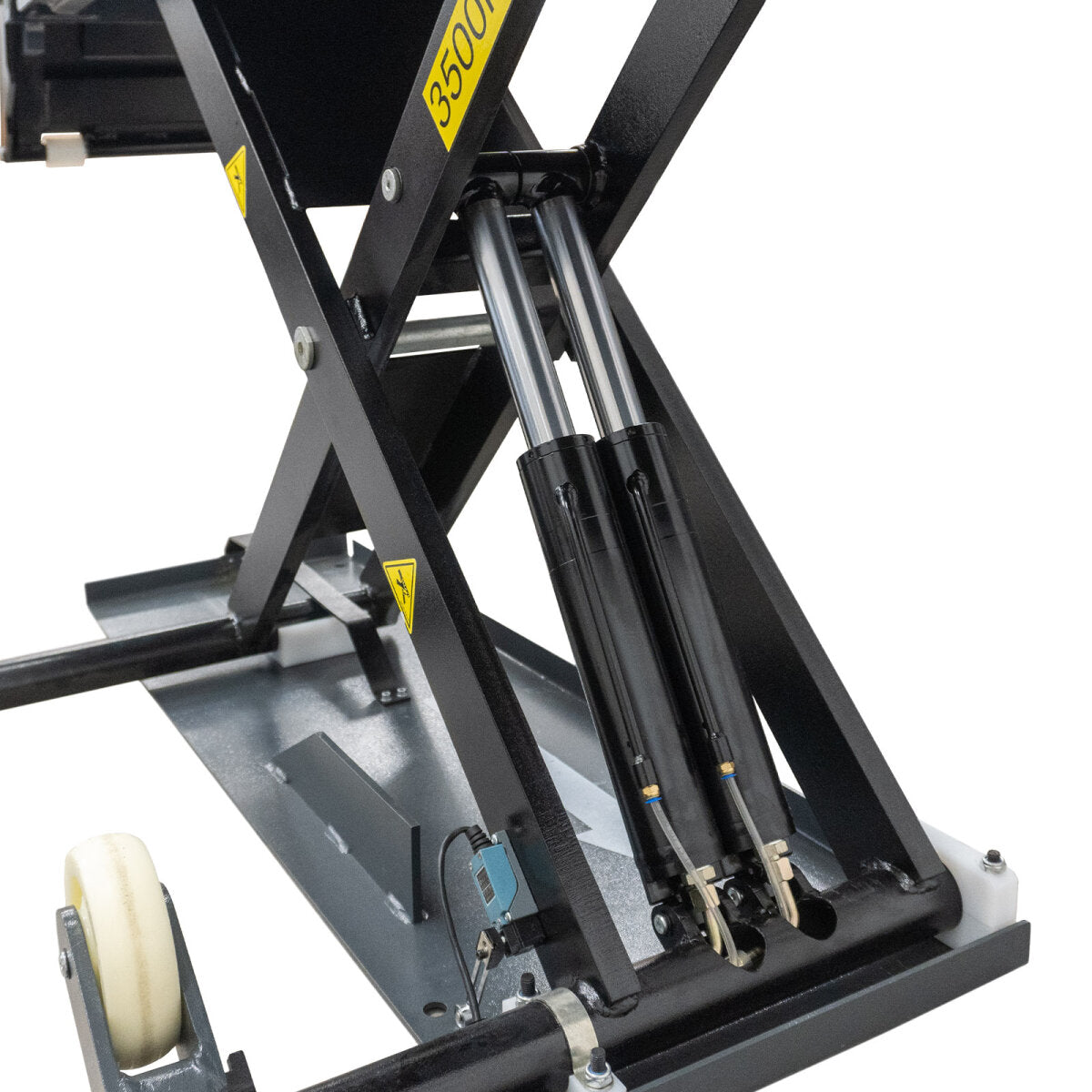

- 4 hydraulic cylinders for powerful lifting, even in the lower range
- Low maintenance and wear, therefore low follow-up costs

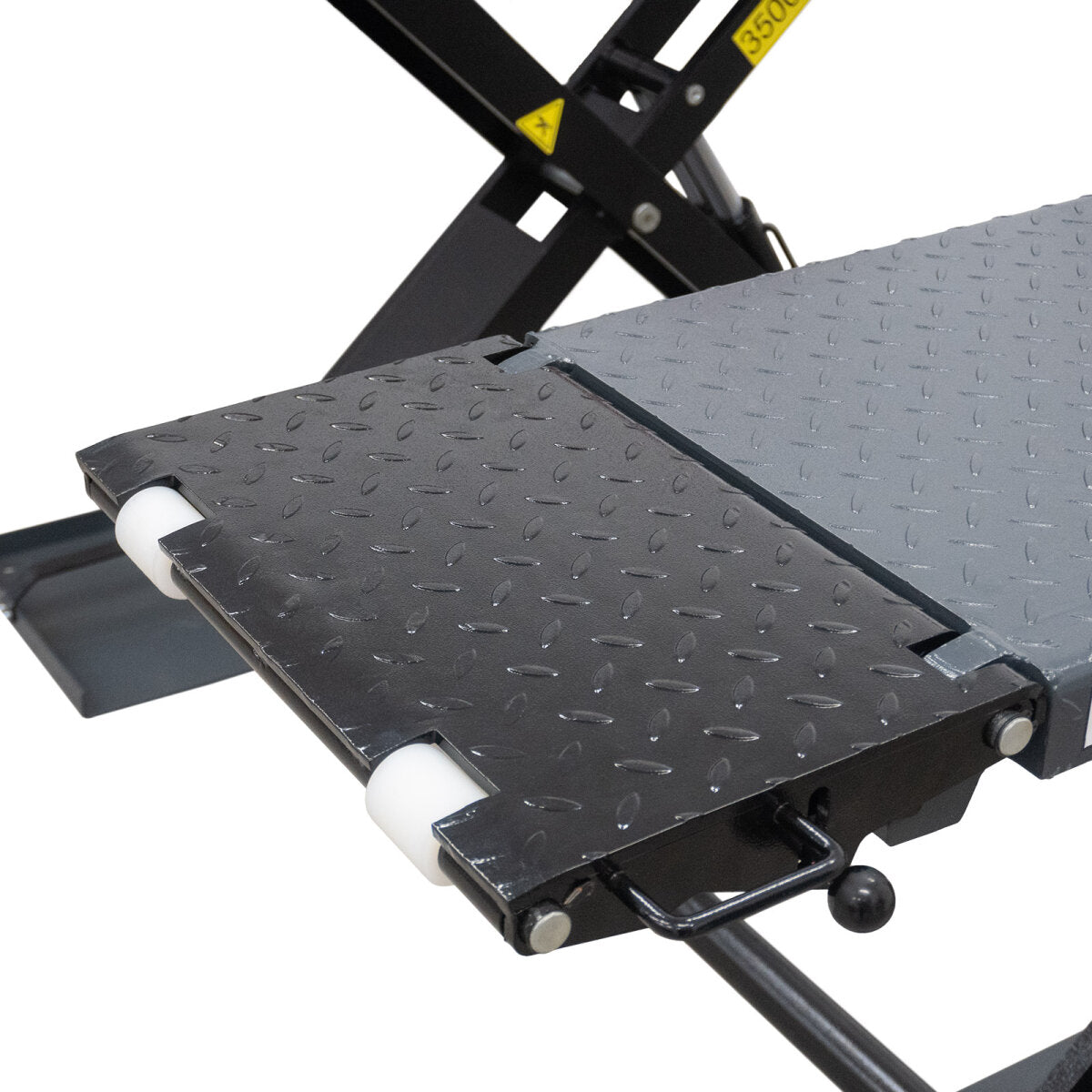

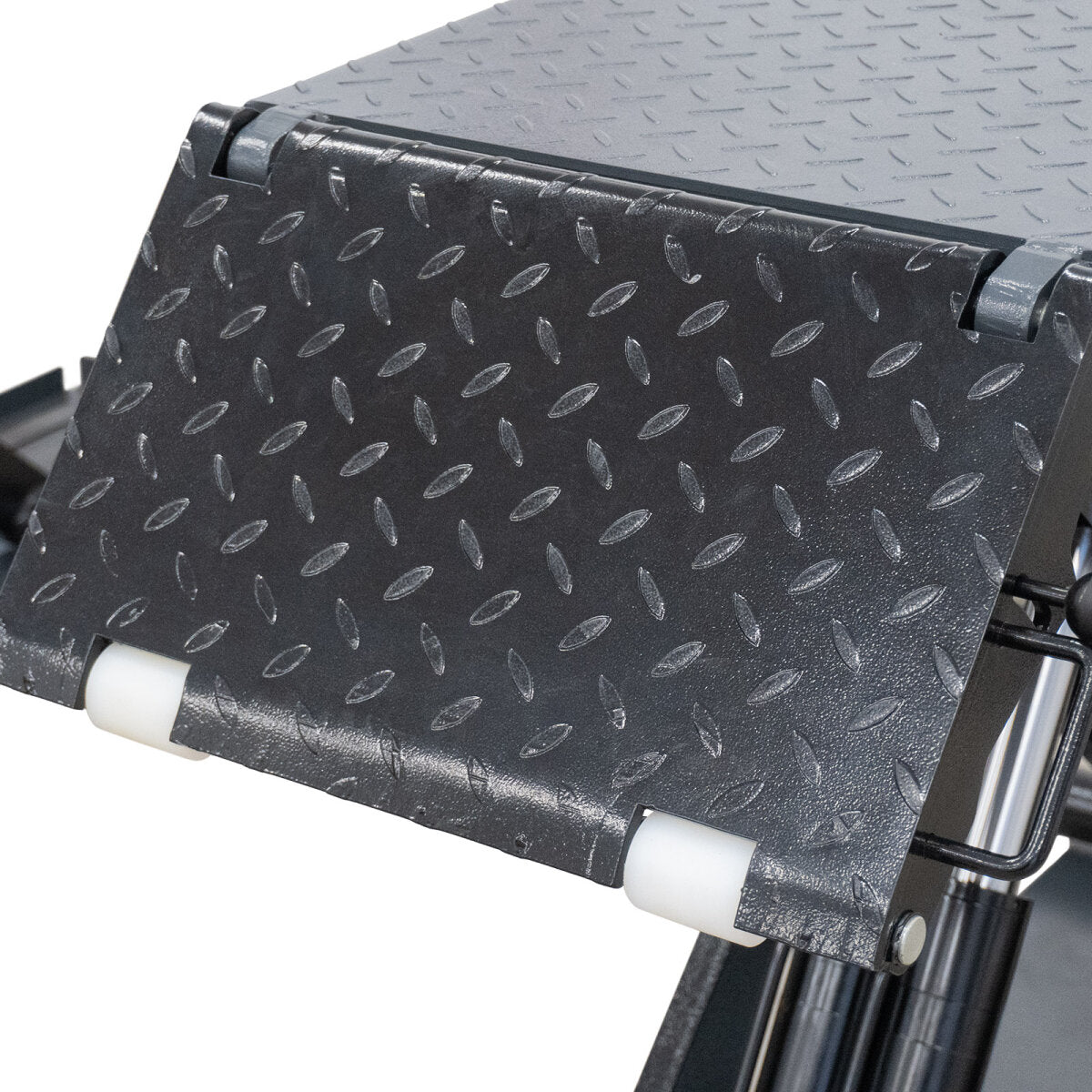

- The access ramps can be locked and loaded as platform extensions.
- Four rubber pads for attaching the vehicle are included in the scope of delivery.
- Rails with a grooved surface
- Easy handling thanks to 24-volt safety push-button control (dead man's control)
- Double safety through redundant hydraulic cylinder system
- electronic stroke limitation via limit switches
- CE stop switch with signal tone in the lower area
- minimum requirements for soil conditions
- Permissible load capacity 3500 kg, the structure of the lifting platform was successfully tested dynamically with a load of 115% of the permissible total weight and statically with 150% of the permissible total weight.

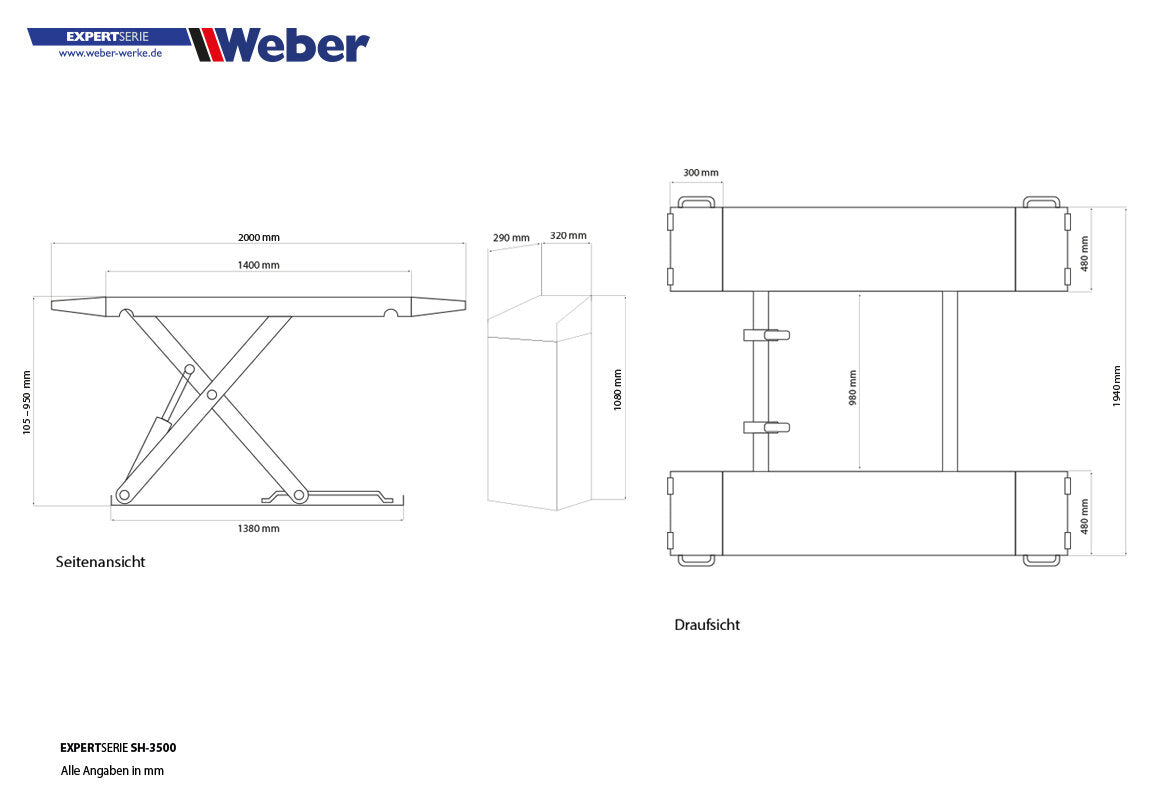

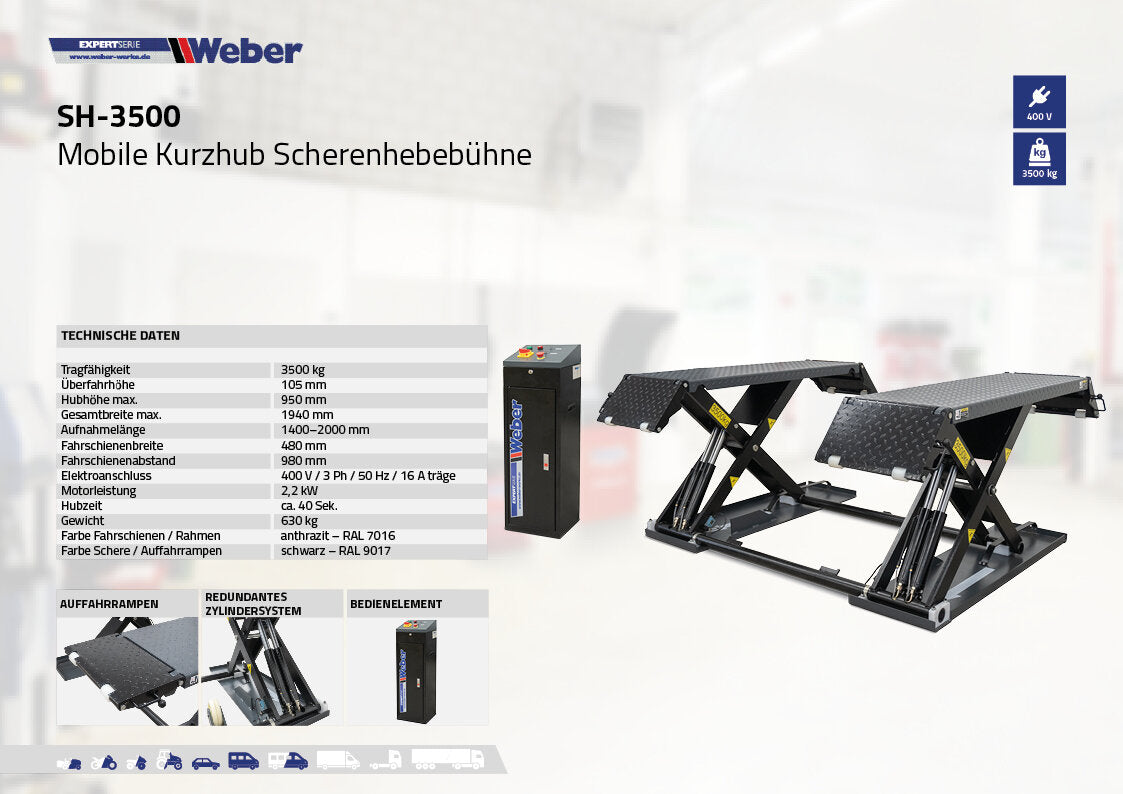

Technical data | |
| Clearance height | 105 mm |
| Load capacity | 3500 kg |
| Recording length | 1400-2000 mm |
| Track width | 480 mm |
| track spacing | 980 mm |
| Maximum lifting height. | 950 mm |
| Color of rails / frame | anthracite – RAL 7016 |
| Paint Scissors / Ramps | black – RAL 9017 |
| Engine power | 2.2 kW |
| Electrical connection | 400 V / 3 Ph / 50 Hz / 16 A slow |
| Lift time | approx. 40 sec. |
| Maximum total width. | 1940 mm |
| Weight | 630 kg |
Product videos
Possible application area
* The applications for our Lifting Platforms are highly diverse due to the wide variety of vehicle models and their lifting points. Therefore, please note that the application pictograms provided are for guidance only and do not reflect the actual lifting capacity of our products. Toolwiser.com accepts no liability for the compatibility of all models within the respective vehicle class. Should you have any questions or uncertainties regarding the selection of a suitable product, we will be happy to advise you. Tel: +46 10 888 78 00 or support@toolwiser.com.
Scope of delivery

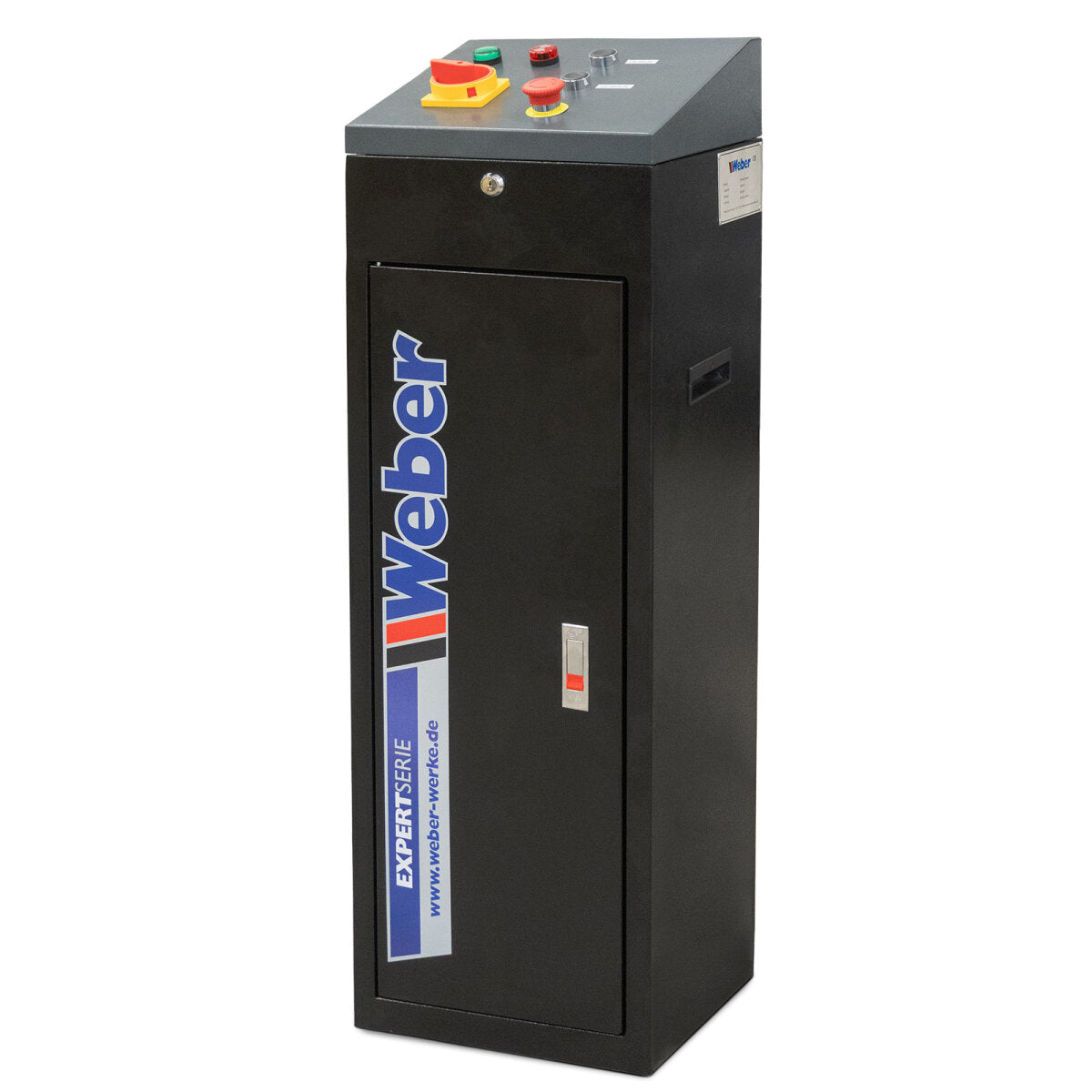

- Scissor lift with power unit box as shown
- 4 rubber pads for mounting the vehicles
- Mobile kit for moving the lifting platform, consisting of 2x front casters for hooking on and 1x trolley jack
- German assembly and operating instructions including test log.
Shipping dimensions
| Item weight | approx. 560.00 kg |
| length | approx. 160.00 cm |
| Width | approx. 200.00 cm |
| Height | approx. 65.00 cm |
