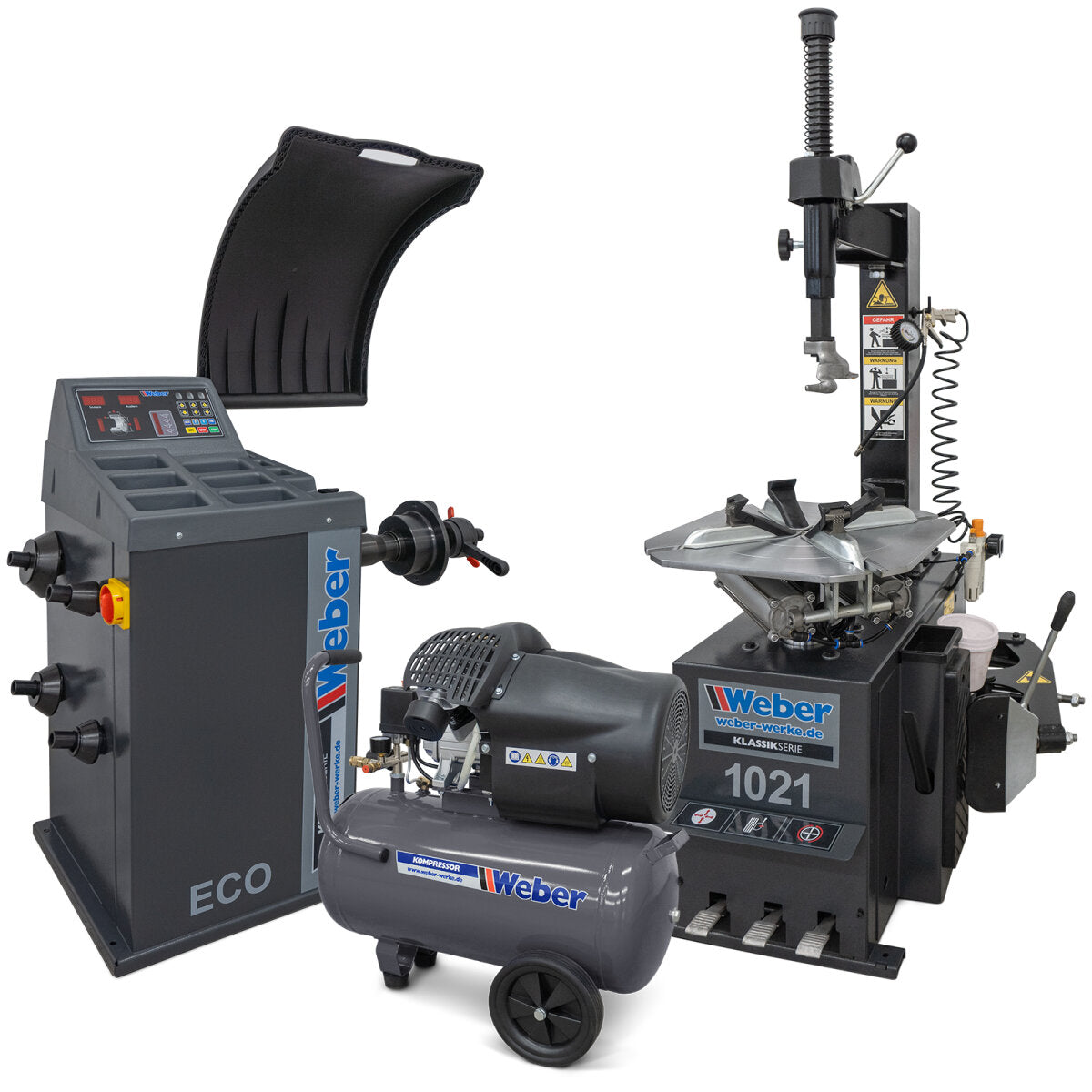

Weber Tire Machine 1021 ECO + Wheel Balancer + 50L Compressor 230V - Complete Workshop Package
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Tire mounting machine for rims up to 21"
The Weber Klassik Series 1021 tire changer is known for its reliability and, thanks to its space-saving design, is ideal for small workshops, taxi companies, and private users. The laterally swiveling mounting arm with eccentric clamping allows for quick and easy adjustment of the mounting head. For easier mounting and dismounting, we recommend the optional auxiliary mounting arm , which simplifies holding the tire bead down.
- side-swiveling mounting arm
- Eccentric clamping of the mounting head
- Clamping jaws made of high-strength steel for securely clamping the rim from the inside and outside.
- Self-centering clamping plate for rim sizes up to 21"
Wheel balancing machine for rims up to 24"
The Weber Klassik "ECO" series wheel balancer combines robust technology with a compact design and ease of use, making it ideal for small workshops, fleet managers, and private users. The balancer features a program for balancing steel rims and four additional programs for aluminum rims up to a maximum diameter of 24". Both static and dynamic balancing are possible.
- static and dynamic balancing
- 4 aluminum wheel programs and one steel wheel program
- Automatic balancing process with wheel braking
- Integrated software for self-testing and calibration
- Optimization function for weight display <5 g
Workshop compressor 230 V / 10 bar / 50 l tank
The compact Weber air compressor with a 10 bar operating pressure and a 50-liter tank is perfect for use in the workshop, garage, or around the home. With its oil-lubricated, direct-drive, 2-cylinder unit and high working pressure, it ensures maximum performance and reliability despite its space-saving design. Thanks to its sturdy plastic wheels and convenient carrying handle, the air compressor is mobile and can be used flexibly. The pressure switch and pressure regulator allow for easy and precise adjustment of the working pressure, simplifying operation. The integrated pressure gauge enables quick and easy pressure readings. The quick-release coupling makes it easy to connect all kinds of pneumatic tools, while a safety valve and condensate drain plug on the tank provide the necessary safety.
- direct-drive twin-cylinder compressor
- powerful and robust
- high work pressure
- Mobile thanks to stable wheels
- Ready for connection, equipped with CE safety plug
- with adjustable pressure reducer and manometer
- Quick coupling NW 7.2
- Condensate drain valve on the tank
- TÜV-certified safety valve
- Additional compressors and air dryers are available upon request.
Technical data – Classic tire mounting machine 1021 |
|
| Air requirements | 8–10 bar |
| max. wheel width | 230 mm |
| max. wheel diameter | 920 mm |
| noise level | <70 dB |
| Engine power | 1.1 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Dead weight | approx. 160 kg |
| Rim tension (outer) | 10–18" |
| Inner rim tension | 12–21" |
| Push-off force | 2500 kg |
Technical data – Classic wheel balancer "ECO" |
|
| Rim diameter | 10–24" |
| max. wheel weight | 65 kg |
| noise level | <70 dB |
| Engine power | 0.25 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Dead weight | approx. 85 kg |
| Rim width | 1.5–20" |
| Wheel diameter | 960 mm |
| Impact velocity | 150 rpm. |
| Balancing time | approx. 8 sec. |
| accuracy | ± 1 g |
| Diameter of balancing shaft | 36 mm |
Technical specifications – Workshop compressor |
|
| Engine power | 2.2 kW |
| Electrical connection | 230 V / 1 Ph / 50 Hz |
| Maximum operating pressure | 10 bar |
| cylinder | 2 |
| average air output | 392 l/min.l |
| Compressor speed | 2850 rpm. |
| Tank volume | 50 liters |
| Noise emissions | 96 dB(A) |
| Dimensions L x W x H | 770 x 385 x 740 mm |
| Dead weight | 38.5 kg |
Product videos
Scope of delivery
- Tire mounting machine as pictured
- Bucket for assembly paste, tire inflator and tire iron
- 4x plastic protectors for clamping jaws
- German assembly and operating instructions
- Wheel balancing machine as pictured
- Calibration weight, rim width gauge, weight pliers, 4 balancing cones, quick-release nut, aluminum rim attachment for quick-release nut
- Workshop compressor 230 V / 10 bar / 50 l tank
- German assembly and operating instructions
Shipping dimensions
| Shipping dimensions Package 1 | |
|---|---|
| Item weight | approx. 160.00 kg |
| length | approx. 100.00 cm |
| Width | approx. 80.00 cm |
| Height | approx. 95.00 cm |
| Shipping dimensions Package 2 | |
| Item weight | approx. 85.00 kg |
| length | approx. 58.00 cm |
| Width | approx. 85.00 cm |
| Height | approx. 118.00 cm |
| Shipping dimensions Package 3 | |
| Item weight | approx. 42.00 kg |
| length | approx. 77.00 cm |
| Width | approx. 39.00 cm |
| Height | approx. 74.00 cm |
